Ozito OBD2 Instruction Manual

Ozito OBD2 Instruction Manual

Automotive scan tool

Advertisement

AUTOMOTIVE
SCAN TOOL
OBD2 CODE READER
INSTRUCTION MANUAL
SPECIFICATIONS
Support:
OBD2 Compliant Vehicles
Input:
8V to 25V
Operating Temp.:
0°C~50°C
Storage Temp.:
–20°C~70°C
Display:
128 x 64mm Backlit LCD
Weight:
0.15kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 25 Fox Drive Dandenong South, Victoria, Australia 3175.
OBD2/EOBD Code Reader
OBDII
[
] = SetuP
[
] = Scan
AUTO
SCANNER
WARRANTY
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase. If
a product is defective it will be replaced in accordance with the terms of this warranty. Warranty
excludes consumable parts, for example: .
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT
OBD2/EOBD Code Reader
OBDII
[
] = SetuP
[
] = Scan
AUTO
SCANNER

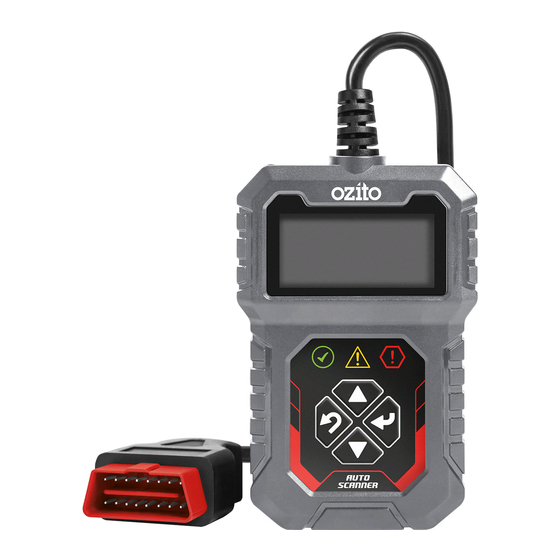

Automotive Scan Tool
OAST-050
0921

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBD2 and is the answer not in the manual?

Questions and answers

Mike Galea
May 3, 2025

Is the 3l Diesel Fiat Ducato scan compliant?

1 comments:
Mr. Anderson
May 17, 2025

The Ozito OBD2 scan tool supports OBD2-compliant vehicles. To determine compatibility with the 3L Diesel Fiat Ducato, the vehicle must be OBD2 compliant. If the Fiat Ducato is OBD2 compliant, then the Ozito OBD2 scan tool is compatible for scanning.

This answer is automatically generated

Summary of Contents for Ozito OBD2

  • Page 1 STANDARD EQUIPMENT OBD2/EOBD Code Reader AUTOMOTIVE OBDII ] = SetuP ] = Scan SCAN TOOL AUTO SCANNER Automotive Scan Tool OBD2 CODE READER INSTRUCTION MANUAL SPECIFICATIONS Support: OBD2 Compliant Vehicles Input: 8V to 25V OBD2/EOBD Code Reader Operating Temp.: 0°C~50°C Storage Temp.:...
  • Page 2: Know Your Product

    1. Backlit LCD 5. Up Button 2. Red LED 6. Back Button 1. Backlit LCD 3. Yellow LED 7. OBD2, 16-Pin Connector Indicates setup, scan, menu options and test results. 4. Green LED 8. Down Button 9. OK Button 2. Red LED Indicates there is a problem in one or more of the vehicle’s...
  • Page 3: General Information

    These monitors are termed non-continuous monitors and applicable to the vehicle to the “ready” condition. The purpose are listed below: of completing an OBD2 drive cycle is to force the vehicle to run 1. EGR System 2. O2 Sensors its onboard diagnostics.
  • Page 4: Operation

    READ AND UNDERSTAND THE WARNINGS TOOL WITH IGNITION ON OR ENGINE RUNNING. BEFORE SETUP. The automotive scan tool is used to check engine of most OBD2 Setup compliant vehicles from 1996 onwards with standard sized 16-Pin 1. Connect OBD2 16-pin connector into the DLC.
  • Page 5: Diagnostic Menu

    2. Wait for the menu to appear. AUTO SCANNER SCANNER SCANNER A sequence of messages AUTO 2. Press “OK” button displaying the OBD2 protocols SCANNER Entering System Monitor Status 2/EOBD Code Reader and progress bar will be Read Codes ### ###...
  • Page 6 Press “OK” button to • I/M Readiness: Used to check the operations of the Emission confirm. If the codes are cleared System on OBD2 compliant vehicles. successfully, an “Erase Done!” CAUTION - By clearing trouble codes you also clear the readiness confirmation message shows on status for the individual emission system readiness tests.
  • Page 7: Troubleshooting

    1. Verify that the ignition is ON or the engine is running. completed its diagnostic testing. “INC” -- Indicates that a particular monitor being checked has not 2. Check if the scan tool’s OBD2 connector is securely connected to the vehicle’s DLC. completed its diagnostic testing.
  • Page 8: Maintenance

    - Always lock up tools and keep them out of the reach of children. - Do not expose OBD2 automotive Scan tool to rain, snow or wet conditions. - Keep the OBD2 automotive Scan tool dry, clean and free from oil, water and grease. - Stay clear of hot engine and car parts.
