- Page 1 CAN-T-Connector Manual • Doc. No.: C.1311.21 / Rev. 1.3 Page 1 of 22 esd electronics gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 The information in this document has been carefully checked and is believed to be entirely reliable. esd makes no warranty of any kind with regard to the material in this document, and assumes no responsibility for any errors that may appear in this document. In particular descriptions and technical data specified in this document may not be constituted to be guaranteed product features in any legal sense.
- Page 3 2.1.1 - Figures revised (n.c. inserted) 2.1.2 2018-01-16 2.1.3 Description of the usage of the CAN-T-Connector and Figure revised Technical details are subject to change without further notice. CAN-T-Connector Manual • Doc. No.: C.1311.21 / Rev. 1.3 Page 3 of 22...
- Page 4 This NOTICE statement contains the general mandatory sign and gives information that must be heeded and complied with for a safe use. INFORMATION INFORMATION Notes to point out something important or useful. Page 4 of 22 Manual • Doc. No.: C.1311.21 / Rev. 1.3 CAN-T-Connector...
-
Page 5: Safety Instructions
● The device is a built-in component. It is essential to ensure that the device is mounted in a way that cannot lead to endangering or injury of persons or damage to objects. ● Do not use damaged or defective cables to connect the CAN-T-Connector and follow the CAN wiring hints in chapter: "Correct Wiring of Electrically Isolated CAN Networks". -
Page 6: Table Of Contents
4.1 Termination.......................... 18 Electrical Grounding......................19 Short Circuit in CAN Wiring....................19 CAN_H/CAN_L-Voltage ......................19 CAN Transceiver Resistance Test..................20 Support by esd........................20 Declaration of Conformity......................21 Order Information........................22 Page 6 of 22 Manual • Doc. No.: C.1311.21 / Rev. 1.3 CAN-T-Connector... -
Page 7: Overview

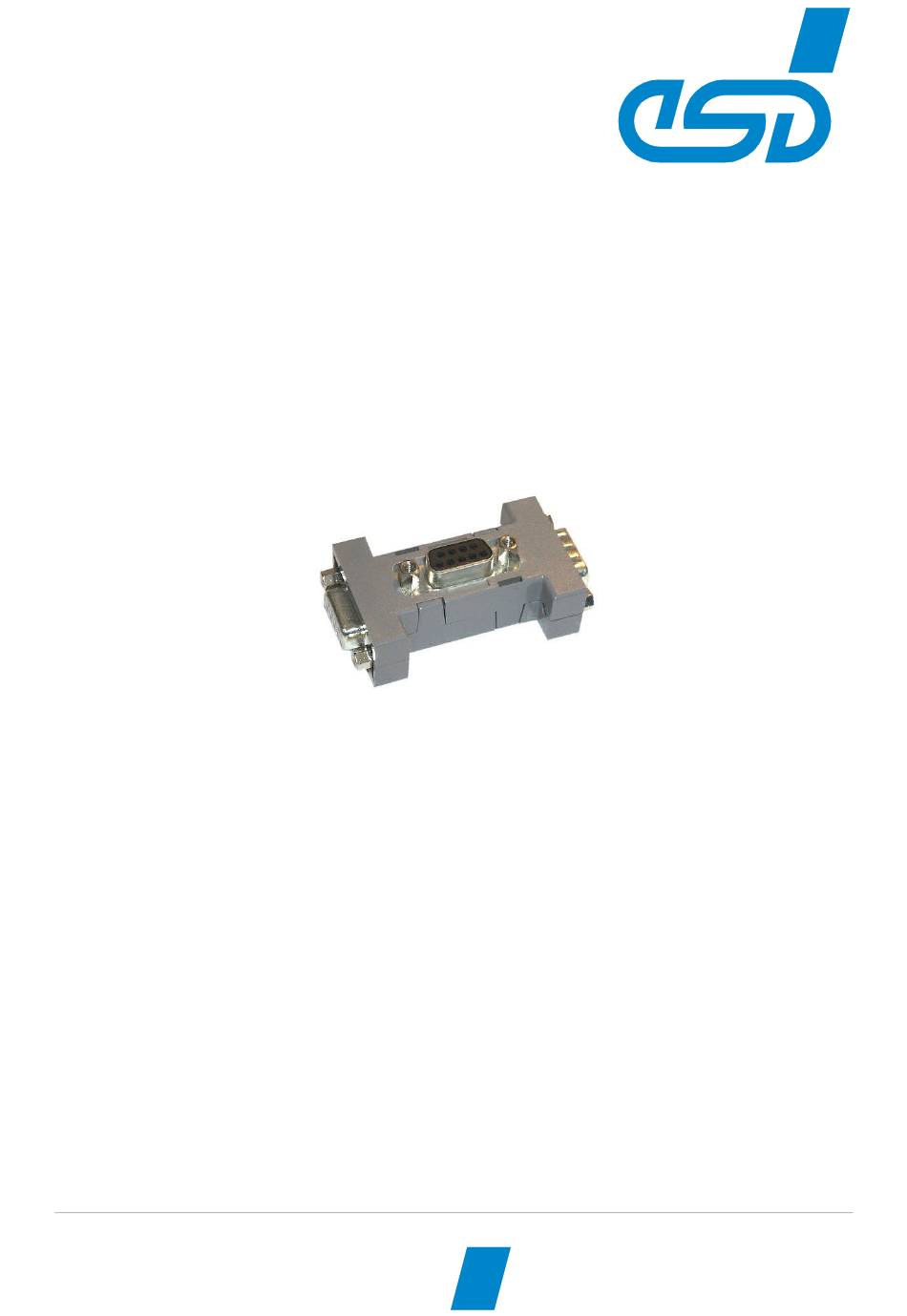

Overview 1. Overview The CAN-T-Connector with 2x DSUB9 female contact and 1x DSUB9 male contact is designed for the correct connection of modules to a bus system e.g. CAN. 1.1 View Fig. 1: CAN-T-Connector view 1.2 Dimensions 3 5 . 0 6 4 . -
Page 8: Connector Assignments
2. Connector Assignments 2.1 CAN INFORMATION The signals of the CAN-T-Connector are connected through. The pins of the three connectors are assigned with the same signals! The pin assignment depends on the signals connected. Connector: 9-pin DSUB connector 1x male and 2x female... -
Page 9: Shielding General Description
... not connected Fig. 3: Internal connection of the CAN-T-Connector In the CAN-T-Connector the metal shells of the DSUB connectors are not connected. Thus, the metal shells are not connected through the CAN-T-Connector, see Figure 3. 2.1.2 Usage in Light Industrial Environment (Single Twisted Pair Cable) -
Page 10: Usage In Heavy Industrial Environment (Double Twisted Pair Cable)
2.1.3 Usage in Heavy Industrial Environment (Double Twisted Pair Cable) When using the esd’s CAN-T-Connector type C.1311.03 with single shielded double twisted pair cables in heavy industrial environment applications, please note that the shield potential of the conductive DSUB housing is not looped through this CAN-T-connector type (see also chapter “Device Cabling”... -
Page 11: Correct Wiring Of Electrically Isolated Can Networks
Therefore the practical maximum number of nodes, bus length and stub length are typically much lower. esd has concentrated her recommendations concerning CAN wiring on the specifications of the ISO 11898-2. Thus this wiring hints forgoes to describe the special features of the derived standards CANopen, ARINC825, DeviceNet and NMEA2000. -
Page 12: Light Industrial Environment (Single Twisted Pair Cable)
3.2.1 General Rules NOTICE esd grants the EU Conformity of the product, if the CAN wiring is carried out with at least single shielded single twisted pair cables that match the requirements of ISO 11898-2. Single shielded double twisted pair cable wiring as described in chapter 3.3. ensures the EU Conformity as well. -
Page 13: Cabling
● main CAN bus line via short cable stubs. This is normally realised by so called T- connectors. esd offers the CAN-T-Connector (Order No.: C.1311.03) If a mixed application of single twisted and double twisted cables is unavoidable, take care ●... -
Page 14: Heavy Industrial Environment (Double Twisted Pair Cable)
CAN_L CAN_GND wire shield n.c. n.c. connector case connector case Shield n.c. = not connected earth (FE) Figure 8: CAN wiring for heavy industrial environment Page 14 of 22 Manual • Doc. No.: C.1311.21 / Rev. 1.3 CAN-T-Connector... -
Page 15: Device Cabling
CAN bus line via short cable stubs. This is normally realised by so called T- connectors. When using esd's CAN-T-Connector (order no.: C.1311.03) it should be noted that the shield potential of the conductive DSUB housing is not looped through this T- Connector type. -
Page 16: Electrical Grounding
5000 Table 1: Recommended cable lengths at typical bit rates (with esd-CAN interfaces) Optical couplers are delaying the CAN signals. esd modules typically reach a wire length of ● 37 m at 1 Mbit/s within a proper terminated CAN network without impedance disturbances like e.g. -
Page 17: Examples For Can Cables
Correct Wiring of Electrically Isolated CAN Networks 3.6 Examples for CAN Cables esd recommends the following two-wire and four-wire cable types for CAN network design. These cable types are used by esd for ready-made CAN cables, too. 3.6.1 Cable for light industrial Environment Applications (Two-Wire) -
Page 18: Can Troubleshooting Guide
- there are no open circuits in CAN_H or CAN_L wiring - your bus system has two terminating resistors (one at each end) and that they are 120 Ω each. Page 18 of 22 Manual • Doc. No.: C.1311.21 / Rev. 1.3 CAN-T-Connector... -
Page 19: Electrical Grounding
(see figure at previous page). 4. Measure the DC voltage between CAN_L and CAN_GND (see figure at previous page). Normally the voltage should be between 2.0 V and 3.0 V. CAN-T-Connector Manual • Doc. No.: C.1311.21 / Rev. 1.3 Page 19 of 22... -
Page 20: Can Transceiver Resistance Test
If you have executed the fault diagnostic steps of this troubleshooting guide and you even can not find a solution for your problem our support department will be able to assist. Please contact our support via email at support@esd.eu or by phone +40-511-37298-130. Page 20 of 22 Manual •... -
Page 21: Declaration Of Conformity
Declaration of Conformity 5. Declaration of Conformity CAN-T-Connector Manual • Doc. No.: C.1311.21 / Rev. 1.3 Page 21 of 22... -
Page 22: Order Information
CAN-Termination C.1302.01 Terminating resistor DSUB-9 male Table 2: Order information PDF Manuals For availability of English manuals see table below. Please download the manuals as PDF documents from our esd website www.esd.eu for free. Manuals Order No. CAN-T-Connector-ME Hardware manual in English C.1311.21...
