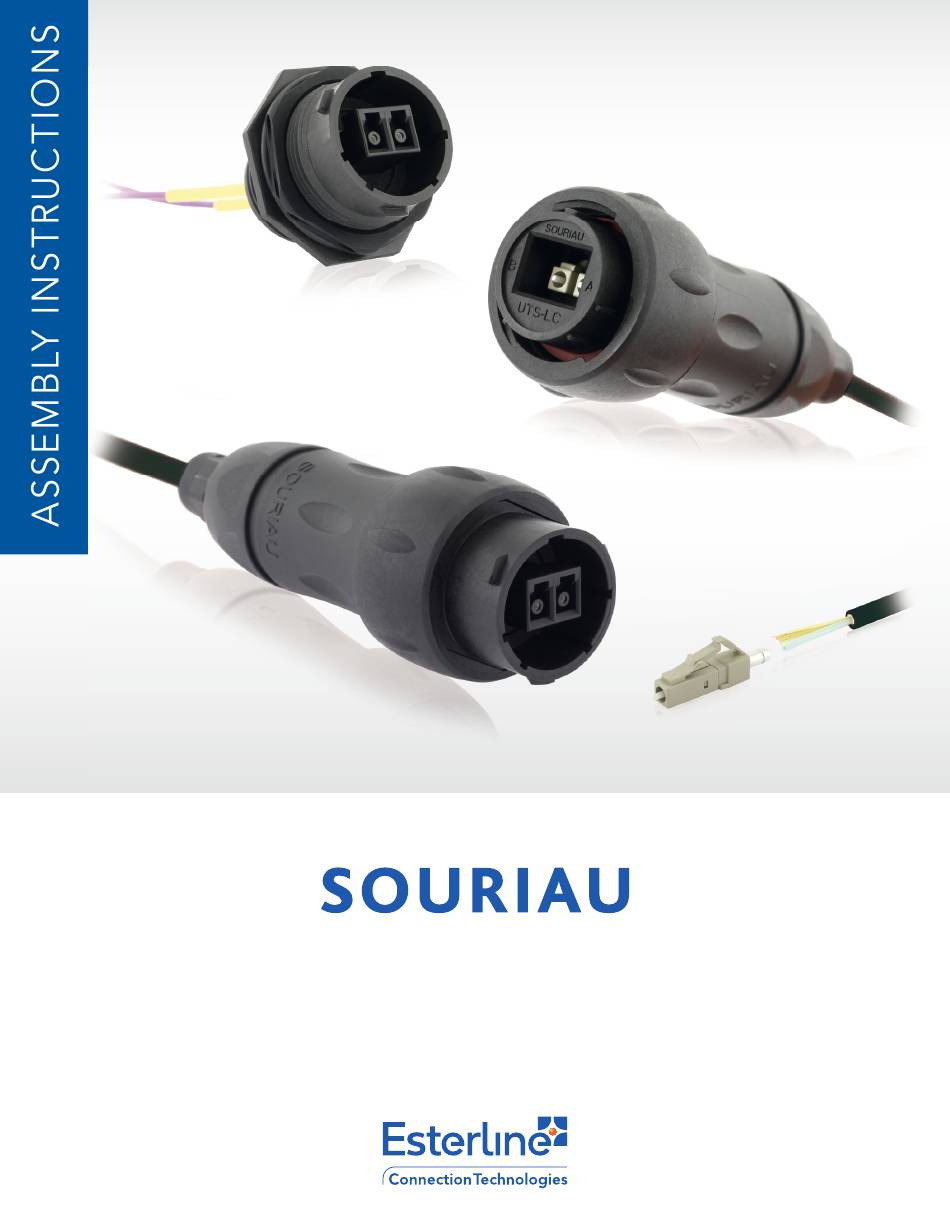

- Page 1 UTS LC Series BT 304...
-
Page 3: Table Of Contents
UTS LC Series BT304 Contents Tool & Material ............ Assembly Instructions for UTS718LCN ....12 UTS LC Component details ........ Cleaning & Inspection ........14 UTS LC Dimensions ..........Safety Considerations ......... 15 Assembly Instructions for UTS1JC18LCN & UTS6JC18LCN ....... A - Cable preparation ........ -
Page 4: Tool & Material
UTS LC Series BT304 Tool & Material The following tools and materials are necessary for preparation, assembly, inspection, and maintenance of the connector and cable assembly. Follow the tool instruction for operation and safety guidelines. Tools Material Assembly Instructions • Cable jacket strip tool •... -
Page 5: Uts Lc Component Details
UTS LC Series BT304 Dimensions Free Hanging Receptacle -UTS1JC18LCN 1 22 max Plug - UTS6JC18LCN 1 1 2 max Jam nut receptacle - UTS718LCN Sealing Caps UTS618DCG2 UTS18DCG2 18.5 max 1 7.5 max for UTS6JC18LCN for UTS1JC18LCN & UTS718LCN 34 max 24 max 5 max UTS1JC18LCN, UTS6JC18LCN, UTS718LCN overview... -
Page 6: Assembly Instructions For Uts1Jc18Lcn & Uts6Jc18Lcn
UTS LC Series BT304 Assembly Instructions UTS1JC18LCN & UTS6JC18LCN Cable preparation 1. Slide the backshell onto the cable allowing 50 cm at the end of the cable for stripping the cable. Make sure to orient each component as shown in the UTS LC Component details section. 2. - Page 7 UTS LC Series BT304 UTS1JC18LCN & UTS6JC18LCN (Continued) 7. Apply the instant adhesive on the fi ber and cover the crimp support. (e.g. Loctite 480 PRISM). 8. Before the instant adhesive begins to harden,quickly slide the ear clamp over the fi ber, orient the Clamp according the picture. Push the strength members back over the clamp until it bottoms on the rear fl ange of the support.
- Page 8 UTS LC Series BT304 Assembly Instructions (Continued) UTS1JC18LCN & UTS6JC18LCN (Continued) 11. Terminate the LC contact on the fi ber according to your supplier instruction for gluing, cliving and polishing. Free hanging receptacle UTS1JC18LCN Free hanging receptacle UTS1JC18LCN: 95±1 mm Plug UTS6JC18LCN Plug UTS6JC18LCN: 85±1 mm 12.
-
Page 9: B - Backshell Screwing For Uts1Jc18Lcn
UTS LC Series BT304 UTS1JC18LCN & UTS6JC18LCN (Continued) 13. Plug the two LC: Make sure that each LC contact is in the right cavity A or B. You need to hear a “click”. Backshell screwing for UTS1JC18LCN 1. Slide the blackshell and screw it using a 28 mm U-wrench. Tightened the backshell with a 4 Nm torque. 2. -
Page 10: C - Backshell Screwing For Uts6Jc18Lcn
UTS LC Series BT304 Assembly Instructions (Continued) Backshell screwing for UTS6JC18LCN 1. You need a receptacle counter-part. Orient the polarization keys before you start mating the connectors. 2. Coupling plug with receptacle 3. Slide the blackshell and screw it using a 28 mm U-wrench. Tightened the backshell with a 4 Nm torque. 4. - Page 11 UTS LC Series BT304 Backshell screwing for UTS6JC18LCN (Continued) 5. Screw the head nut using a 15 mm U-wrench. Tightened the head nut with a 2 Nm torque. Recommendation Use the caps, UTS618DCG2 for plug or UTS18DCG2 for receptacle to protect the LC contacts from surrouding contamination. ...
-
Page 12: Assembly Instructions For Uts718Lcn
UTS LC Series BT304 Assembly Instructions (Continued) Assembly Instructions for UTS718LCN 1. Strip the fi ber buffer according to your LC supplier recommendations and make sure to reach the fi nal desired lengths for the individual fi bers as described on the pictures below. Bare fi ber Fiber buffer 2. - Page 13 UTS LC Series BT304 Assembly Instructions for UTS718LCN (Continued) 5. Tightened the jam nut with a torque of 5 Nm, using a 36.5 mm U- wrench. 6. Coupling.
-
Page 14: Cleaning & Inspection
UTS LC Series BT304 Maintenance Cleaning & Inspection Cleaning and visual inspection of a termini endface is part of the good practices for fi ber optics. This is necessary to ensure the good optical performances of an LC contact inside a UTS LC connector. Please note that most of the standard inspection and cleaning tool on the market can be used for maintenance of an LC contact mounted in an UTS LC connector. -
Page 15: Safety Considerations
UTS LC Series BT304 Safety Considerations Safety glasses A- Safety glasses to protect your eyes from accidental injury are strongly recommended when handling chemicals and cutting fi bers. Pieces of glass fi ber are very sharp and can damage the cornea of the eye. B- Glue Glue may cause eye and skin irritation. - Page 16 www.souriau-industrial.com contactindustry@souriau.com...
