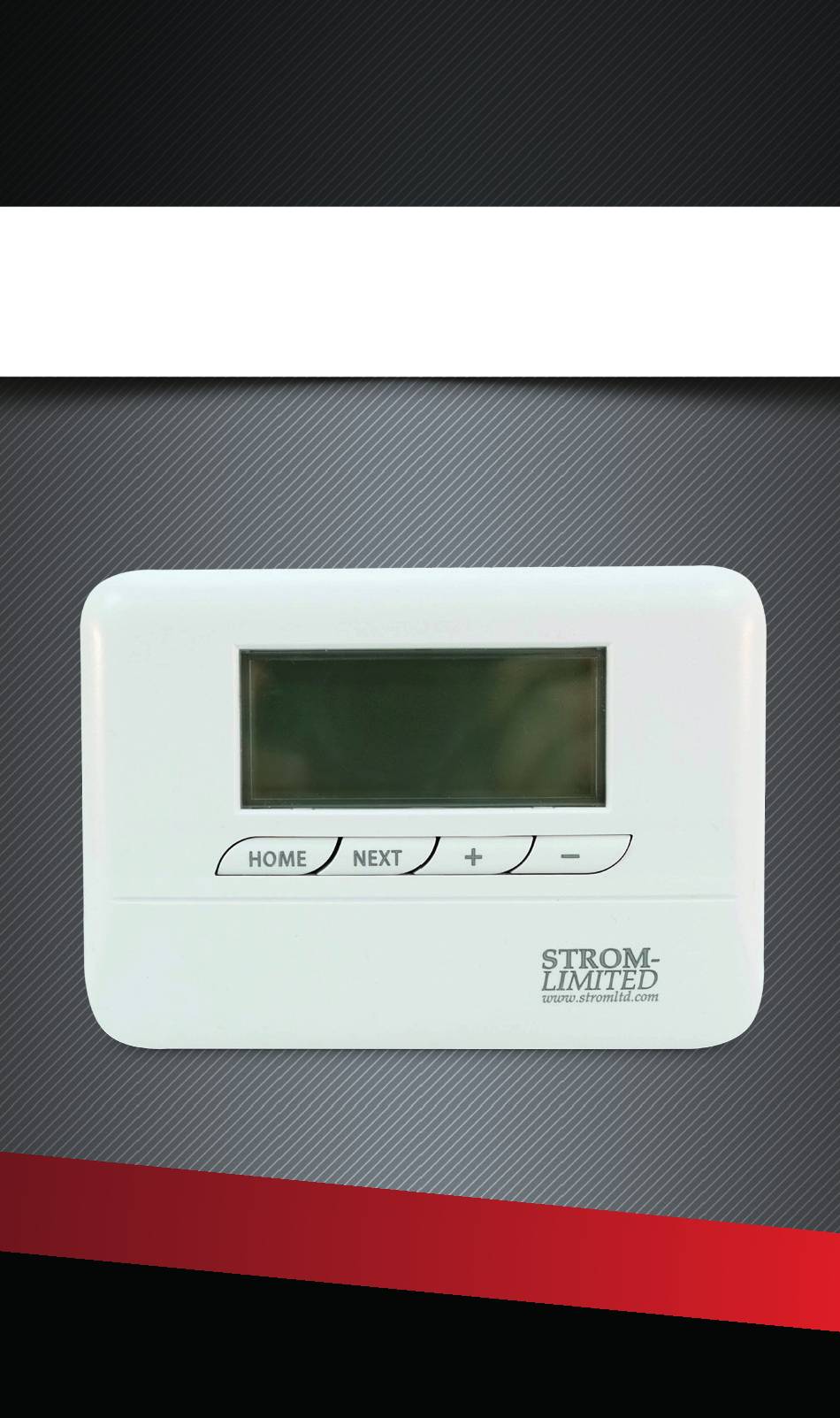

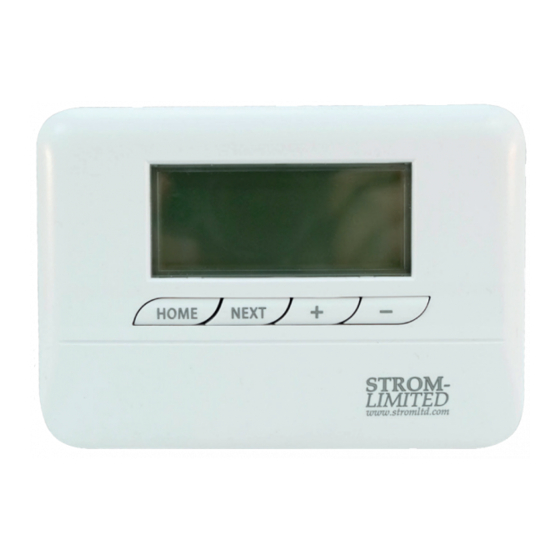

- Page 1 STROM- LIMITED www.stromltd.com Programmable Thermostat SSRTPR05 www.stromltd.com STROM LIMITED 2017...
-
Page 2: Table Of Contents
STROM LIMITED CONTENTS USER GUIDE CONTENTS SECTIONS PAGE What Is A Programmable Thermostat How To Use The Thermostat Thermostat Button Layout Thermostat Display Layout Built In Heating Programmes Personalised Heating Programmes Programming Your Thermostat Reviewing The Current Schedule Changing The Current Schedule... - Page 3 STROM LIMITED CONTENTS INSTALLATION GUIDE CONTENTS SECTIONS PAGE Controller Specification Safety Instructions Thermostat Positioning Existing Installations New Installations Wiring Diagram Backplate Wiring View Electrical Wiring Schematic Controller Commissioning Setting The Time & Date Setting The Backlight Timeout Advanced Functions Energy Saving Settings...
-
Page 4: What Is A Programmable Thermostat
STROM LIMITED USER GUIDE WHAT IS A PROGRAMMABLE THERMOSTAT? An explanation for householders: A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set ‘on’ and ‘off’ time periods to suit your own lifestyle. A room thermostat works by sensing the air temperature,... -
Page 5: How To Use The Thermostat
Your Strom Programmable Thermostat allows timed control of your central heating system, allowing you to set time events and temperatures for maximum comfort without wasting energy. The SSRTPR05 checks the time and temperature against its programming and activates your heat source when heat is required. -
Page 6: Thermostat Button Layout
STROM LIMITED USER GUIDE THERMOSTAT BUTTON LAYOUT Controller Display Home Selector Next Selector Adjustment Selectors Day Selector Copy Selector Holiday Selector Battery Compartment Function Slider HOLIDAY DELIVERING THE POWER... -
Page 7: Thermostat Display Layout
STROM LIMITED USER GUIDE THERMOSTAT DISPLAY LAYOUT Day Of The Week Current Temperature Frost Protection System Current Time AM / PM Indicator Current Operating Mode / Notifier (Active Mode / Notifier Is Lit) Calling For Heat Notification (Active When Lit) -
Page 8: Built In Heating Programmes
USER GUIDE BUILT-IN HEATING PROGRAMS Your Strom programmable thermostat comes pre-loaded with one varient of the most commonly used profile and will serve as a quick installation profile, or as a profile to adapt to your own needs. The default profle for... -
Page 9: Personalised Heating Programmes
STROM LIMITED USER GUIDE PERSONALISED HEATING PROGRAMS Ask your installer to record your heating profile here so you can refer back to it at a later date if you need to. Circle a heating profile and then enter the times & temperatures recorded on the control. -
Page 10: Programming Your Thermostat
USER GUIDE PROGRAMMING YOUR THERMOSTAT Your new Strom Thermostat is extremely simple to program if you should find that the controller presets do not suit your lifestyle. Should you ever need to return the controller to its preset timing profiles please follow the reset procedure on pages 14. -
Page 11: Changing The Current Schedule
STROM LIMITED USER GUIDE Changing the current schedule: To change the current settings being used by your controller the procedure is similar to that used for reviewing the current settings. Move the “FUNCTION SLIDER” to “PROG”. The controller will show the programming mode of the controller: •... -
Page 12: Temporary Overrides
STROM LIMITED USER GUIDE TEMPORARY OVERRIDES Temporary Temperature Boost: You can temporarily override the temperature of the thermostat till the next programmed event. To do this simply: Ensure the “FUNCTION SLIDER” is set to “AUTO”. You can change the set temperature by using the “ADJUSTMENT SELECTORS”... -
Page 13: Holiday Mode
STROM LIMITED USER GUIDE HOLIDAY MODE Holiday mode is extremely useful tool in cutting your energy bills while you are away but ensuring you return to a warm home. To enable Holiday mode simply follow this procedure: Press the “HOLIDAY SELECTOR”... -
Page 14: Resetting The Controller
STROM LIMITED USER GUIDE RESETING THE CONTROLLER Resetting the controller should be used as a last resort as by doing so you will return your device back to its factory settings and remove all programming you may have done. Prior to carrying out a reset we suggest that you ensure that the programming information has been completed on page 9 using the review procedure on page 10. -
Page 15: Product Guarantee & Terms
USER GUIDE PRODUCT GUARANTEE Your Strom Channel Programmer is guaranteed by default for a period of 12 months from the date of purchase, to redeem the parts only 3 year guarantee the end user will need to register their unit within 45 days of purchase on our website. - Page 16 STROM LIMITED INSTALLATION GUIDE INSTALLATION GUIDE The contents of this section are meant only for qualified electricians and service engineers. Using this section of the manual without proper training may damage your product or cause you personal injury. Improper use of this section may render your product warrenty null and void.
-
Page 17: Controller Specification
STROM LIMITED INSTALLATION GUIDE CONTROLLER SPECIFICATION TECHNICAL DETAIL SPECIFICATION Power Supply 2 x 1.5V AA Type Lithium Batteries Switch Capacity 230VAC, 6(2)A SPDT (Volt Free Contacts) Programming 7 Day, 5/2 Day, or 24 Hours Number Of Events 4 or 6 Per Day... -
Page 18: Safety Instructions
STROM LIMITED INSTALLATION GUIDE SAFETY INSTRUCTIONS WARNING IT IS ESSENTIAL THAT BEFORE ANY INSTALLATION OR MAINTAINENCE IS CARRIED OUT THAT THE AC MAINS SUPPLY HAS BEEN ISOLATED, FAILURE TO DO SO MAY RESULT IN DEATH. Instructions beyond this point are designed for qualified electricians only, and should not be attempted by the user. -
Page 19: Thermostat Positioning
STROM LIMITED THERMOSTAT POSITIONING When it comes to thermostat placement there are a few key rules to follow to ensure your product works efficiently and keeps your home warm without wasting energy. Do not place your thermostat next to external doors or other sources of drafts. -
Page 20: Existing Installations
STROM LIMITED INSTALLATION GUIDE EXISTING INSTALLATIONS Where there is a controller already installed please follow the following procedure. Isolate the mains supply to the old controller. Remove the old controller from the backplate. Check to see if the old backplate is compatible with your new controller, ensure you check the following key points: •... -
Page 21: New Installations
STROM LIMITED INSTALLATION GUIDE NEW INSTALLATIONS Where there is no current installation please follow the following installation procedure: Ensure all mains supplies relating to the installation are isolated. Prepare the area for the installation of the new backplate, with the... -
Page 22: Wiring Diagram
STROM LIMITED INSTALLATION GUIDE WIRING DIAGRAM When wiring your backplate up, or performing maintenace on the backplate please ensure that all the mains AC supply has been isolated. We recommend that all wiring is done with 1.0mm or 1.5mm cabling, and that care is taken to ensure good connection with the terminals. -
Page 23: Controller Commissioning
STROM LIMITED INSTALLATION GUIDE CONTROLLER COMMISSIONING Once you are happy that the control has been fitted and wired in accordance with this installation manual you will need to commision the controller and ensure the following has been completed: Power has been restored to the controller. -
Page 24: Advanced Functions
STROM LIMITED INSTALLATION GUIDE ADVANCED FUNCTIONS To access the advanced functions of the controller ensure the “FUNCTION SLIDER” is in the “OFF” position and simply press and hold for 5 seconds the “HOME SELECTOR” & “DAY SELECTOR” To cycle through the options please use the “NEXT SELECTOR”... -
Page 25: Energy Saving Settings
STROM LIMITED What Is Optimum Start? Optimum start works by manipulating the start time for a homes heating by monitoring the current temperature and the desired temperature at the programmed time. This means where a device without optimum start might start heating the home 2 hours before you wake up, the optimum... -
Page 26: Service / Landlord Function
SERVICE INTERVALS / LANDLORD FUNCTION It is a requirement for every landlord to service their heating equipment every 12 months. Strom have included a countdown function that reminds the user to arrange the service, and where service is overdue the function of the heating system can be restricted until the system has been serviced and the counter reset. -
Page 27: Setting The Service Interval
Landlord/Building Owner. If the code is lost you will need to reset the controller to factory settings or submit a request to Strom for a copy of the master code. We regret that Strom can only give the code out to verified installers, or verified landlords. - Page 28 STROM- LIMITED www.stromltd.com STROM LIMITED UNIT 3, RCM BUSINESS CENTER, OSSETT, WF5 9ND TELEPHONE: 0333 344 24 74 EMAIL: SALES@STROMLTD.COM...
