Assembly Instructions
Small (XY-S) and Medium (XY-M)
(Parts List and Assembly on page 4)
2
1

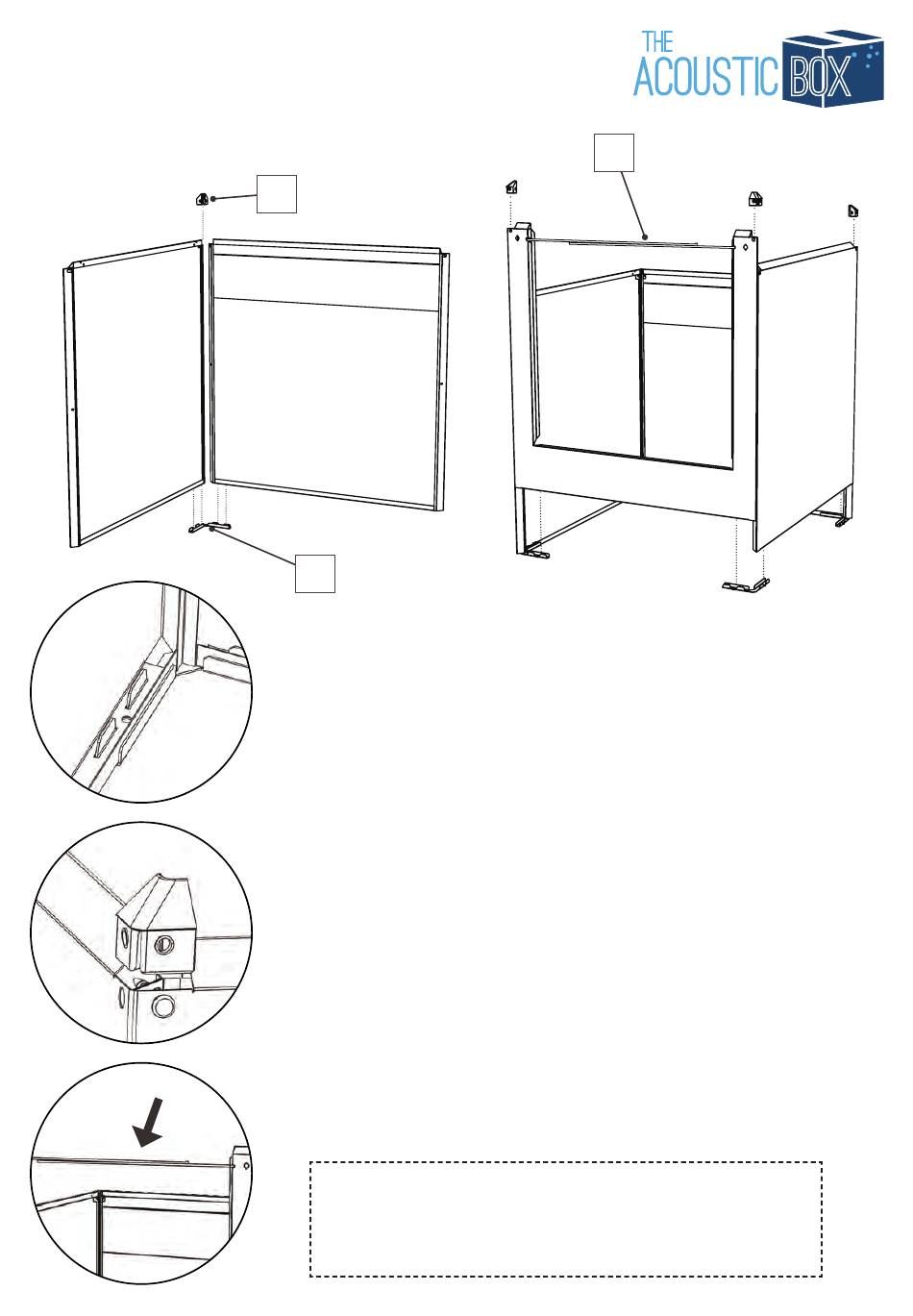

1. Locate slots on bottom of Side (002) and Rear
(003) Panels and push down into Corner Bracket
(007).
2. Insert Plastic Cap (012) into holes in top of
Panels to join them. Tap into place with a mallet.
3. Repeat steps 1 and 2 for all panels.
NOTE: (Med unit XY-M only)
stabilise panel during assembly. Detach do
AFTER completing step 3.
3
connected to front panel (004) to
1
Advertisement
Table of Contents
Summary of Contents for Acoustic Box XY-S
- Page 1 Assembly Instructions Small (XY-S) and Medium (XY-M) (Parts List and Assembly on page 4) 1. Locate slots on bottom of Side (002) and Rear (003) Panels and push down into Corner Bracket (007). 2. Insert Plastic Cap (012) into holes in top of Panels to join them.
- Page 2 4. Push Door Handles (014) into Removable Front Door (005) until a ‘click’ is heard. 5. Insert Removable Front Door (005) into Front Panel (004). Locate studs on sides of Removable Front Panel then push slightly in and down.
- Page 3 6. Insert Door Latches (010) through holes in Top Door (006). 7. Connect Lock Brackets (013) to Front Panel (004) by inserting them sideways into holes. Twist into upright position and screw into place. 8. Attach Top Door (006) to unit with Hinge Pins (008). Tap into place with a mallet.
- Page 4 Assembly and Parts Small (XY-S) and Medium (XY-M) XY-M only Part No. Description Assembly Tools Required Side Panel Rear Panel Front Panel Removable Front Door Top Door Corner Bracket Hinge Pin Door Stay Phillips screwdriver Mallet Door Latch Plastic Cap...
