Summary of Contents for Multitek KOD-10

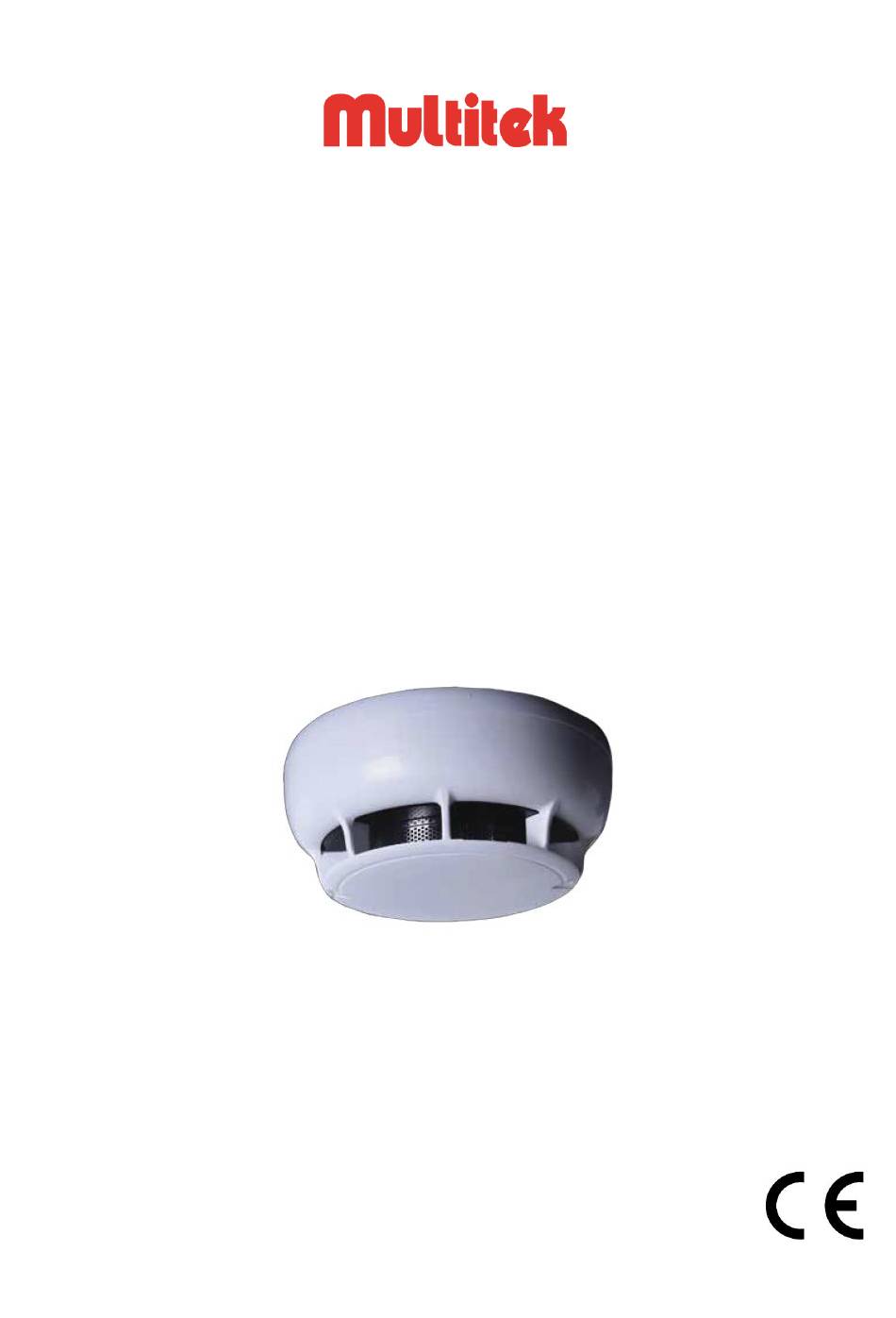

- Page 1 KOD-10 CONVENTIONAL OPTICAL SOMOKE DETECTOR INSTALLATION & OPERATING GUIDE It obeys the rules of AEEE regulations.
- Page 2 Important Warnings General ✓ Before using the device read this manual carefully. Keep it just in case of necessity. ✓ Abide all the rules and precautions stated in the manual. Follow all the instructions one by one. ✓ Keep the devices away from water and moisture Conditions Do not energize the device above or below the given limits of extreme hot or cold conditions, -10°C and +55°C...
- Page 3 Maximum External Device Current 10mA (@24V) – (2K2 resistance limited) Operating Temperature Range -10C ~ +70C (14F ~ 158F) Humidity 95% RH (max) Dimensions (mm) Ø110, h42 Housing Material White Color, ABS Plastic Used Cable Cut 0.4mm ² ~ 1.5mm ² Weight (incl.
- Page 4 Mounting and Connection 1. Remove the head of the detector by pulling it upwards (2) by turning it (1) up to the short line in the direction of the counterclockwise direction as seen from the base. 2. Mount the base using the 2 mounting locations shown. 3.
- Page 5 1922 Multitek Elektronik San. ve Tic. A.Ş. Meclis Mah. Atatürk Cad. No:47 34785 Sancaktepe / İSTANBUL 1922-CPD-0874 EN 54-7:2000; EN 54-7:2000/A1:2002; EN 54-7:2000/A2:2006 Point type smoke detector (Ionization) KOD-10 Manufacture Multitek Elektronik San. ve Tic. A.Ş. Meclis Mah. Atatürk Cad. No:47 34785 Sancaktepe / İstanbul / Türkiye...
