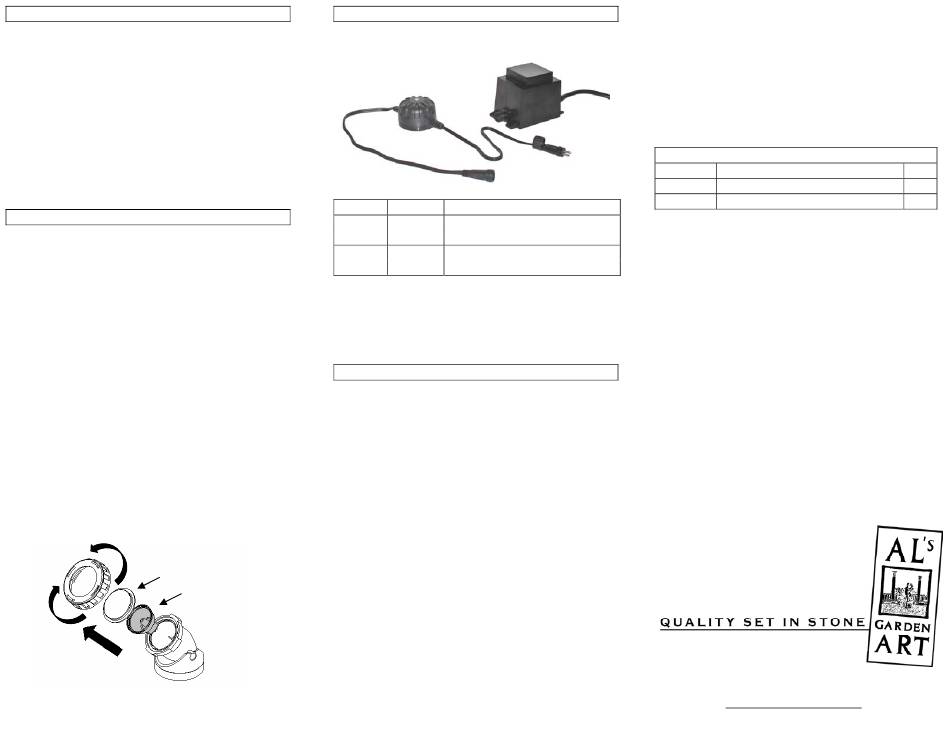

AL’S GARDEN ART AG-83 Quick Start Manual

CARE AND MAINTENANCE
WHEN USED WITH AG-81 SUBMERSIBLE
LIGHT – NOT INCLUDED IN THIS KIT
• Periodically, your light may require cleaning for
optimal performance.
• Cleaning should only be done with warm soapy
water. Be sure to use biodegradable soap.
• The frequency of cleaning depends upon the
conditions of the environment where light is
used.
• This light is designed
temperatures between 200F and 1100F.
REPLACING THE LENS OR BULB
WHEN USED WITH AG-81 SUBMERSIBLE
LIGHT – NOT INCLUDED IN THIS KIT
Replacement for the high intensity halogen bulb
AG-85 type MR11 bulb/reflector.
The bulb is not under warranty
1 Unplug the transformer
2 Remove the light's cable from the transformer
and allow the light to cool before replacing bulb.
3 Remove the lens retainer by pushing the
retainer down and turning counter-clockwise.
4 Remove the lens and unplug the bulb/reflector
from the socket.
5 Press the new bulb into the socket and place
back into the light housing. Do not touch the
lamp at any time as oil from skin may damage
lamp. Use a soft cloth.
6 Re-install the lens and lens retainer ensuring
that the o-ring remains seated in the o-ring
groove. Do not operate the light fixture with a
missing or damaged lens.
Open
Clear Lens
Close
To change the color of the light replace clear lens
with one of the AG-84 colored lenses.
REPLACEMENT PARTS LIST
to operate at
Part
A
B
For replacement parts, contact our customer
service department at 909-424-0221.
8:00 am – 4:30 pm PST, Monday through Friday.
TROUBLESHOOTING
WHEN USED WITH AG-81 SUBMERSIBLE
LIGHT – NOT INCLUDED IN THIS KIT
• If lights fail to illuminate, check that lights are
getting power by testing another appliance in
the same power outlet.
• The light is designed to turn on when it gets
dark, and turn off when it gets light. To activate
the light during daylight hours, cover the sensor.
• If the light will not illuminate, follow the
instructions for "Replacing The Bulb".
• If lights do not turn off during daytime, check
sensor. Make sure the sensor faces up and is
not covered by dirt or debris.
AG-85 Light Bulb
B
No. Description
AG-83 60W Transformer
120V (in), 12V/60W (out)
Light Sensor
Only Included with AG-83
60 Watt Transformer
One 12V/60W Transformer
with daylight off sensor
A
PACKAGE CONTENTS
Part Description
AG-83 Transformer
Light Sensor
Questions, problems, missing parts?
Before returning to your retailer, contact our
customer service department at 909 424-0221
8:00 am – 4:30 pm, PST, Monday - Friday, or
e-mail us at info@alsgardenart.com
AL'S GARDEN ART
Manufacturers of cast stone fountains and
statuary since 1949, family owned and
operated with more then half a century of
skill and passion for creating top quality cast
stone art.
P.O. Box 111 • Colton, CA 92324
www.alsgardenart.com
AG-83
model
Qty
1
1
