Summary of Contents for Zip ASSIST WiFi

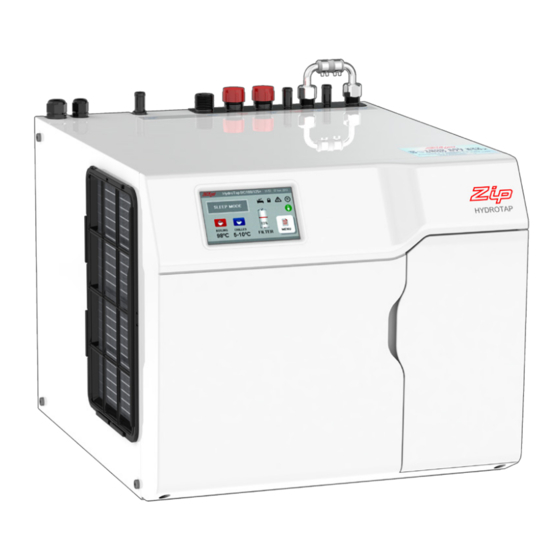

- Page 1 ZIP ASSIST WiFi Installation Service Manual...
- Page 2 HydroTaps (via WiFi and through a cloud based server) by the product own- er and/or facility manager and/or Zip service centre. The moni- toring system allows settings to be changed, usage patterns to be monitored and reported, system status notifications and al- lows planning of preventative maintenance and filter changes.
-
Page 3: Step 3 - Upgrade The Firmware
STEP 3 - Upgrade the Firmware Turn the power ON If necessary, upgrade the G4 LCD PCB to B02.4 or later, for compatibility with the new WiFi PCB and Zip Assist. Turn the power OFF and then ON again after this is performed. - Page 4 On a wireless device ( Eg.Smart phone / laptop), the access point will be seen in the list of available networks, just like any other access point. Page 4 of 16 803904 - Zip Assist - May 2016 - v1.00...
- Page 5 HydroTap LCD screen (in the WiFi Setup menu). Press [Connect]. When prompted enter the password shown on the Hydro- Tap LCD screen (in the WiFi Setup menu). Press [OK]. 803904 - Zip Assist - May 2016 - v1.00 Page 5 of 16...
- Page 6 STEP 5 - WiFi Configurator Application Select “Home network” if a network location is requested to be entered Open the Zip Wi-Fi Configurator application and wait until the green connection status icon begins flashing. This means that the windows application is communicating with the HydroTap.
- Page 7 13. Close the windows application. This will ensure a quicker connection to the customers network in the next step. Troubleshooting: the close button may need to be pressed twice. 803904 - Zip Assist - May 2016 - v1.00 Page 7 of 16...
- Page 8 Press scan. Application will search for all SSIDs that start with ‘ZIP-‘. Press the SSID which matches that shown on the Hydro- Tap LCD screen (in the WiFi Setup menu). Page 8 of 16 803904 - Zip Assist - May 2016 - v1.00...
- Page 9 If the above is not shown, the an- droid device can be manually connected to the HydroTaps hotspot through the standard method using its WiFi setting menu. 803904 - Zip Assist - May 2016 - v1.00 Page 9 of 16...
- Page 10 “Hidden Domain” text field. Other- wise this field should be left blank. The “Security Type” should be automatically selected. If not manu- ally select it Page 10 of 16 803904 - Zip Assist - May 2016 - v1.00...
- Page 11 (or request the customer to enter it and then untick “Show Password” so it remains hidden). Press “CONFIGURE WI-FI”. Wait until “Finished configur- ing wifi” is displayed. 803904 - Zip Assist - May 2016 - v1.00 Page 11 of 16...
- Page 12 Increase the signal strength of the network at the location of the HydroTap OR 010.002.006.187 ZIP_GUEST Utilise an alternative WiFi network that has a stronger signal. Page 12 of 16 803904 - Zip Assist - May 2016 - v1.00...
- Page 13 HydroTap LCD in the Comms menu Cloud server will be shown as registered Cloud Server Status will show is registered “Server Connected” Mode: Status: Enable Cloud Server connected Server 803904 - Zip Assist - May 2016 - v1.00 Page 13 of 16...
-
Page 14: Troubleshooting
Step 8 - Connect to ZipAssist using the connection key For Further instructions on using ZipAssist refer to: The help “tooltip” icons shown throughout the ZipAssist website. Troubleshooting Press [WiFi Debugger] to view the message log. Page 14 of 16 803904 - Zip Assist - May 2016 - v1.00... - Page 15 Notes 803904 - Zip Assist - May 2016 - v1.00 Page 15 of 16...
-
Page 16: Contact Details
Images in this booklet have been modified and may not be true representations of the finished goods. Page 16 of 16 803904 - Zip Assist - May 2016 - v1.00...
