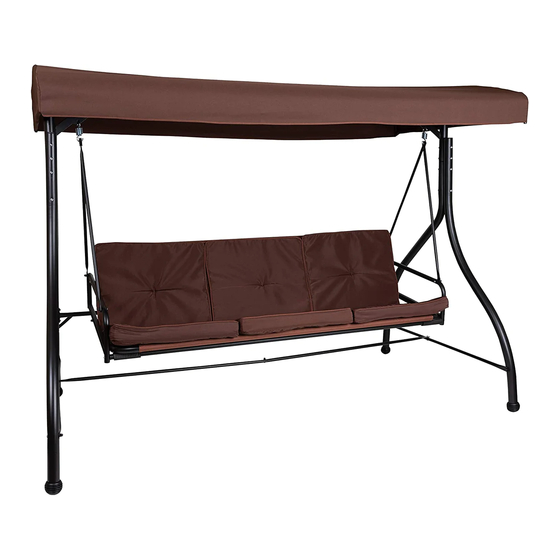

Summary of Contents for Belnick TLH-007-BN-GG
- Page 1 Online Assembly Instructions: http://ftp.flashfurniture.com/AssemblyInstructions/TLH-007-BN-GG.pdf...
- Page 2 Belnick; (2) tearing, scratching, scuffing, or blemishing of leather or fabric; (3) cosmetic damage that may result from normal usage; (4) damage attributable to use by persons exceeding specified weight limits or commercial use exceeding forty hours per week;...
- Page 3 Right Side Top Frame Post Left Side Top Frame Post Front Legs Right Side Upper Stabilizing Bar Left Side Upper Stabilizing Bar Left & Right Leg Bottom Braces Back Legs Left & Right Arms Swing Seat Fabric Canopy Left Side Lower Stabilizing Bar Right Side Lower Stabilizing Bar Swing Attachment Bars Front Seat Attachment Bar...
- Page 4 STEP 2A: Attach Left & Right Front Legs (Part C) and Left & Right Rear Legs (Part D) to Top Frame using (8) M8x105mm Bolt/Nut/Cap Sets (Part 2). STEP 1: Attach Left Side Top Frame Post (Part A) to Right Side Top Frame Post (Part B) using (1) M6x55mm Bolt/ Nut/Cap Set (Part 6) STEP 2B:...
- Page 5 STEP 8: Position Seat and Back Cushions (Part P) STEP 7: Attach Fabric Canopy to Left & Right Canopy Frames using Attached Hook and Loop Fasteners STEP 9 (When Reclined): Insert Locking Pin (Part Q) through Rear Seat Bracket Holes and Fasten Closed.
