Voltex VOLT Operating Manual

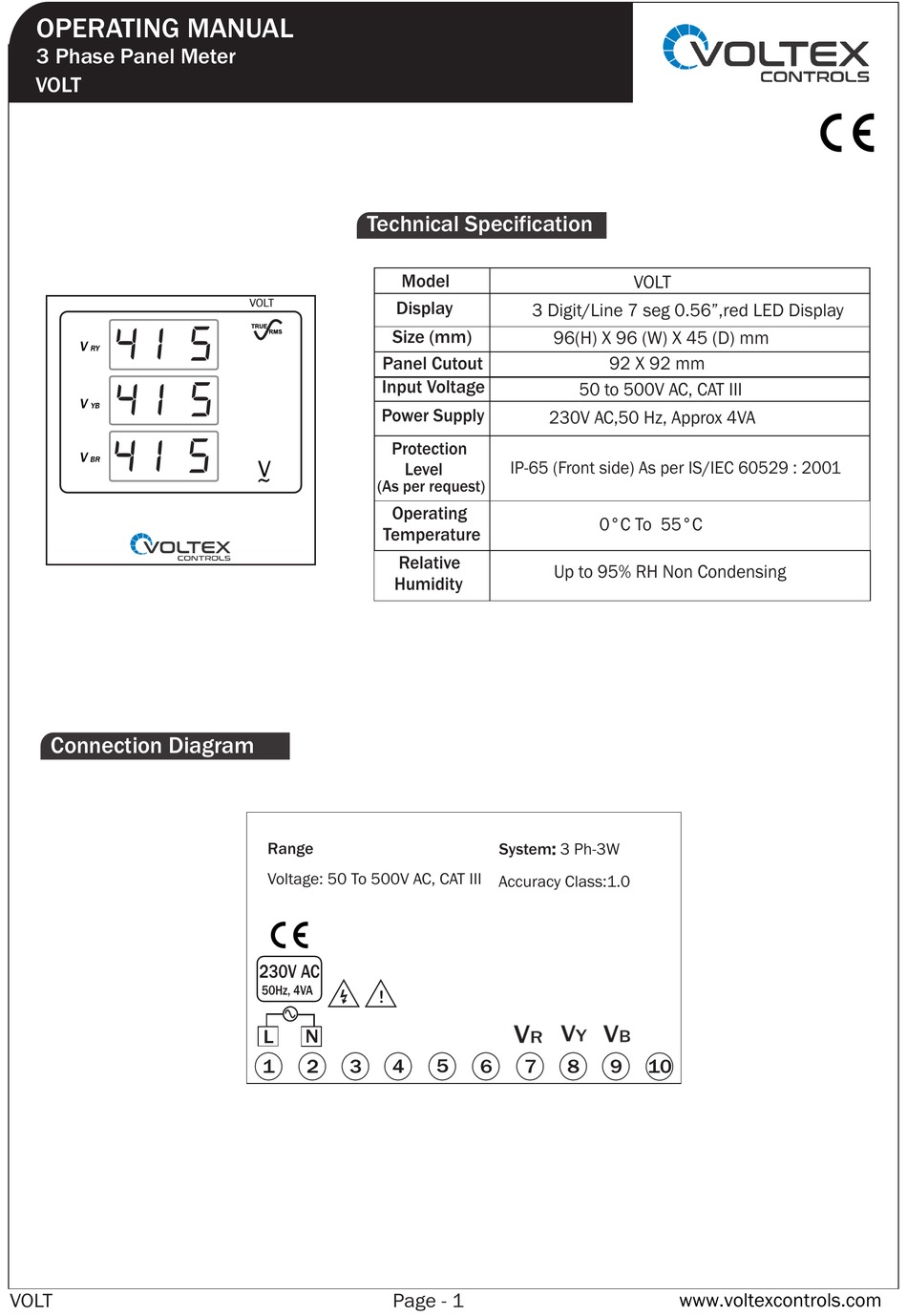

OPERATING MANUAL

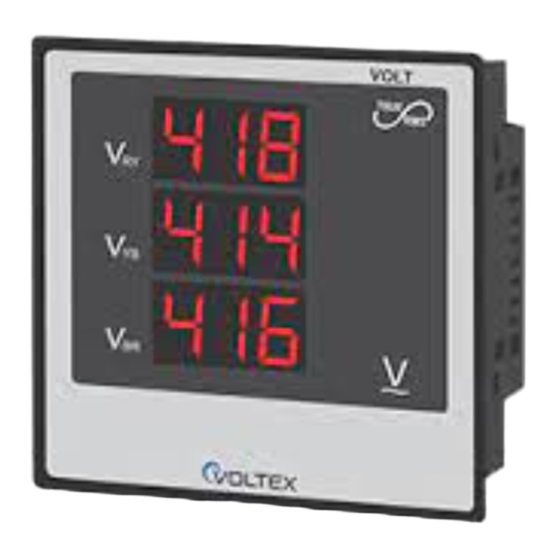

3 Phase Panel Meter
VOLT
 
 
 
Connection Diagram
VOLT

Technical Specification

Model
VOLT
Display
Size (mm)
Panel Cutout
Input Voltage
Power Supply
Protection
Level
(As per request)
Operating
Temperature
Relative
Humidity
Range
Voltage: 50 To 500V AC, CAT III
230V AC
50Hz, 4VA
!
L N
1 2 3 4
Page - 1
3 Digit/Line 7 seg 0.56",red LED Display
96(H) X 96 (W) X 45 (D) mm
50 to 500V AC, CAT III
230V AC,50 Hz, Approx 4VA
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 55°C
Up to 95% RH Non Condensing
System 3 Ph-3W :
Accuracy Class:1.0
V V V
Y
R
5 6 7 8
VOLT
92 X 92 mm
B
9 10
