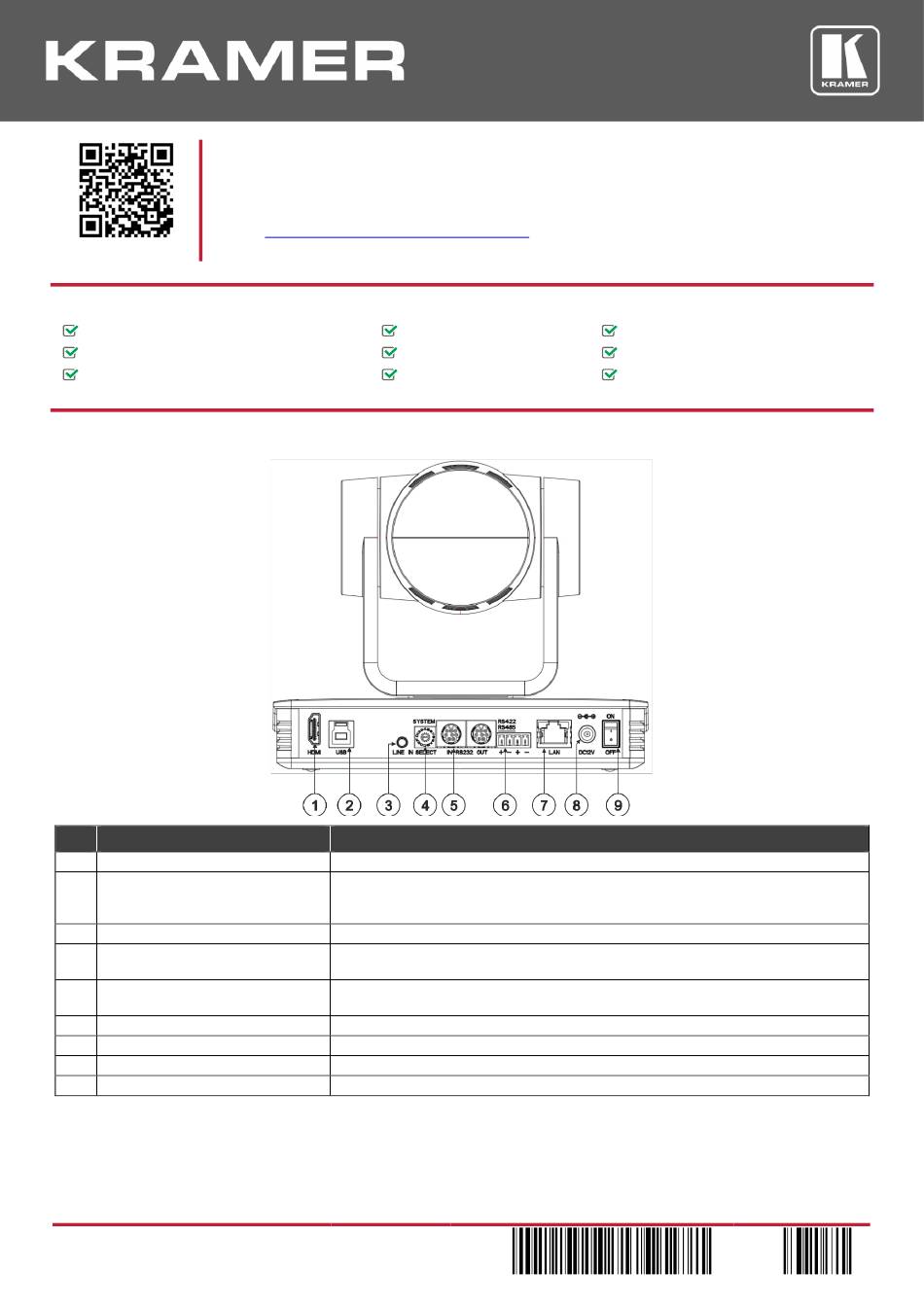

Kramer K-CAM-USB Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
K-CAM-USB Full HD Conference Camera
1 Power adapter
Remote control transmitter with batteries
Step 2: Get to know your K-CAM-USB
# Feature
1 HDMI™ Connector
2 USB Type-B Connector
3 LINE 3.5mm Mini Jack
4 SYSTEM SELECT Rotary
DIP-Switches
5 RS232 IN/OUT VISCA Connector
6 RS422/RS485 4-pin term. block
7 LAN RJ-45 Connector
8 DC12V Power Connector
9 ON/OFF Switch
K-CAM-USB Quick Start
K-CAM-USB Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/K-CAM-USB
firmware upgrades are available.
1 Wall bracket
1 Set of installation screws
1 Terminal block plug
Function
Connect to a display.
Connect to computer or collaboration device using the included USB-B to USB-A
cable. We recommend connecting
computer or collaboration device.
Connect to a microphone.
Set the video resolution. By default, it is set to "F" = video resolution is set via the
remote control or web pages.
Connect to a camera controller using the included RS-232 VISCA (m) to 9-pin (f)
cable.
Not in use.
Connect to your network or directly to a computer.
Connect to the 12V power adapter.
Turn the unit on and off.
K-CAM-USB for the first time.
to download the latest user manual and check if
1 USB-B to USB-A cable
1 RS-232 VISCA (m) to 9-pin (f) cable
Quick start guide
K-CAM-USB to a USB 3.0 connector on your
P/N: 2 9 0 0 - 3 0 1 4 7 4 QS Rev: 2
