Phason
SSC-1D installation guide

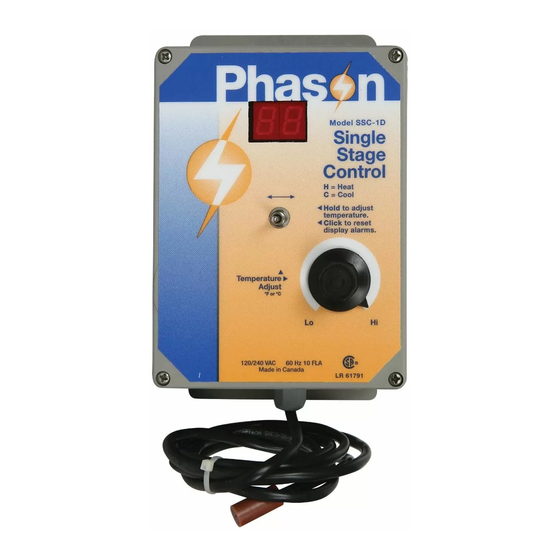

The Single Stage Control (SSC-1D) automatically controls the temperature in a room by switching
fans, lamps, or heaters on or off as the temperature drops below or exceeds the temperature set
point.
When the SSC-1D is in cooling mode, it switches on the fans when the temperature exceeds the set
point. When the control is in heating mode, it switches on the lamps or heaters when the
temperature drops below the set point.
Features
Single stage output
Heating and cooling modes
Adjustable temperature set point
Two-digit LED display
Fahrenheit and Celsius display
Error code display for troubleshooting
Overload protection fuse
CSA approval
Six-foot temperature probe, extendable to 500 feet
Rugged enclosure (corrosion resistant, water resistant, and fire retardant)
Two-year limited warranty
Electrical ratings
Input:
Solid-state relay:
Fuse:
10940304
120/230 VAC, 50/60 Hz
10 A at 120/230 VAC, general-purpose (resistive)
1/3 HP at 120 VAC, 1/2 HP at 230 VAC
360 W tungsten at 120 VAC
15 A, 250 VAC ABC - type ceramic
SSC-1D installation guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSC-1D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phason SSC-1D

Summary of Contents for Phason SSC-1D

  • Page 1 When the SSC-1D is in cooling mode, it switches on the fans when the temperature exceeds the set point. When the control is in heating mode, it switches on the lamps or heaters when the temperature drops below the set point.
  • Page 2 Installing the SSC-1D The SSC-1D must be installed by a qualified electrician. Before installing or servicing the SSC-1D, switch OFF the power supply at the source. Install the SSC-1D and all equipment connected to it according to local electrical codes.

  • Page 3: Connecting The Temperature Probe

    You can extend temperature probe cables to lengths of up to 500 feet. Follow the temperature probe guidelines and the guidelines below when extending cables. Use two-wire 18 AWG jacketed cable. Phason recommends Belden # 9408, Alpha # 5052, or an equivalent. Extension cable is also available from Phason. For more information, contact your dealer or Phason.

  • Page 4: Operation

    SSC-1D installation guide Operation The SSC-1D controls the temperature in a room by switching fans, lamps, or heaters on or off as the temperature drops below or exceeds the temperature set point. The set point is the desired room temperature and can be set between 32 and 98°F (0 and 38°C).
  • Page 5 The control will function normally. Maintaining the SSC-1D Proper care and maintenance will help your SSC-1D last longer. To prevent damage to the control, perform the following steps after the first two weeks of operation, and once a year after that.
  • Page 6 SSC-1D installation guide Cleaning the SSC-1D To clean the SSC-1D, wipe the surface with a damp cloth. Be careful when washing the room using a high-pressure washer. DO NOT spray the control using a high-pressure washer, this can damage the control and will void the warranty.
  • Page 7 Phason SSC-1D installation guide 10940304...

  • Page 8: Limited Warranty

    Limited warranty This warranty applies only to the Phason Inc. (Phason) Single Stage Control (SSC-1D). If you need warranty service, return the product and original proof of purchase to your dealer.
