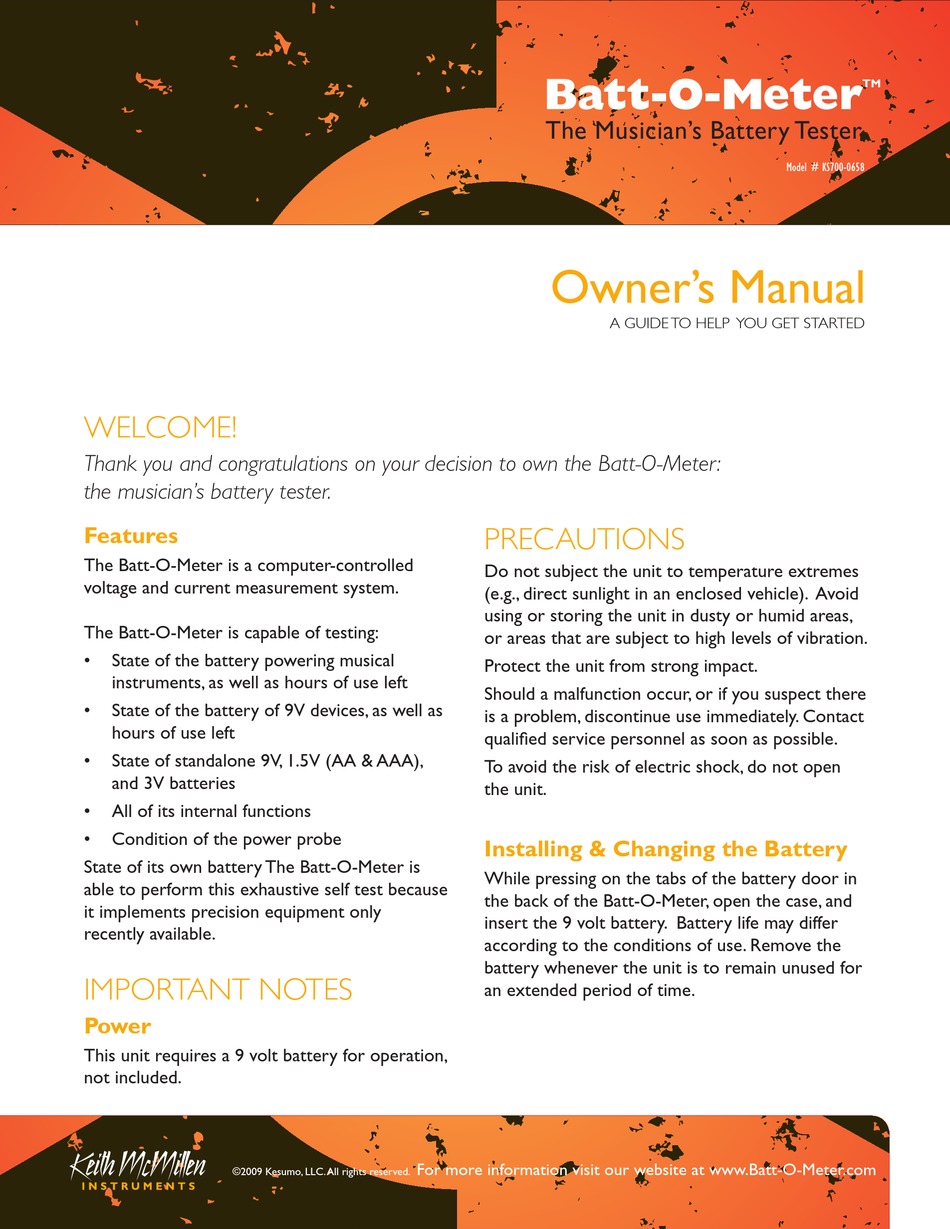

WELcOmE!
Thank you and congratulations on your decision to own the Batt-O-Meter:
the musician's battery tester.
Features
The Batt-O-Meter is a computer-controlled
voltage and current measurement system.
The Batt-O-Meter is capable of testing:
•
State of the battery powering musical
instruments, as well as hours of use left
•
State of the battery of 9V devices, as well as
hours of use left
•
State of standalone 9V, 1.5V (AA & AAA),
and 3V batteries
•
All of its internal functions
•
Condition of the power probe
State of its own battery The Batt-O-Meter is
able to perform this exhaustive self test because
it implements precision equipment only
recently available.
ImPORTAnT nOTES
Power
This unit requires a 9 volt battery for operation,
not included.
Keith McMillen
©2009 Kesumo, LLC. All rights reserved.
I N S T R U M E N T S
The Musician's Battery Tester
Owner's Manual
PREcAUTIOnS
Do not subject the unit to temperature extremes
(e.g., direct sunlight in an enclosed vehicle). Avoid
using or storing the unit in dusty or humid areas,
or areas that are subject to high levels of vibration.
Protect the unit from strong impact.
Should a malfunction occur, or if you suspect there
is a problem, discontinue use immediately. Contact
qualified service personnel as soon as possible.
To avoid the risk of electric shock, do not open
the unit.
Installing & Changing the Battery
While pressing on the tabs of the battery door in
the back of the Batt-O-Meter, open the case, and
insert the 9 volt battery. Battery life may differ
according to the conditions of use. Remove the
Keith McMillen
battery whenever the unit is to remain unused for
I N S T R U M E N T S
an extended period of time.
For more information visit our website at www.Batt-O-Meter.com
Model # KS700-0658
- -
O
A GUIDE TO HELP YOU GET STARTED
+
TM
TM
TM
TM
TM
TM
TM
