INF6522
Hardware Guide
65吋液晶電腦
009-1681-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monopad INF6522 and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus Monopad INF6522

Summary of Contents for InFocus Monopad INF6522

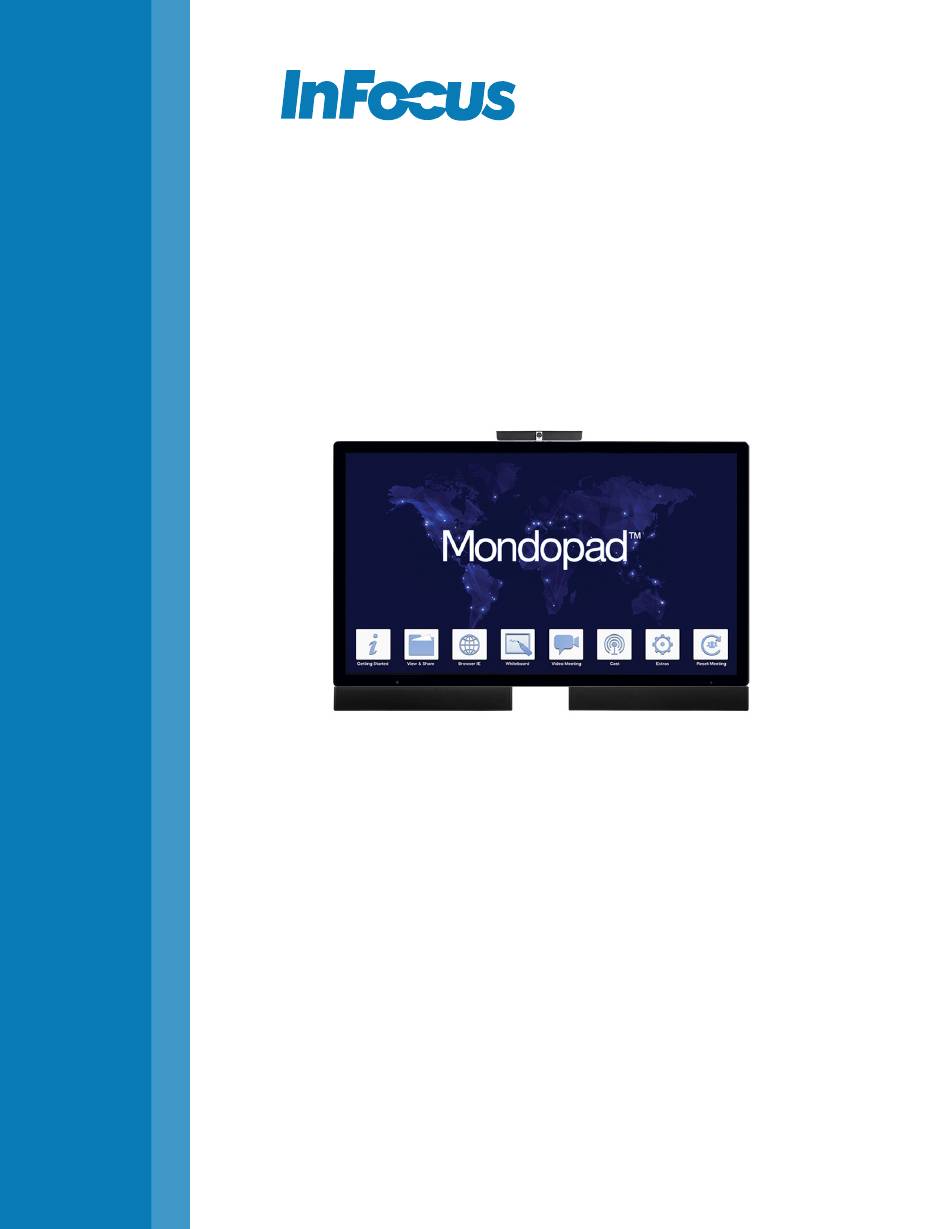

  • Page 1 INF6522 Hardware Guide 65吋液晶電腦 009-1681-01...

  • Page 2: Table Of Contents

    CONTENTS Declaration of Conformity ..........................................3 Safety Considerations ............................................. 4 安全資訊 ................................................5 Information about this Hardware Guide ....................................6 What’s Included ..............................................7 Setup ..................................................8 Mounting ..............................................8 Attaching the speakers ...........................................9 Attaching the HD video conferencing camera ................................10 Connecting to other devices ........................................ 11 Connecting AC power..........................................

  • Page 3: Declaration Of Conformity

    SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference.

  • Page 4: Safety Considerations

    SAFETY CONSIDERATIONS Please read and follow all safety instructions provided below and on the display before connecting the display to a power source. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by the equipment.

  • Page 5: 安全資訊

    Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...

  • Page 6: Information About This Hardware Guide

    Although this product comes pre-installed with the Mondopad software, you must first assemble the product. This Hardware Guide will assist you in setting up the INF6522. After the product is fully installed, please refer to the Mondopad Software Guide at www.infocus.com/support for more information.

  • Page 7: What's Included

    (varies per country) *Not included for all countries. For setup purposes, a keyboard and mouse are recommended. For additional accessory options, such as stands, feet, carts and wall mounts, see the InFocus website (www.infocus.com/store) or your local dealer. INF6522 Hardware Guide...

  • Page 8: Setup

    SETUP Mounting This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet this product's specifications and follow the manufacturer installation instructions. • Only use properly rated wall and stand mounting hardware that meet this product’s specifications and follow the manufacturer installation instructions.

  • Page 9: Attaching The Speakers

    The speakers can be installed as desired around the perimeter of the display using the supplied brackets, however NOTE: InFocus recommends installing the speakers across the bottom of the display. If you are not attaching the speakers, proceed to the next section, "Attaching the HD video conferencing camera" on page 10.

  • Page 10: Attaching The Hd Video Conferencing Camera

    Connect one end of the AC power cord to the AC In jack on the back of the speakers. Connect the other end of the AC power cord to the AC Out jack on the bottom connector panel of the display. ON/OFF POWER INPUT...

  • Page 11: Connecting To Other Devices

    Connecting to other devices A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on the back and side of the display. Available jacks include: HDMI In (4), VGA (1), Composite Video (1), Component RCA (1), RS232 (1), Audio In 3.5mm (1), Audio In RCA (1-R/L), PC Audio Line In 3.5mm (1), RJ45 (2), USB-B for touch control (1), USB 2.0-A (5), USB 3.0-A (2), Audio Out RCA (1-R/L), and DisplayPort (1).
  • Page 12 Connect a USB cable from the display to an external computer in order to use TOUCH TOUCH touchscreen gestures on the display, or connect to another monitor in order to CONTROL CONTROL use touchscreen gestures on dual screens. Connect a wireless mouse, USB thumb drive or other USB device to one of these USB 1-4 USB Type A connectors.
  • Page 13 Connect the antennas to these jacks in order to receive and transmit wireless ANTENNAS data. Antennas POWER Press to turn the PC on and off. DISPLAYPORT Connect a DisplayPort cable from the embedded computer to another display. Connect a wireless mouse, USB thumb drive or other USB device one of these USB-A USB Type A connectors.

  • Page 14: Connecting Ac Power

    Connecting AC power Connect one end of the AC power cord to the AC In jack on the back of the display. Connect the other end of the AC power cord to an AC outlet. Press the power switch. (The LED on the front of the display turns on.) NOTES: •...

  • Page 15: Setting Up The Wireless Mouse And Keyboard

    SETTING UP THE WIRELESS MOUSE AND KEYBOARD NOTE: The wireless mouse and keyboard are not included as a standard accessory for some countries. For initial setup and/or configuration, it may be easier to use a mouse and keyboard. Any standard wired or wireless mouse or keyboard can be connected through the display's USB ports.

  • Page 16: Using The Remote

    USING THE REMOTE The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the + and – ends of the batteries, sliding them in place and replacing the cover. To operate, point the remote at the display sensor at the bottom right-hand corner of the display.
  • Page 17 Remote buttons POWER Power: Switches the power on or puts the display into Standby. Home: Changes the active source back to the embedded PC. HOME Input: Toggles the Input Source menu on and off, which allows the user to change INPUT sources.
  • Page 18 Blank: Toggles between the source and a blank black screen. Dimming: Adjusts brightness level. Page 18...

  • Page 19: Using The Keypad

    USING THE KEYPAD The keypad, located on the side of the display, has the following buttons: Power button: Switches the power on or puts the display into Standby. Input button: Turns the Source menu on allowing the user to change sources. Saves changes/ selections if the OSD menu is on.

  • Page 20: Osd (On-Screen Display) Menu System

    OSD (ON-SCREEN DISPLAY) MENU SYSTEM The OSD provides the user the ability to control the display display. To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the display. Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu. Use the up and down arrows and OK button to select the item you would like to adjust.

  • Page 21: Picture

    Picture PICTURE BRIGHTNESS CONTRAST SHARPNESS NATIVE COLOR TEMPERATURE COLOR CONTROL GREEN BLUE STANDARD PICTURE MODE PICTURE RESET < > Adjust Enter Back Quit Brightness: changes the intensity of the image. Range: 0-100. (Default 70.) Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.

  • Page 22: Screen

    Screen SCREEN H POSITION V POSITION CLOCK CLOCK PHASE BLANK DIMMING ASPECT RATIO WIDE SCREEN RESET < > Adjust Enter Back Quit H Position: adjusts the horizontal position of the image. Range: 0-100. (Default 50.) V Position: adjusts the vertical position of the image. Range: 0-100. (Default 50.) Clock: adjusts the width of the image (For VGA input only).

  • Page 23: Audio

    Audio AUDIO SPEAKER INTERNAL AUDIO SOURCE HDMI 1 AUDIO RESET < > Adjust Enter Back Quit Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options include: Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal. Audio Source: selects the audio input source.

  • Page 24: Pip

    PIP MODE PIP INPUT PIP POSITION TOP-RIGHT PIP SWAP PIP SIZE SMALL PIP AUDIO MAIN PIP RESET < > Adjust Enter Back Quit PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No. PiP Input: selects the source input for the PiP window. Options include: VGA, component, video, HDMI1, HDMI2, HDMI3, HDMI4, Mondopad.

  • Page 25: Configuration 1

    Configuration 1 CONFIGURATION 1 LANGUAGE ENGLISH AUTO SOURCE USB HUB SWITCH AUTO CONFIGURATION RESET FACTORY RESET < > Adjust Enter Back Quit Language: switches the OSD menu language. Auto Source: When enabled, automatically searches for an active source. If no source is detected, the display will revert to the previously active source.

  • Page 26: Configuration 2

    Configuration 2 CONFIGURATION 2 OSD TURN OFF FREEZE OSD H POSITION OSD V POSITION OSD ROTATION PORTRAIT MONITOR INFORMATION < > Adjust Enter Back Quit OSD Turn Off: controls how many seconds the OSD menu remains on the screen Range: 5-120 (seconds). (Default: 10) Freeze: When enabled, freezes the image which is currently displayed.

  • Page 27: Advanced Option

    Advanced option ADVANCED OPTION GAMMA SELECTION MODE1 OVER SCAN IR CONTROL NORMAL KEYPAD CONTROL LOCK DDC/CI ADVANCED OPTION RESET < > Adjust Enter Back Quit Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode 2, Mode 3.

  • Page 28: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE SOLUTIONS No power • Verify the power cord is properly connected to the power outlet and to the display. • Verify the power switch is ON and that the Power button on the remote or keypad has been turned on (the front LED should be green).
  • Page 29 Keypad and/or mouse is not working • Make sure the batteries are installed in the proper orientation and are not dead. • Press the Connect button on the bottom of the keypad. • Verify the USB adapter is installed into the display's USB port. •...
  • Page 30 3) Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage. For additional troubleshooting support, please contact: InFocus Corporation - Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support...

  • Page 31: Limited Warranty

    If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or...
  • Page 32 (l) if the product is not used under normal operating conditions which are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced.
  • Page 33 InFocus will provide warranty service either (i) at an ASP location, where service is performed at the location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if...
  • Page 34 InFocus specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to InFocus.  In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within a defined period of time, normally five (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside of the shipping carton or a similar package affording an equal degree of protection.

  • Page 35: 安全注意事項

    安全注意事項 在將顯示器連接到電源之前，請仔細閱讀並遵守顯示器上提供的下述安全說明。如不遵守安全說明則可能導致火災、觸電或 人身傷害，並可能損壞或 損害對設備所提供的保護。 請妥善保存所有安全說明。 • 這種顯示器是非常沉重的，應由至少兩個人進行搬動和安裝。不要試圖自行搬動或安裝顯示器，否則可能造成傷害和/ 或損害。 • 搬動顯示器時，利用手柄和側板或底板始終牢固地把持住顯示器。不要把持頂板。 • 在搬動顯示器紙箱時，不要傾斜或倒置紙箱。始終將其保持在豎直方向。 • 在移動顯示器前，請斷開所有配件和電纜。 • 如果顯示器安裝在牆上，顯示器與牆壁之間的距離至少保持為 1.98 英寸（5釐米），以提供足夠的通風。 • 請參閱正確的開機和關機程式方面的指南。 • 遵循本手冊和顯示器上的所有警告和注意事項。 • 顯示器的安放位置遠離加熱和冷卻通風孔至少 4 英尺（1.2米）。 • 請勿堵塞通風口。顯示器放在通風良好且不阻礙進氣口和排氣口的地方。 • 不要在諸如散熱器、熱記錄器、火爐或其他發熱設備（包括放大器）等熱源附近安裝或使用顯示器或揚聲器。 • 不要將顯示器放置在陽光直射、潮濕、油膩或灰塵較多的地方，或顯示器可能接觸到雨水、煙霧或蒸汽的地方。 • 顯示器使用的電源線不應該靠近水，例如靠近浴缸、洗臉盆、廚房水槽、游泳池等。 • 不要在靠近水的地方使用顯示器的任何元件，包括揚聲器。警告：為減少火災或觸電的危險，請勿將本設備和該設備的 任何元件淋雨或受潮。 • 請勿摔落顯示器。 • 不要將液體灑在顯示器上。濺落的液體可能損壞顯示器。...
  • Page 36 • 只使用富可視公司指定的更換零部件。未經認可的代用品可能會導致火災、觸電或人身傷害，並可能導致保修失效。 • 在將顯示器安裝到牆上時，必須使用 M8 (12 毫米) 規格的螺栓。此外，安裝介面應符合北美 UL1678 標準。安裝方 式應牢固到足以承受顯示器的重量。 • 請遵照以下說明，以確保顯示器使用壽命期間的圖像品質。不遵守這些說明可能會影響保修。 • 鋰電池（PC 主機殼中的）注意事項：如果更換的電池類型不正確，則有爆炸的危險。更換的電池應為相同類型，或製 造商推薦的等效類型。根據當地 處理法規處理廢舊電池。 Page 36...

  • Page 37: Mondopad 65"顯示器I/O Port 介紹前/後面板

    MONDOPAD 65”顯示器I/O PORT 介紹前/後面板 USB ： 連接外部攝像頭。 Antennas TOUCH CONTROL VIDEO HDMI4 HDMI3 HDMI2 HDMI1 PC IN COMPONENT TOUCH TOUCH CONTROL 將USB纜線從顯示器連接至外部電腦，以便使用觸控模組。 通过 USB 线 CONTROL 缆，将另一台Display的触控模组分享至该设备，实现双触控功能. 連接無線鼠標、U盤等其他連接USB Type-A的設備，兼容USB2.0&USB3.0。 INF6522 Hardware Guide Page 37...
  • Page 38 VIDEO HDMI4 HDMI3 HDMI2 HDMI1 COMPONENT VIDEO 接受來自外部裝置（例如VCR或DVD播放器）的VIDEO信號。 HDMI4 接收外部裝置的HDMI信號。 HDMI3 接收外部裝置的HDMI信號。 HDMI2 接收外部裝置的HDMI信號。 HDMI1 接收外部裝置的HDMI信號。 接收來自外部裝置（例如電腦）的類比RGB訊號。 接收來自外部裝置（例如DVD播放器,HDTV裝置或雷射光碟播放器）的色 COMPONENT 差視訊(YPbpr)訊號。 Page 38...
  • Page 39 ANTENNAS 無線數據的接收和發射。 Antennas POWER 開啟/關閉主機。 DISPLAYPORT 將內部信號通過DISPLAYPORT線纜輸出至另一台顯示器上。 連接無線鼠標、U盤等其他連接USB Type-A的設備，兼容 USB-A USB2.0&USB3.0。 連接到乙太網絡 (10/100/1000 Mbps)。 RJ45 通過遠程操作控制設備。 RS232 PC AUDIO 連接 PC 模組的音訊源中的一行。 LINE IN 接收來自外部裝置（例如iPod播放器）所發出的音頻訊號。 AUDIO IN1 接收來自外部裝置（例如DVD播放器）所發出的音頻訊號。 AUDIO IN2 連接到外接式立體聲喇叭。 AUDIO OUT INF6522 Hardware Guide Page 39...
  • Page 40 開啟或關閉顯示器。 功能1：切換屏幕顯示Source功能。2：選取/確認OSD功能表中的選項。 開啟或關閉OSD 功能表。 在OSD 功能表中向上捲動瀏覽各個設定和選項。 在OSD 功能表中向左捲動瀏覽各個設定和選項。 當OSD菜單關閉時，這個按鈕降低音 量。 在OSD 功能表中向右捲動瀏覽各個設定和選項。當OSD菜單關閉時，這個按鈕提高音量。 音量減小鍵，在OSD 功能表中向右捲動瀏覽各個設定和選項。 Page 40...
