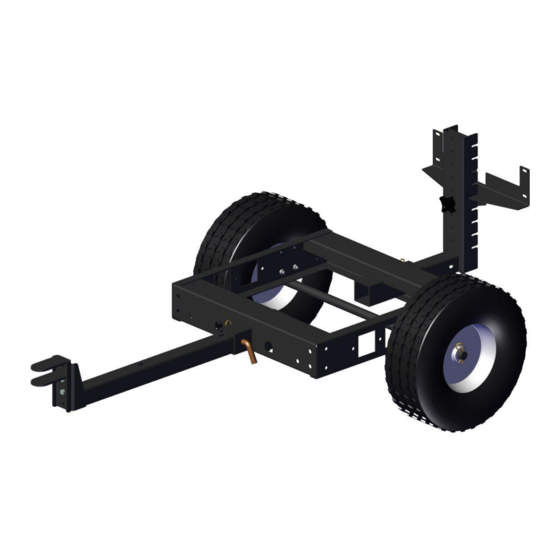

Summary of Contents for Master MFG SFFK-4060SL-MM
- Page 1 180 Lake Ave North Paynesville, MN 56362 Phone: 320-340-6464 www.master-mfg.com ASTER 40/60 G ALLON RAME RAILER ANUFACTURING Part Number SFFK-4060SL-MM| Rev 3 Jan. 2018...
-
Page 2: Tools Required For Assembly
Note: Do not return product to the distributor/dealer for warranty work. Call Master Manufacturing at 320-340-6464 for any warranty work or replacement parts. INTRODUCTION Your Master Manufacturing Flex Frame Trailer Kit has been manufactured to provide years of dependable and efficient The purpose of this manual is to assist use. -
Page 3: Kit Contents
FLEX FRAME TRAILER KIT KIT CONTENTS... - Page 4 ASSEMBLY INSTRUCTIONS The Trailer Kit has been specifically designed to attach easily to the 40 and 60 Gallon Master Manufacturing Flex Frame. Please refer to the figures in this manual for reference to the following assembly instructions. Figure 2 Figure 1 Attach the Tires (TWA16X6.50-8) to the Axle Turn Frame and Tank (not shown) with the Hairpins (P-7925).
- Page 5 FLEX FRAME TRAILER KIT Figure 5 Figure 6 Secure the 3/8” Carriage Bolt to the Insert the Boom Post (32-100104) into the Rear Receiver. Fasten the Boom Post Boom Mount (32-100103) with the Push using the 5/8” Bent Pin (722HP), and Nut (33-100041).
