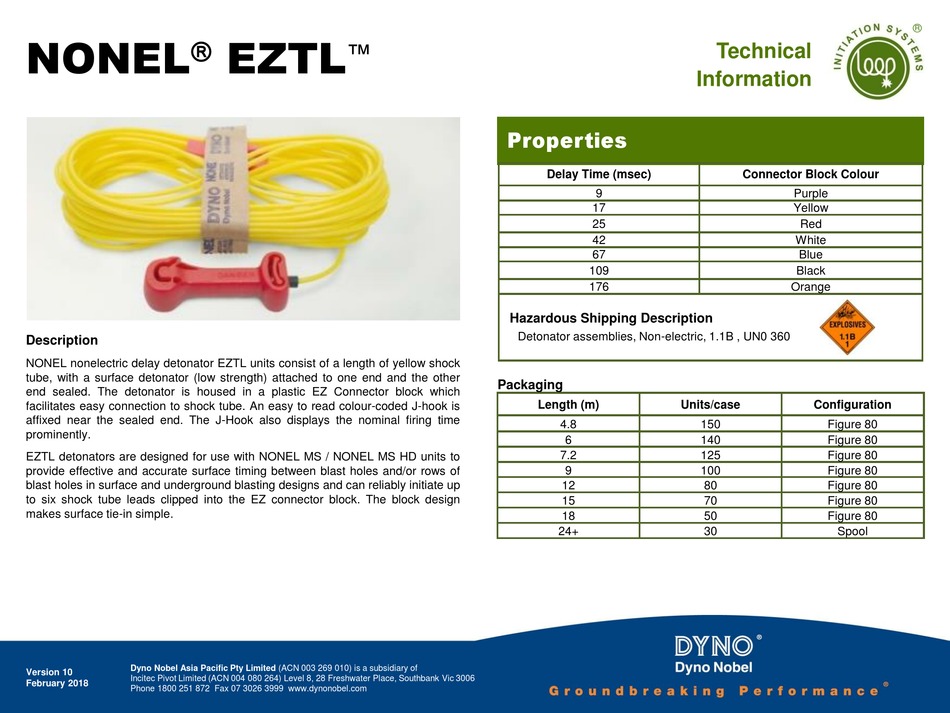

Dyno NONEL EZTL Technical Information

NONEL


Description

NONEL nonelectric delay detonator EZTL units consist of a length of yellow shock
tube, with a surface detonator (low strength) attached to one end and the other
end sealed. The detonator is housed in a plastic EZ Connector block which
facilitates easy connection to shock tube. An easy to read colour-coded J-hook is
affixed near the sealed end. The J-Hook also displays the nominal firing time
prominently.
EZTL detonators are designed for use with NONEL MS / NONEL MS HD units to
provide effective and accurate surface timing between blast holes and/or rows of
blast holes in surface and underground blasting designs and can reliably initiate up
to six shock tube leads clipped into the EZ connector block. The block design
makes surface tie-in simple.
Dyno Nobel Asia Pacific Pty Limited (ACN 003 269 010) is a subsidiary of
Version 10
Incitec Pivot Limited (ACN 004 080 264) Level 8, 28 Freshwater Place, Southbank Vic 3006
February 2018
Phone 1800 251 872 Fax 07 3026 3999 www.dynonobel.com
EZTL
™

Properties

Delay Time (msec)
9
17
25
42
67
109
176

Hazardous Shipping Description

Detonator assemblies, Non-electric, 1.1B , UN0 360

Packaging

Length (m)
4.8
6
7.2
9
12
15
18
24+
Technical
Information
Connector Block Colour
Purple
Yellow
Red
White
Blue
Black
Orange
Units/case Configuration
150 Figure 80
140 Figure 80
125 Figure 80
100 Figure 80
80 Figure 80
70 Figure 80
50 Figure 80
30 Spool
®
