Bendix CVS SmarTire TPMS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
SmarTire
TPMS Low Frequency (LF) Tool User Manual
Initiate LED
Low Battery
LED
On/Off/
Mode Select
Button
Front
®

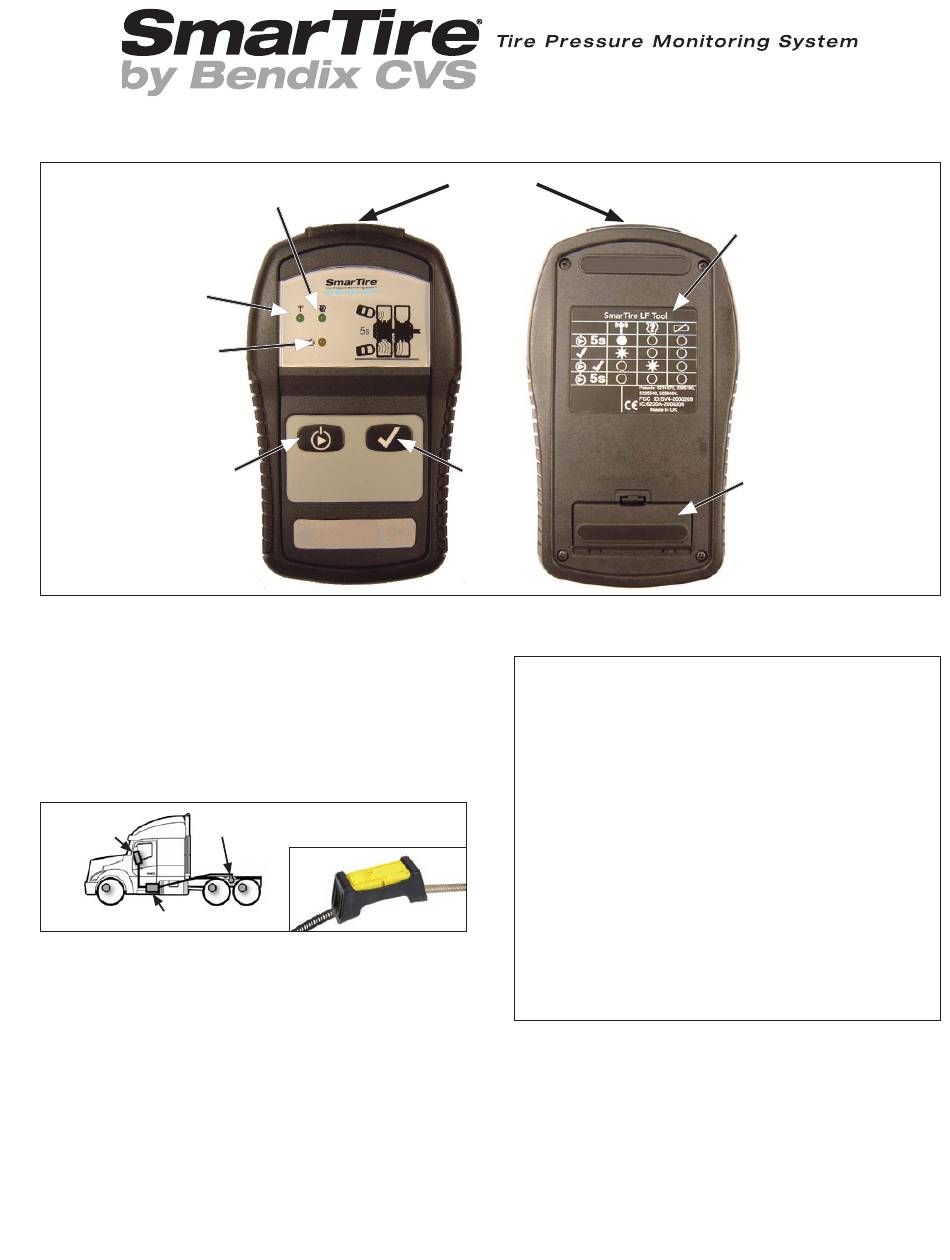

THE SMARTIRE
TPMS BY BENDIX CVS LOW FREQUENCY (LF) TOOL SHOWING BUTTONS AND LEDs

1. INTRODUCTION

®
The SmarTire
Tire Pressure Monitoring System (TPMS)
by Bendix CVS consists of sensors (mounted using steel
bands onto the rim of the wheels), an antenna, receiver/
Electronic Control Unit (ECU), and dash display unit or
OEM integrated display.
Dash
Antenna
Display
Receiver/ECU
Each tire sensor has a unique ID code and it is
important that the system knows the ID of the sensor
used at each tire location on the vehicle.
The SmarTire Low Frequency (LF) tool is a hand-held
device used to communicate with SmarTire-brand tire
pressure monitoring system sensors.
This document will describe how the tool can be used
to program one or more new sensor ID codes into the
receiver (for example, when replacing a sensor or after
repairs/tire rotation, etc.); and how to check that all IDs
are in the expected locations when conducting a vehicle
inspection. (See BW2799 for information about other
procedures, such as loading a system configuration.)
Learn LED
A Sensor is Installed
Inside Each Tire
Transmitter
Initiate/
Learn
Button
CONTENTS
1. Introduction . . . . . . . . . . . . . . . . . . . . .1
2. Overview of the Tool Functions . . . . . . . . . . .3
3. Getting Started . . . . . . . . . . . . . . . . . . .3
4. Using the SmarTire LF Tool . . . . . . . . . . . . .3
®
®
Diagnostic Software. . . . . . . . . . . . .4
Dash Display and the Tool. . . . . . . . . . . . . .6
NOTE: The SmarTire LF tool is compatible ONLY with
SmarTire-brand commercial vehicle tire sensors.
NOTE: For dual-wheel assemblies, it is strongly
recommended that the tire valve stems - where sensors
are typically located - be arranged 180° from each other
to avoid errors when communicating with the sensors.
Quick Guide
Battery
Storage
Back
®
. . . . . . . . . . . . . . . . . .9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmarTire TPMS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bendix CVS SmarTire TPMS

Summary of Contents for Bendix CVS SmarTire TPMS

  • Page 1: Table Of Contents

    Button Button Front Back ® THE SMARTIRE TPMS BY BENDIX CVS LOW FREQUENCY (LF) TOOL SHOWING BUTTONS AND LEDs 1. INTRODUCTION CONTENTS ® The SmarTire Tire Pressure Monitoring System (TPMS) 1. Introduction .....1 by Bendix CVS consists of sensors (mounted using steel 2.
  • Page 2 GENERAL SAFETY GUIDELINES WARNING! PLEASE READ AND FOLLOW THESE INSTRUCTIONS TO AVOID PERSONAL INJURY OR DEATH: When working on or around a vehicle, the following guidelines should be observed AT ALL TIMES: ▲ Park the vehicle on a level surface, apply the ▲...

  • Page 3: Overview Of The Tool Functions

    ON/OFF button. TRANSMITTER 3. GETTING STARTED The SmarTire TPMS Low Frequency (LF) tool is powered by a standard 9-Volt battery. To install the battery, open the battery access panel on the back of the tool and connect the supplied battery to the 9-Volt battery connector.

  • Page 4: Reprogramming Sensor Id Codes Using The Smartire

    Setup mode by pressing the Set provides the highest level of diagnostic support for the Up icon displayed here. SmarTire TPMS system. The latest version of the software is available for download at www.bendix.com. Select which sensor you would like to replace by clicking on the tire icon for that position.
  • Page 5 ® Hold the SmarTire TPMS Low Frequency (LF) tool “Learn process may fail if sensors are relocated or swapped and the configuration is not written to ECU. with the transmission end pointed towards the tire’s sidewall adjacent to the sensor ’s location Would you like to continue the learn process anyway?”...

  • Page 6: Programming Sensor Id Codes Using The Dash Display And The Tool

    6. PROGRAMMING SENSOR ID CODES To enter the Setup Mode, on the dash display press the center button repeatedly until the TPMS Ready screen USING THE DASH DISPLAY AND THE TOOL is displayed. IMPORTANT As stated earlier, it is important to make sure that ®...

  • Page 7: To Have The System Learn A Single Tire Position

    6.1 TO HAVE THE SYSTEM LEARN A SINGLE 6.1.5 The technician has three (3) minutes to use the SmarTire Low Frequency (LF) Tool to send a TIRE POSITION request to the sensor inside that tire, to transmit its ID. IMPORTANT To do this, hold the SmarTire LF tool with the transmission end pointed towards the tire’s sidewall As stated earlier, it is important to make sure that...

  • Page 8: To Have The System Learn All The Tire Positions

    6.2 TO HAVE THE SYSTEM LEARN 6.2.2 The next screen will prompt you to choose to overwrite the existing profile. ALL THE TIRE POSITIONS IMPORTANT As stated earlier, it is important to make sure that ® there is no loss of power to the SmarTire TPMS Select “Yes”...

  • Page 9: Troubleshooting

    For more in-depth troubleshooting, consult the SmarTire ® two (2) inches from the tire during the procedure – and Tire Pressure Monitoring System (TPMS) by Bendix CVS not touching the rim. Operator’s Manual (BW2799), available for download from the Bendix website www.bendix.com.
  • Page 10 FCC NOTICE EUROPEAN REGULATIONS This device complies with Part 15 of the FCC Rules. The This device complies with R&TTE 1999/5/EC through SmarTire ® TPMS Low Frequency (LF) tool is a Part 15 harmonized standards (EN301 489-1 and EN330 330-1). low-power transmitter below 1705 kHz.
  • Page 11 NOTES...
  • Page 12 ® 901 Cleveland Street • Elyria, Ohio 44035 • 1-800-AIR-BRAKE (1-800-247-2725) 6900 Graybar Road #2110 • Richmond, British Columbia, Canada V6W 0A5 • 604-242-7400 BW2820 ©2015 Bendix Commercial Vehicle Systems LLC, a member of the Knorr-Bremse Group • 11/15 • All Rights Reserved • www.bendix.com...
