Sengate TA-130-100 Manual Instruction

100M/150M/200M/250 /300
Thanks for purchasing
PRODUCT PARTS：
PARTS DESCRIPTION

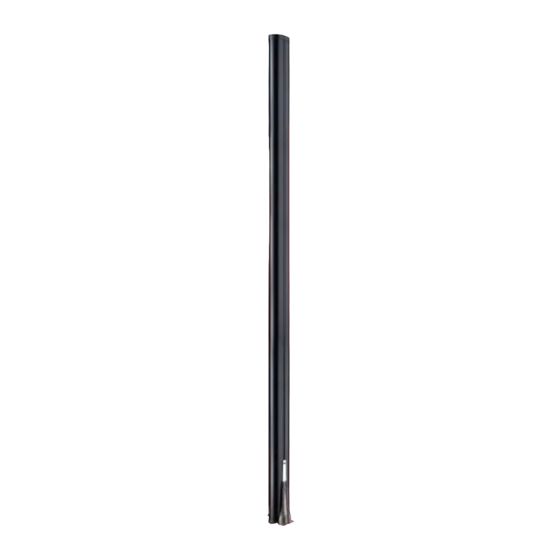

single-sided tower
2
INSTALLATION METHOD：
1. In one of the two top covers,
2. Place the nuts in the top covers and insert the hex screw, screwing them slightly. Put the top cover onto the aluminium profile,
and tighten bolts fully.
3. Slide the hex screw along the alum-extrusion and then fix the side brackets with nut to it.
4. After the alum and side brackets installed on the ground, according to priority, fix the heating unit, back plate of beam unit then
the supplied tamper switch near the top of the alum-extrusion.
5. Be sure the tamper switch should be flush with the arm of tamper switch rests above the top line of the alum.
tamper switch
back plate of
beam unit
heating
unit
( the priority of installation )
TA-120-100 / TA120-150 / TA120-200 / TA120-250 / TA120-300
TA-130-100 / TA130-150 / TA130-200 / TA130-250 / TA130-300
product. Read this instruction manual before using the product to make sure that you u e it correctly.
top cover
tamper switch
alum-extrusion
U-shaped
cover
side bracket
top cover
double-sided tower
drill holes in the marked areas to allow
hex screw
(M4x10)
heating units
( optional )
M M GROUND TOWER
floor base unit x1
anchor bolts
(M10x120) x4
hex nuts
(M10) x12
for wiring.
hex screw
nuts (M4)
(M8x16)
1
MANUAL INSTRUCTION
s
Optional Accessory
Heating Unit : HT-120
sleeve anchors
(3/8"x 3") x4
flat washer
(M10) x4
hex screw
(M8x16)
nuts (M8)
the arm of tamper switch
rests above the top line
of the alum.
the edge
should be
flush-with.
