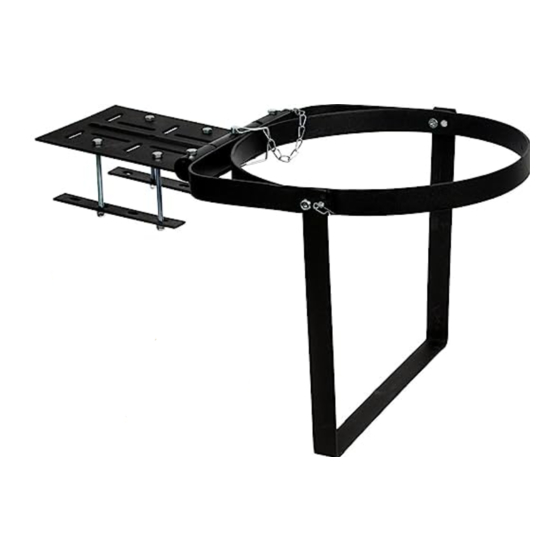

Atv flip single bucket carrier

Advertisement

Quick Links

A
TM
Congratulations on your purchase of Komodo ATV Flip Single Bucket Carrier. We build the
carrier to be durable for years of trouble free use. We provide you the innovative design which
allows the carrier to be used for standard 5 gallon buckets and folds up when not in use. With
proper installation and maintenance the carrier will be a reliable tool providing greater use and
#ATVSBCF
A
T
V
T
V
F
F
S
S
will increase the value of your ATV.
L
I
P
L
I
P
I
N
G
L
E
B
U
C
I
N
G
L
E
B
U
C
K
E
T
C
A
R
R
I
K
E
T
C
A
R
R
I
Owner's Manual
Owner's Manual
E
R
E
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATVSBCF and is the answer not in the manual?

Questions and answers

Summary of Contents for komodo ATVSBCF

  • Page 1 Owner's Manual Owner's Manual Congratulations on your purchase of Komodo ATV Flip Single Bucket Carrier. We build the carrier to be durable for years of trouble free use. We provide you the innovative design which allows the carrier to be used for standard 5 gallon buckets and folds up when not in use. With proper installation and maintenance the carrier will be a reliable tool providing greater use and will increase the value of your ATV.
  • Page 2 Read, study, and follow all instructions before attempting to use these devices. Failure to follow instruction or head warnings may result in personal and/or property damage. Do not attach Single Bucket carrier where it will interfere with safe operation of ATV. Caution: attaching Single Bucket carrier where it may extend out beyond ATV may cause it to get caught on passing objects, care should be taken when Bucket Carrier is in down position and ATV is...
  • Page 3 No. Qty. Description Hinged Bucket Plate Hinged Pin Hinged Bucket Frame Bucket Support Strap 6mmX38mm Hex Bolt 6mmX45mm Snap Pin Chain Lanyard 6mm Lock Nut 6mmX20mm Clevis Pin & Clip 6mmX20mm Hex Bolt & Nut Mounting Plate (not included) 6mmX80mm Hex Bolt 6mm Flat Washer 6mmX40mm Pin (not included)
  • Page 4 Using two mounting plates (11), four bolts (12), four nuts (8), and eight washers (13) secure the Bucket plate (1) to the ATV rack, as shown. Note: do not cantilever the mounting plate more than 1” beyond the rack. The brackets should be placed where they straddle the factory rack tube.
