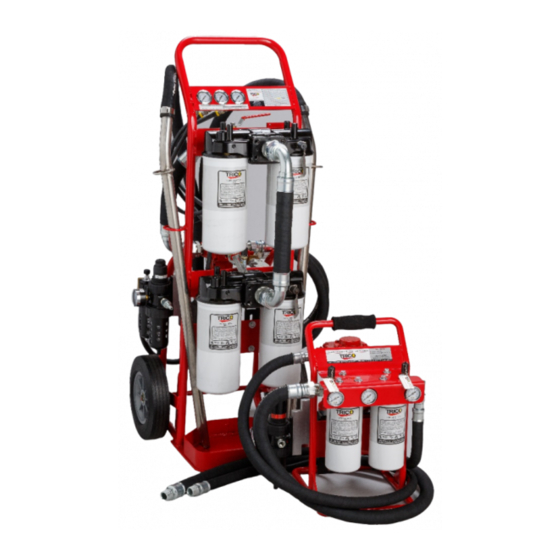

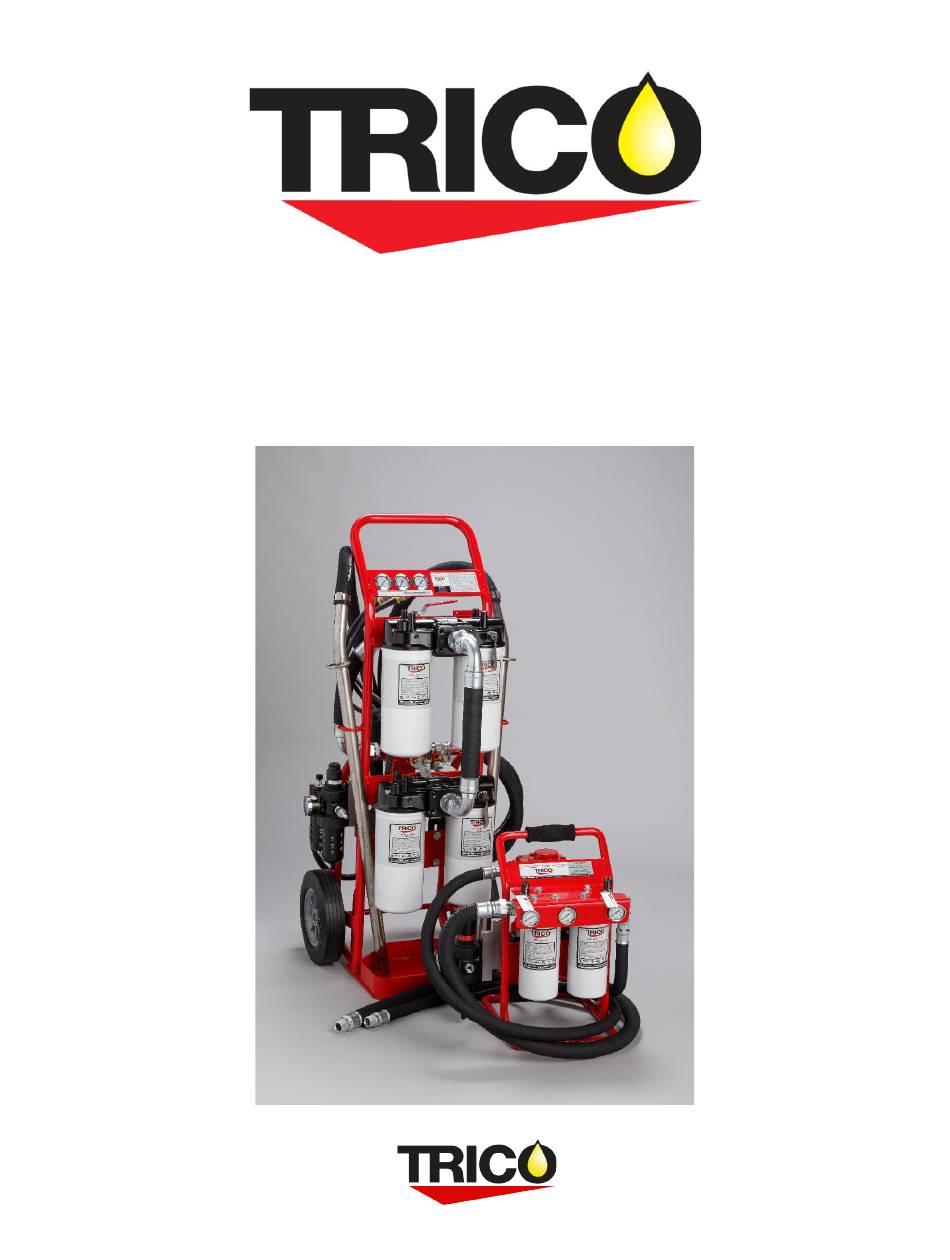

- Page 1 Pneumatic High-Viscosity Filtration System Instruction Manual P/N: 61512 – 02/21 REV D 1235 Hickory Street; Pewaukee, WI 53072 For Customer Support: 800-558-7008...
- Page 2 Trico’s Pneumatic High-Viscosity Gear and Lube Oil Filtration Systems are specifically designed for high viscosity fluids associated mainly with gear oils and can filter up to 7500 SUS @ 100°F.
-
Page 3: Design Information
Due to the rate of flow of oils across different materials there is always a potential to build up a static charge. Static discharge can cause an explosion if near, or around, open flammable fluids. Bonding and ground safety procedures must be used when operating in hazardous duty environments or when there is a danger of static discharge. - Page 4 A pneumatic motor slows down when load increases. Its torque increases at the same time until it matches the load. Therefore, the Trico High Viscosity Pneumatic Filtration system continues to provide increased torque until it stalls due to fluid viscosity within the pump, then maintains the stalled condition and can remain there for indefinite periods without harming the motor.
- Page 5 DISCHARGE PORT FOR CART 3. Spin-on filters are hand tightened during assembly at the Trico factory, tighten filters with filter/strap wrench, at the top of the filter where they are the strongest, to form a proper seal with the gasket around the filter and filter head.
- Page 6 For most accurate results, do not sample into an open bottle. Use a vacuum bottle sampler with plunger removed. 16. The 3 GPM filter cart (36933) is equipped with a bypass valve and piping. This valve should be kept in the fully closed position when using the filters. Use the bypass for removal of old/used oil only.
- Page 7 All Trico particulate filter medias are compatible with these types of fluids and should be used in leu of the Trico water removal filters. However, the high specific gravity and low vapor pressure of these fluids can create a potential for severe cavitation; therefore, 1235 Hickory Street;...
- Page 8 60% oil and 40% water. All Trico particulate filter medias are compatible with these types of fluids and should be used in lieu of the Trico water removal filters. Filters should be sized conservatively for water emulsions since they are non- Newtonian and their viscosities are a function of shear.
- Page 9 36978 Grounding and Binding The Trico High-Viscosity Filtration Systems are not rated for a hazardous duty environment due to possible static discharge, use proper bonding and grounding per National Fire Protection Code 77. A Bonding system connects various pieces of conductive equipment together to keep them at the same potential.
- Page 10 20/18/14 Determining the ISO Cleanliness level of equipment requires analysis of the running lubricating oil. Trico’s oil analysis laboratories can provide an accurate indication of the ISO Cleanliness level of lubricating oil before and after filtration. Each number in the ISO code represents the micron range of particulate in which the count lies within (R ).
- Page 11 TEMPERATURE VS. VISCOSITY 1235 Hickory Street; Pewaukee, WI 53072 For Customer Support: 800-558-7008...
-
Page 12: Troubleshooting
Restricted exhaust down or runs at low speed damage causing restriction Motor runs Hot Bearing failure Have motor serviced TRICO CORPORATION 1235 Hickory Street Pewaukee, WI 53072 Phone: 800.558.7008 or 262.691.9336 www.tricocorp.com 1235 Hickory Street; Pewaukee, WI 53072 For Customer Support: 800-558-7008... - Page 13 1-1/4” Hydraulic Hose – From Pump to Bypass Valve Not Shown 22489 1” Hydraulic Hose – Set of 2 Stainless Steel Wands Replacement LARGE Filters for 36933 High-Viscosity Filtration Cart Part Number Particulate Filter - 3 Micron Microglass Spin On Beta > 200 Absolute 36972 Particulate Filter - 10 Micron Microglass Spin On Beta >...
- Page 14 TRICO HIGH-VICOSITY PORTABLE HAND-HELD FILTRATION SYSTEM NOTE: Electronic System Shown, but same replacement parts apply Item # Part Number Description 16183 Filter Gauge, 100 PSI, 1/8” MNPT 36100 1/8” MNPT Sample Port 21007 3/4” Hydraulic Hose - From Filter Head Assembly to Pump 36978 Particulate Filter - 10 Micron Microglass Spin On Beta >...
