Summary of Contents for Ingenico group AXIUM EX6000

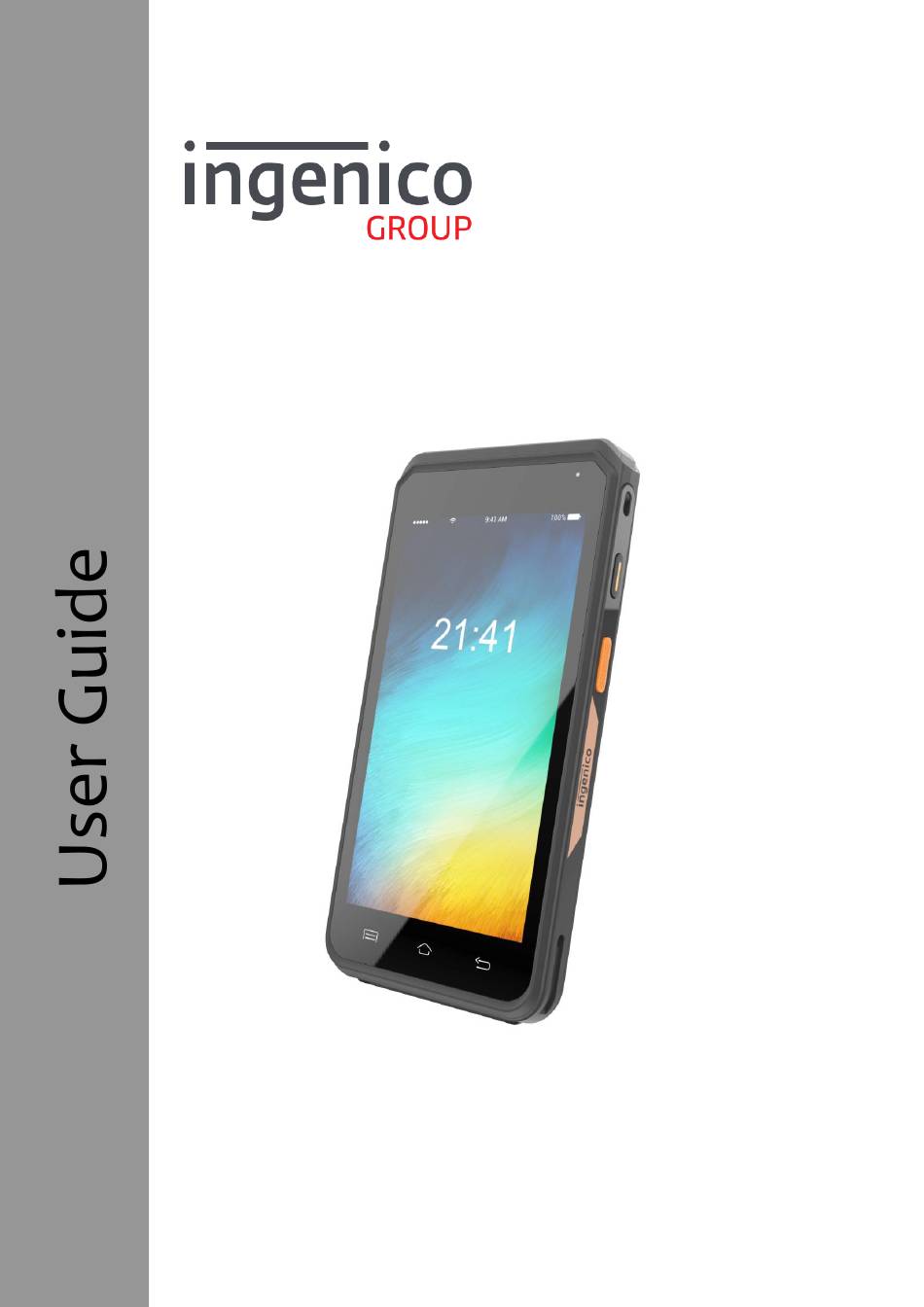

- Page 1 Model：AXIUM EX6000 WWW.ingenico.com 28-32,Boulevard de Grenelle, 75015 PARIS - FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
-
Page 2: Table Of Contents
Contents Introduction ........................3 Presentation ........................4 Content of the box ....................4 Overview of AXIUM EX6000..................5 Keypad Functions ...................... 7 Touch Panel ....................... 7 Use of the terminal ......................7 Power on/Power off the terminal ................8 Reading cards ......................9 Usage of Front scanner ................... -
Page 3: Introduction
1. Introduction We hope that you will be fully satisfied with your new AXIUM EX6000 terminal. Read thisguide to understand and make the best use of your terminal. It presents you the necessary information about use,installation,maintenance,safety security recommendations. WARRANTY/SECURITY /GARANTIE/SÉCURITÉ... -
Page 4: Presentation
2. Presentation 2.1 Content of the box AXIUM EX6000 terminal Power adapter Abattery pack This user guide WARNING/ATTENTION The power supply unit provided with your equipment is specially designed for ingenicoAXIUM EX6000 terminal. Do not use any other power supply.The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. -
Page 5: Overview Of Axium Ex6000
2.2 Overview of AXIUM EX6000 1. Volume Keys 2. Scan Key 3. LCD and touch screen 4.USB Type-C connector 5.Smart card reader 6. Indicate LED of front scanner 7. Front scanner 8. Illuminate lamp of front scanner 9.Magnetic card reader 10.Contactless landing zone... - Page 6 13. LEDs for Contactless Card 14. Speaker 15. SAM card slot16. Micro SD slot 17. Battery socket18. Base Charging interface- 19. Flash20. Rear camera 21. SIM 1 card slot22.SIM 2 card slot 23.Battery compartment24.Lanyard hole 25. Base Charging interface+ Weight 261g (including battery) Dimension (L x W x H) 152.2 X 77.1 X 17.5mm...
-
Page 7: Keypad Functions
The terminal has a 5.0 inchscreen,there are three capacitive keys at the bottom of the screen,Menu,Homeand Back keys. 2.4 Touch Panel The AXIUM EX6000 is equipped with touch panel that allows you capture functions and menus by your finger or use a stylus. 3. Use of the terminal... -
Page 8: Power On/Power Off The Terminal
3.1 Power on/Power off the terminal To power on: Make sure the terminal battery is correctly installed and Press <Power> button for about 1s until the display is turned up. To power off: Press <Power> button for more than 2s until the display show the following figure, then press <Power off>. -
Page 9: Reading Cards
3.2 Reading cards Magnetic stripe card The card can be read bi-directionally, with the stripe facing the terminal. Use a regular movement in order to ensure a reliable card reading. Contactless card Bring the card firmly up to the active zone. -
Page 10: Usage Of Front Scanner
3.3 Usage of Front scanner Press the scan button to start scanning. After starting the barcode scanning, a red laser beam will be emitted from the window in front of the terminal. Align the red light beam with the bar code you want to scan ... -
Page 11: Installation
4. Installation 4.1 Recommendations Operating conditions Ambient temperature* From -10℃ to +50℃ Max relative humidity From 10%to 90%, Non-condensing (*)Excluding battery charging Battery charging conditions Ambient temperature From 0℃ to +40℃ Storage conditions Ambient temperature From -20℃to +70℃ Max relative humidity From 5% to 90%, Non-condensing 4.2 Installing modules 4.2.1 SAM/SIM1/SIM2... - Page 12 SAM and SIM1,SIM2 are identified by the engraved marks on the lower housing. When introducing a SAM/SIM in its slot, be sure to put the cut corner as indicated on the picture. Close the trapdoor. ADVICE SIM and SAM cards share the same form factor , please do be careful to the SIM card socket position.
-
Page 13: Battery
4.2.2 MicroSD Memory Card WARNING/ATTENTION Switch off the terminal before opening the trapdoor. Mettre hors tension le terminal avant d’ouvrir la trappe. MicroSD connector is located inside the terminal, in a closed compartment. Turn the terminal and remove the trapdoor. ... -
Page 14: Visual Impaired Accessory
Take the battery pack included in the box. Locate the battery pack connector beside the battery compartment . Plug the battery pack connector according to the connector locating system. Place the battery pack in its compartment. ... -
Page 15: Recommendations
Powering down the AXIUM EX6000 Disconnect the AXIUM EX6000 power supply block adapter from the electrical mainsnetwork. Lithium cell The AXIUM EX6000 is fitted with an internal lithium cell which should only be accessed by a qualified technician. Battery ... - Page 16 CAUTION/ATTENTION RISK OF EXPLOSION BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. RISQUE D'EXPLOSION LA BATTERIE EST REMPLACÉE PAR UN TYPE INCORRECT. ÉLIMINEZ LES PILES UTILISÉES CONFORMÉMENT AUX INSTRUCTIONS. Electrical power supply network The electrical outlet must meet the following criteria: ...
- Page 17 10 Years China RoHS symbol BSMI(Taiwan) PSE Mark(Japan) Recycle in accordance with the waste electronic & electrical equipment directive Underwriters Laboratories Inc (US Compliance) Made from recyclable material Low density version of Polyethylene (LDPE) Chlorinated Polyethylene ( CPE) Risk of explosion if the battery is incorrectly replaced or is placed in a fire Dispose of batteries at a hazardous waste collection site or recycling facility...
-
Page 18: Security Of Your Terminal
SAM/SIM1/SIM2Readers compartment The trapdoor for battery, SAM/SIM1/SIM2, readers located underneath the terminal, must be in place during the normal operation of the terminal.See sections “Installing modules” and “Installing the battery”. On airplanes Your terminal must be switched off by removing the battery pack. Remove the battery from the terminal when on an airplane. -
Page 19: Fixed Installation
You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy.The terminal must never be put in or left at a location where it could be stolen or replaced by another device. -
Page 20: Cleaning The Terminal
5.4 Cleaning the terminal Unplug all the wires from terminal. Good rules for proper cleaning of the terminal are: Use a soft cloth that is very slightly soaked with soapy water to clean the outside of terminal. Do not clean the electricalconnections. ... -
Page 21: Standard
6. Standard FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 22 Le présent appareil est conforme aux CNR d'ISEDC applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: l’appareil ne doit pas produire de brouillage, et l'appareil doit accepter toutbrouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement. Under Innovation, Science and Economic Development Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Innovation, Science and Economic Development Canada.
- Page 23 avant qu’un nouvel appareil soit disponible { la vente au public. , il doit être testé et certifié à l’ISEDC qu’il ne dépasse pas la limite d’exposition établie par l’ISEDC, les tests pour chaque appareil sont effectués dans des positions et des emplacements comme l’exige l’ISEDC.
-
Page 24: Troubleshooting
7. Troubleshooting Q:The terminal cannot be started. A: The device might be under low energy status or the program may be damaged. Please make sure the power is enough and thenrestart your device.If it still fails, please contact our customer service department for help. Q: Transaction Processing Failure A: Following reasons are likely to cause transaction failure: damaged magnetic card or smartcard SAM card, damaged card reader, improper operation of card... - Page 25 This Document is Copyright © 2020 by ingenico Group. ingenico retains full copyright ownership, rights and protection in all material contained in this document. The recipient can receive this document on the condition that he will keep the document confidential and will not use its contents in any form or by any means, except as agreed beforehand, without the prior written permission of ingenico.
