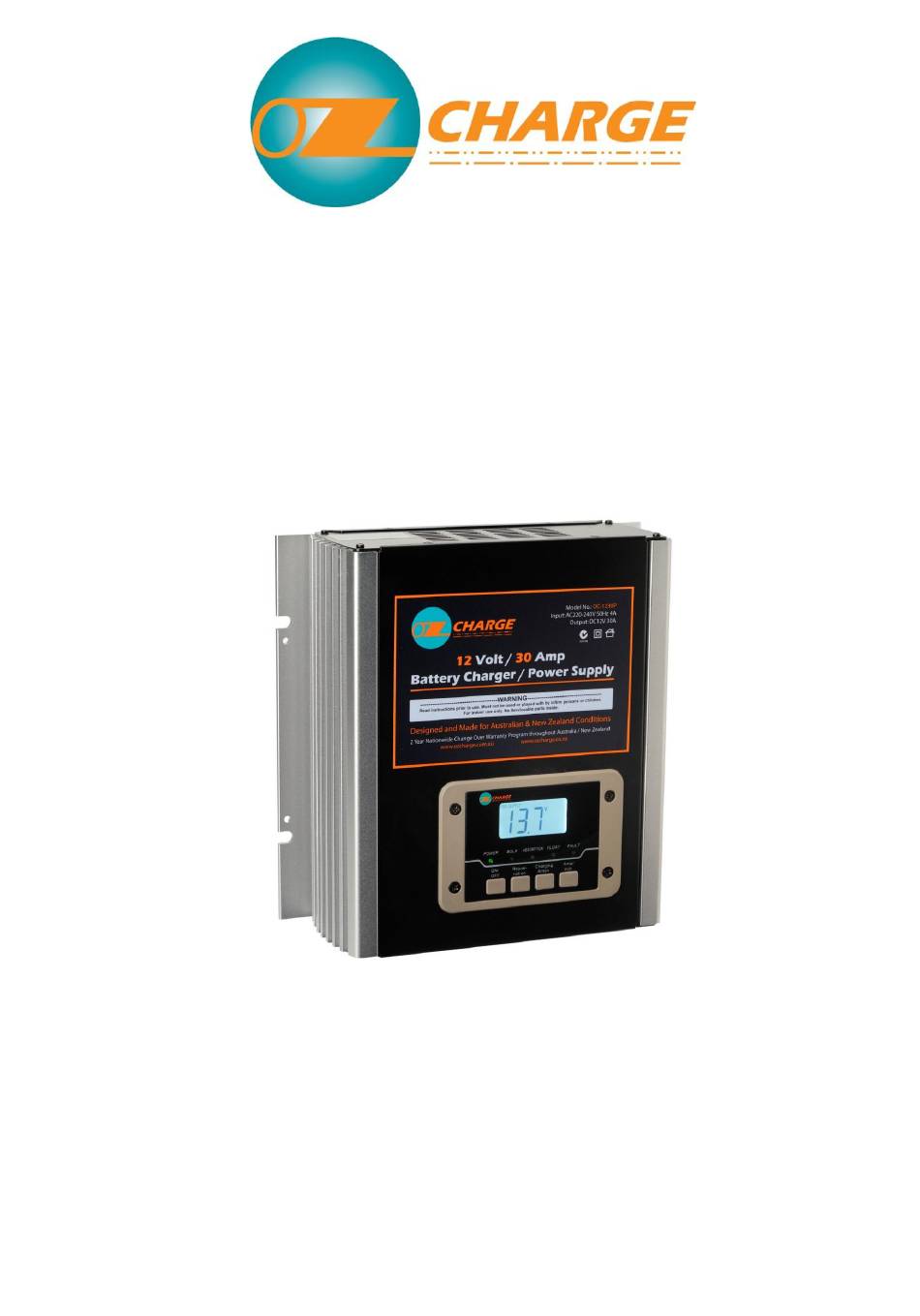

Model Number: OC-1230P
Fanless 12Volt 30Amp Switched-Mode
Microprocessor Controlled
Programmable Automatic Battery
Charger and Power Supply
AS/NZS 60335.2.29 (21.102) compliant
You are now the owner of one of the most
advanced, reliable and feature packed
chargers available today.
Please take the time to read and
understand this manual, even though it
may have already been installed for you.
-
1-
Advertisement
Table of Contents
Summary of Contents for OzCharge OC-1230P
- Page 1 Model Number: OC-1230P Fanless 12Volt 30Amp Switched-Mode Microprocessor Controlled Programmable Automatic Battery Charger and Power Supply AS/NZS 60335.2.29 (21.102) compliant You are now the owner of one of the most advanced, reliable and feature packed chargers available today. Please take the time to read and understand this manual, even though it may have already been installed for you.
- Page 2 Installation and User’s Manual. FEATURES Congratulations on purchasing an OzCharge fully automatic switched-mode battery charger. OzCharge battery chargers comprise of the latest technology and incorporate the following features: High efficiency, high frequency Switched Mode with pulse charge output ...
-
Page 3: Control And Indicators
CONTROL AND INDICATORS 1. LCD. Shows software version when first connected. Constantly shows the battery voltage or charging amps current depending on the Amp/Volt button (see point 7 below) when AC mains is applied. Display and backlight automatically extinguishes when there is no AC mains present after one minute. -
Page 4: Installation
INSTALLATION This product is designed to be installed in a secure, hardwired situation only. Because this charger has no fan it is ideal to mount it in an upright position to take advantage of convection cooling. Nothing should located be within 100mm (4 inches) of the main charger unit to ensure natural cooling takes place. - Page 5 DIP SWITCH PROGRAMMING The default out-of the-box factory setting will probably suit most new installations which are; Absorbed Glass Mat (AGM) battery type Charge Voltage: 14.5V Float Voltage: 13.7V DIP switch: 1 = Off, 2 = Off, 3 = On, 4 = Off, 5 = On, 6 = Off, 7 = On, 8 = On. If your battery type is different, or you have replaced the battery these are the available adjustments;...
- Page 6 RECOMMENDED BATTERY CAPACITY & CHARGE CURRENT This product is designed to be installed in a hardwired situation therefore the battery capacity will normally be a fixed size and determined by the vehicle manufacturer. If the battery was supplied and installed in a caravan or RV, ask the manufacturer what make and model they have supplied as the battery is often out of sight and/or in a protective box.
-
Page 7: The Charging Process
OPERATING INSTRUCTIONS This OzCharge battery charger has been designed to be easy to operate and very simple to use. Please refer to the operating instructions below. 1. Pre-Charge Check (a) Check the Battery Electrolyte level (Non-sealed Batteries). If necessary, remove the vent caps and add distilled water so the levels are halfway between the upper and lower fill lines. - Page 8 Rejuvenation mode (EXTEND YOUR BATTERY LIFE) Your OzCharge battery charger provides a unique battery “Rejuvenation” function. What does this feature do? The Rejuvenation mode has been proven to break down the crystalline form of lead sulphate (commonly called “Sulphation” pronounced Sul-Fay-Shon) within the battery cells which helps extend your battery life.
-
Page 9: Charging Stages
CHARGING STAGES Note: The Charger automatically switches off after 24 hours if the Bulk charge cycle is not completed. CHARGER SPECIFICATIONS Input: 220~260Vac; 50Hz; Battery is not less than 3.0V (unit will start-up in ‘Power Supply’ mode if lower than 3.0V) Charging starting conditions: Rated output: 13.8Volts at 30Amps DC... - Page 10 If the Authorised Supplier and / or OzCharge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion.
Need help?
Do you have a question about the OC-1230P and is the answer not in the manual?
Questions and answers
I have a Ozcharge 1230P and tried to charge charging amps from 10 to 30 amps which I have 30amps flashing on the panel. Do I need to push button combinations to lock it in so not flashing? I have two 120 ah Agms . Was in 10amps but batteries not charging.
To prevent the 30 amps from flashing on the OzCharge OC-1230P, reduce the charger output using the Charging Amps button. Set it slightly lower than the generator’s maximum capacity if using a small generator. For example, if the generator supports only 17A, set the charger to 15A. This avoids overloading and prevents flashing. When back on full power, remember to increase the output again.
This answer is automatically generated
I have an Ozcharge 1230P how do i complete a factory reset?
