Topens UPS01 User Manual

User Manual of the Uninterrupted Power Supply
Model: UPS01
Thank you for your purchasing of the 24VDC 150W uninterrupted power supply. The power supply
can be used as power source for the swing gate opener as well as the other 24VDC electrical
appliance. The wire connection is very convenient because of the plug & play design. You can
plug it to the AC main electricity and connect the 24VDC output to the appliances. 24VDC Battery
(2PCS 12VDC batteries connected in series) can be added to the power supply as the main power
or the back-up power. The AC electricity can charge the battery if it's used as a back-up power. A
maximum 240W 24VDC solar panel can be attached to the power supply to charge the batteries
as well.

Specifications

AC Input: 100-240V~ 50/60Hz
Battery Input: 24VDC (2PCS 12VDC batteries connected in series)
Solar Input: 24VDC (Max. 240W)
Rated output: 24VDC/150W Output Peak power: 180W IP degree: IP65

Features

Over-load / Over-current / Short circuit / Over-heat protection

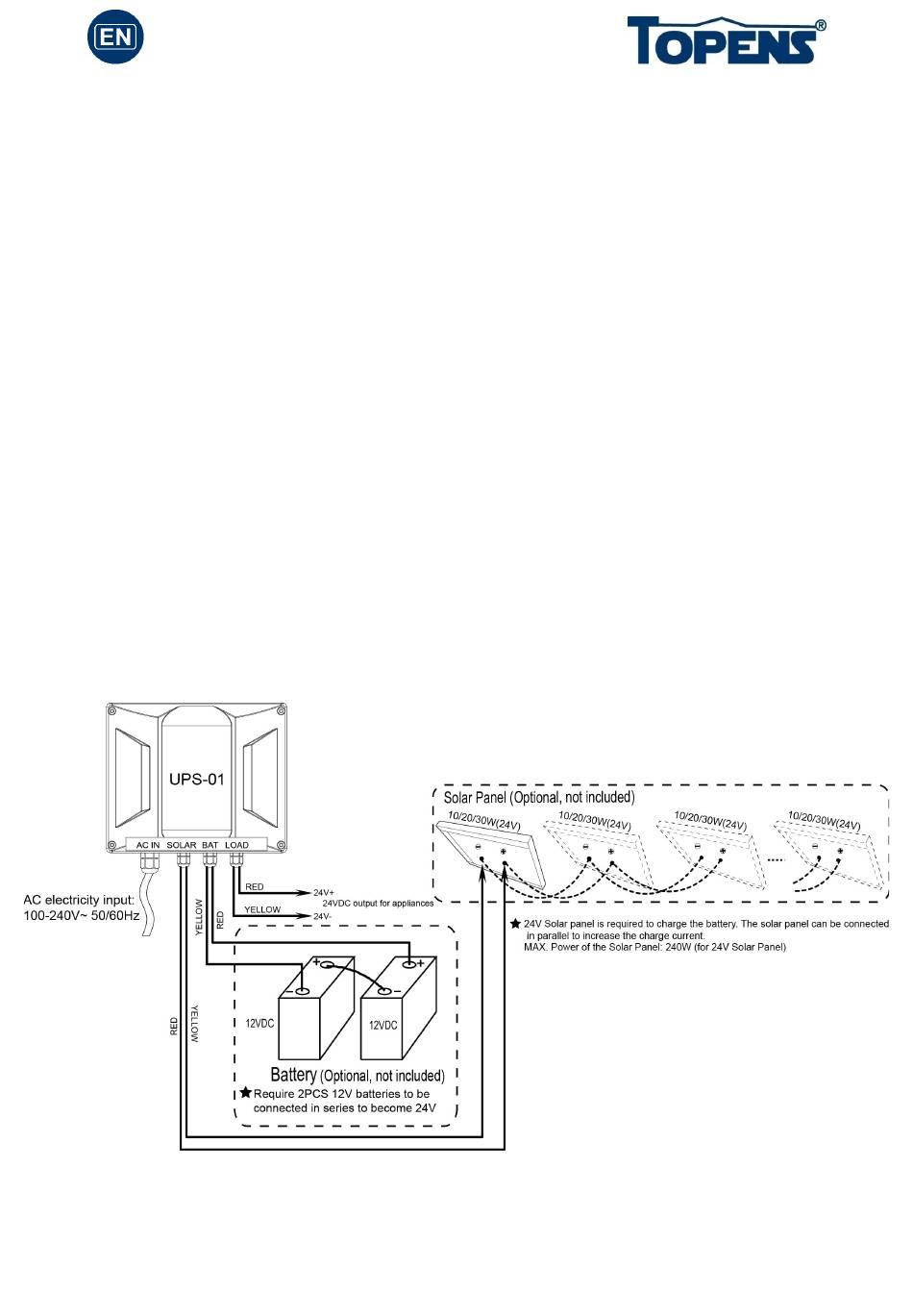

Wire Connection of the power supply

1 Firstly please connect the output of the power supply to the electrical appliance. It can be wired
to the TOPENS A/AD/PW series swing gate opener by plug the output wire to the power input
C030565
