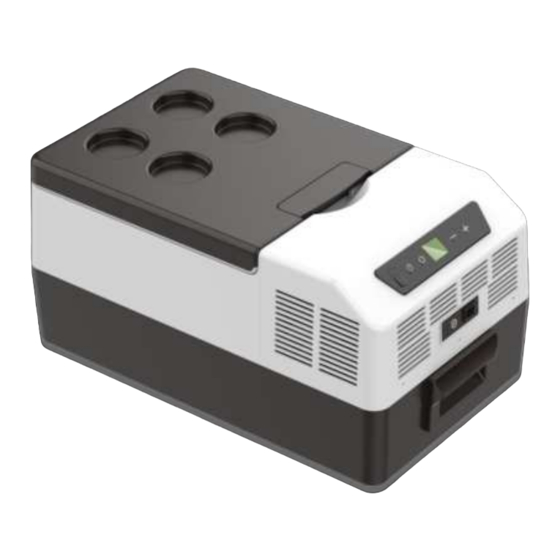

- Page 1 Car Refrigerator FCR/FC-15 FCR/FC-30 FCR/FC-40 FCR/FC-50 FC-75 FC-95 FC-100 Car Refrigerator Manual Ver : 1.0.0.0...
-
Page 2: Table Of Contents
Thank you for choosing smart car refrigerator products.Please read this manual carefully before using. Keep the manual in a safe place. Please hand on this manual together if you deliver the refrigerator to another person. Contents 1. Manual Notifications 2. Safety Instructions 3. -
Page 3: Manual Notifications
Manual Notifications WARNING ! • Safety instructions: Improper operation may cause fatal or serious injury, and damage to the refrigerator. • Safety instructions related to current or voltage. Failure to follow this instruction may lead to injury or damage to the refrigerator and impair the function of the product. - Page 4 • Do not try to open the circuit part of the product. CAUTION ! • If you are operating your refrigerator on board a boat from a mains connection of 100- 240 V～ ， you must install a residual current circuit breaker between the 100 - 240 V～...
-
Page 5: Operation
• The temperature display is based on the temperature at the center of the container. WARNING ! • The refrigerator can work properly when the ambient temperature is between - 5°C to +45°C and the maximum humidity is 90%. • The refrigerator works properly under the maximum inclination angle 30 degrees. - Page 6 Power-on operation Warning--danger of damaging the refrigerator • The refrigerator can be directly plugged in 12V DC power supply or 24V DC power supply. • Before connecting the power, please check whether the output voltage of the power supply meets the working voltage range of the product. Warning--electric current danger •...
-
Page 7: Use Of Refrigerators
CAUTION ! • Disconnect the refrigerator and other power consuming devices from the battery before connecting the quick charging device. • The refrigerator consumes a certain amount of current during operation. Therefore, when the refrigerator is not used for a short period of time, please turn it off directly. - Page 8 Power On/Off • Switch on the refrigerator, press the on/off button, then the LCD display lights up and the compressor starts to work. • Long press the on/off button for 3 seconds, the buzzer will beep for 1 second, then the LCD display lights off and the compressor will stop working. Setting temperature •...
- Page 9 • Switch on, press or long press the setting button, the Bluetooth of the refrigerator starts broadcasting. • The Bluetooth icon on the LCD screen lights up, and the mobile app can be connected to Bluetooth. • After connecting, you can set the refrigerator through the app. •...
-
Page 10: Cleaning And Maintenance
• Avoid unnecessarily low temperatures. • Do not leave the lid of the refrigerator open longer than necessary. • If you do not use the refrigerator for a long time, please keep the refrigerator as follows: • Unplug the DC power cord from the DC port or remove the power cable from the battery. -
Page 11: Other Settings
• Humidity can form frost in the interior of the cooling device or on the evaporator, which will reduce the cooling capacity. • When defrosting, please do not use sharp tools or tools that may damage the refrigerator evaporation plate or plastic parts. Please defrost at an appropriate time. - Page 12 Temperature detection fault • When the temperature detection fails, the display shows an error message [ F1°C ], it means the NTC function is defective, which can only be repaired by an authorised repair centre. • When the fault indicator flashes, it means the DC power supply voltage is lower than the currently set "Battery Voltage Protection"...
- Page 13 Bad cooling effect and high internal temperature Fault Possible Causes Suggested Remedy Move the device to a Ambient temperature is too high place with suitable The compressor ambient temperature has been Move the device to working for a Poor ventilation or insufficient air another place to ensure long time or in supply...
-
Page 14: Technical Data
Technical Data Model FC-15 FC-30 FC-40 FC-50 632*360*303 635*392*446 635*392*526 635*396*606 Dimensions Capacity Low-noise/high-performance compressor, pasted tube Cooling System evaporation plate Temperature -22°C ~ +10°C Range N.W. (kg) 11kg 19kg 20.5kg 22.5kg Stable working 6.5A 7.0A 7.5A 7.8A current 3.0A 3.2A 3.4A 3.6A... - Page 15 Model FCR-15 FCR-30 FCR-40 FCR-50 632*360*303 635*396*446 635*392*526 635*396*606 Dimensions Capacity Low-noise/high-performance compressor, pasted tube Cooling system evaporation plate Temperature -22°C to +10°C range N.W. (kg) 12.1kg 20.1kg 21.6kg 23.6kg Stable working 6.5A 7.0A 7.5A 7.8A current 3.0A 3.2A 3.4A 3.6A DC12V/24V 18650 lithium battery, battery capacity 15600, charging time...
-
Page 16: Product Safety Certification
Product Safety Certification • Certification: CCC, CB, GS, CE, RoHS, EMC, SAA, FCC, etc. • The company reserves the rights to choose versions, technical modifications and delivery options. • This refrigerator is a non-fluorine refrigerator, and the refrigerant is R134a. •... - Page 17 Harmful Substance Hexavalent Polybrominated Parts Name Lead Mercury Cadmium Polybrominated chromium Diphenyl Ether biphenyls（PBB） （Pb） （Hg） （Cd） （Cr(VI)） （PBDE） Body and its components Door body and its components Insulation Materials Compressor Compressor controller Refrigeration components Refrigerant Electrical components Power cord connection line Packaging...
