BASIC TROUBLESHOOTING GUIDE
!
PROBLEM 1: THE UNIT HAS NO POWER
1.
Check if the unit is switched ON.
2.
Check the fuse. Replace with the same type if fuse is blown.
3.
Check the power cord and ensure there are no disconnections.
4.
Verify that the unit is properly connected to the power source.
PROBLEM 2: PANEL DISPLAYS "Err" MESSAGES
DESCRIPTION: Display show "SEnS" "Err" messages. \
ERR0 — First external temperature probe not detected
ERR1 — Second external temperature probe not detected
ERR2 — Internal temperature probe not detected
ERR3 — First external temperature probe not attached.
SOLUTION: Turn off power and back on.
If err messages shows err0 or err1 check the connection of sensor to its
receptacle. Check if the temperature probe tip is still intact.
If err messages shows err2 internal temperature connector might have come
loose or needs to be replaced.
If err messages shows err3, the first external temperature probe was not
detected, secure the external temperature on the underside of the board to be
worked on.
PROBLEM 3: DISPLAY AND OTHER DEVICE OPERATION
ISSUES
SOLUTION: Turn off power and back on.
OTHER PROBLEMS NOT MENTIONED:
12
Contact the vendor.
!

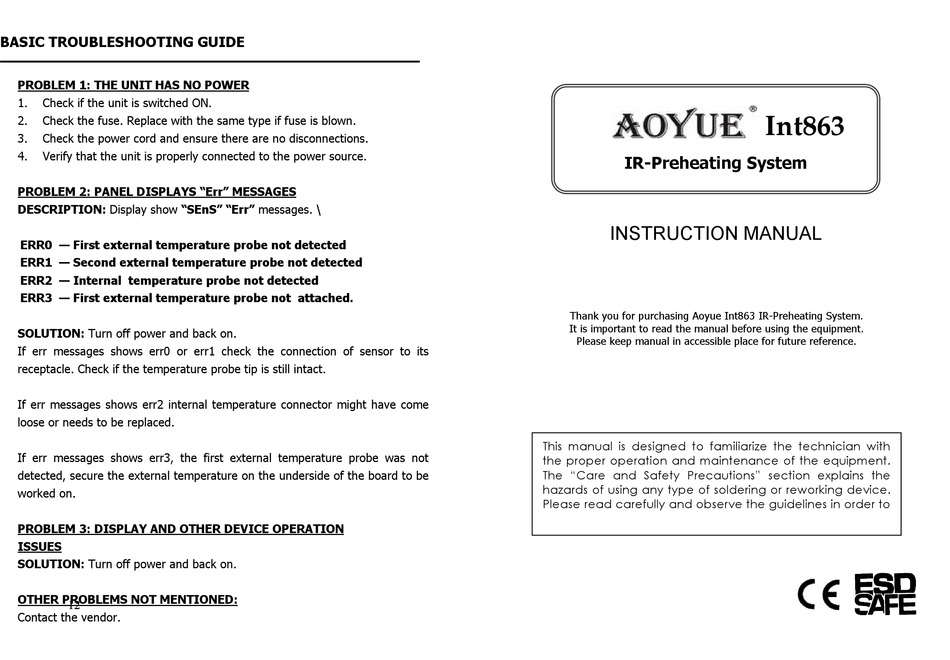

IR-Preheating System!
INSTRUCTION MANUAL!
Thank you for purchasing Aoyue Int863 IR-Preheating System.
It is important to read the manual before using the equipment.
Please keep manual in accessible place for future reference.
This manual is designed to familiarize the technician with
the proper operation and maintenance of the equipment.
The "Care and Safety Precautions" section explains the
hazards of using any type of soldering or reworking device.
Please read carefully and observe the guidelines in order to
Int863!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for aoyue Int863
- Page 1 ERR2 — Internal temperature probe not detected ERR3 — First external temperature probe not attached. Thank you for purchasing Aoyue Int863 IR-Preheating System. It is important to read the manual before using the equipment. SOLUTION: Turn off power and back on.
-
Page 2: Table Of Contents
OPERATING PROCEDURES After the process is finish the display will show “End”, press the increase button to save the profile and exit to profile adjustment mode. To exit before the process is finished press the increase button TABLE OF CONTENTS while the profile is running. -
Page 3: Care & Safety Precautions
CARE and SAFETY PRECAUTIONS OPERATING PROCEDURES D. TYPE “2” OPERATION CAUTION: Improper usage can cause injury and physical damage. Before proceeding with this type of operation, attach the first For your own safety, please observe the following precautions. external temperature probe to the underside of the PCB to be worked on. -
Page 4: Product Description

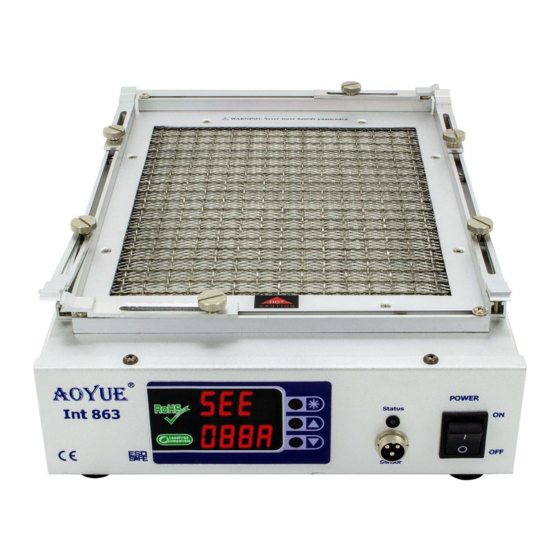

PRODUCT DESCRIPTION OPERATING PROCEDURES D. TYPE “1” OPERATION The Aoyue Int 863 IR-Preheating System is a reworking equipment that Before proceeding with this type of operation, attach the first combines infrared (IR) heating technology, enhanced pre-heating area, versatile external temperature probe to the underside of the PCB to be worked board holder, and profile control of heating in one sophisticated package. -
Page 5: Package Inclusion
PACKAGE INCLUSION OPERATING PROCEDURES Press the increase or decrease button to adjust the set temperature level. The set temperature is adjustable from 50 to 400 C in this type of operation. To view the actual temperature read by the internal temperature probe, repeatedly press the selection button until the top display shows the word “Act3”, and the 863 Main Station... - Page 6 Control Panel Guide OPERATING PROCEDURES A. INITIAL PROCEDURES 1. Make sure all switches are deactivated. 2. Attach external sensor probes to the three pin socket. (#6 on control panel guide) 3. Attach power cord to the power cord attachment (#8 on control panel guide) 4.
