Summary of Contents for Wideye iFleetONE

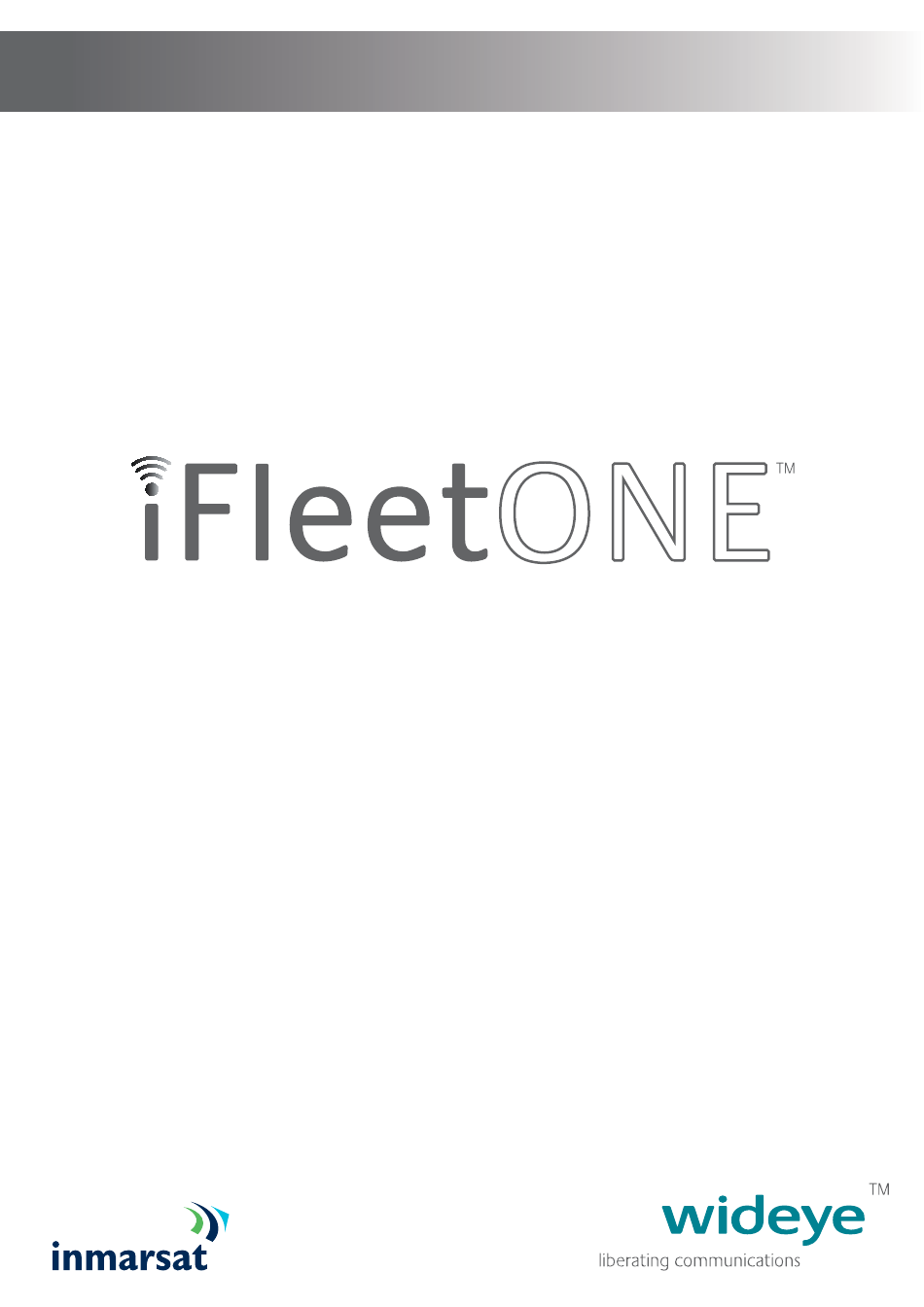

- Page 1 Quick Start Guide Satellite Terminal Date 26 August 2021...

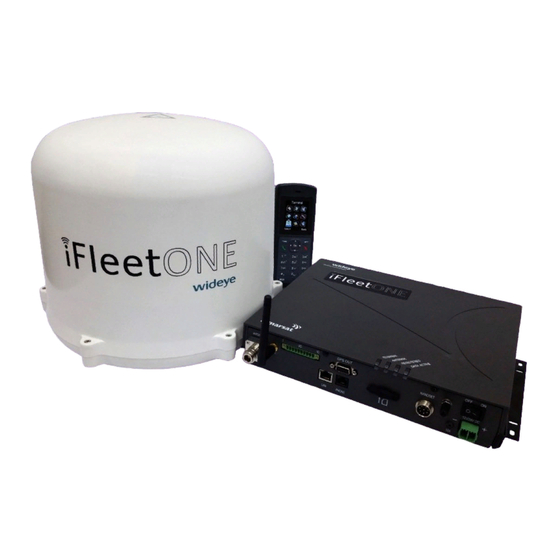

- Page 2 Antenna Unit 1. Radome Top 2. Radome Bottom 3. Antenna Connector (N-Type) Figure 1: iFleetONE ADU iFleetONE Modem Unit 1. Antenna Connector (N-Type) 7. LAN Port 2. Wi-Fi Antenna 8. RJ11 Port 3. I/O Port 9. SIM Card Slot 4.
- Page 3 Terminal Simplified Block Diagram With WIFI: +24V/+12V DC Above Deck Unit (ADU) Installation Connect coaxial cable to ADU properly without kinking it, before installing it on the pole mount or mast’s mounting surface Secure ADU to the pole mount or mast by using M6 x 20mm screws and flat washers.
- Page 4 Below Deck Unit (BDU) Installation Place BDU onto the desired installation area. Secure the right and left mounting bracket using M5 x 12mm Self-Tapping Screws (2x). Connect and secure DC power cable, antenna cable and primary handset cable to the BDU’s front panel...
- Page 5 Getting Started BDU LED States • Connect the cables and accessories as shown Status Meaning in Terminal Simplified Block Diagram. TERMINAL • Insert a Fleet One SIM card, with the gold Steady Amber Terminal (BDU) is powering up. printed circuit facing down. Terminal (BDU) has powered up •...
- Page 6 Accessing Web Console Open the web browser, type http://192.168.1.35 in the Address field. Type in admin in Username field and 1234 in The terminal will automatically acquire the GPS Password field. Click Login. location and register to the network. This would take 1.5 to 2 minutes.
- Page 7 Accessing VMS Forms / Declarations: Tips and Troubleshooting Data Connection Primary Handset Unable to make outgoing call Unable to activate Data Session • Ensure you are using a valid APN. • Ensure a correct number format is being dialled. • Ensure proper BDU LED states;...
- Page 8 Singapore. Addvalue, the Addvalue Enabled logo, Wideye, Wideye logo, IFleetONE, iFleetONE logo are either trademarks or registered trademarks of Addvalue Technologies Ltd and/or its affiliates in Singapore and/or other countries. Inmarsat, the Inmarsat logo registered trademarks of Inmarsat Global Limited in the United Kingdom and/or other countries, and are used by Addvalue Innovation Pte Ltd under license.
