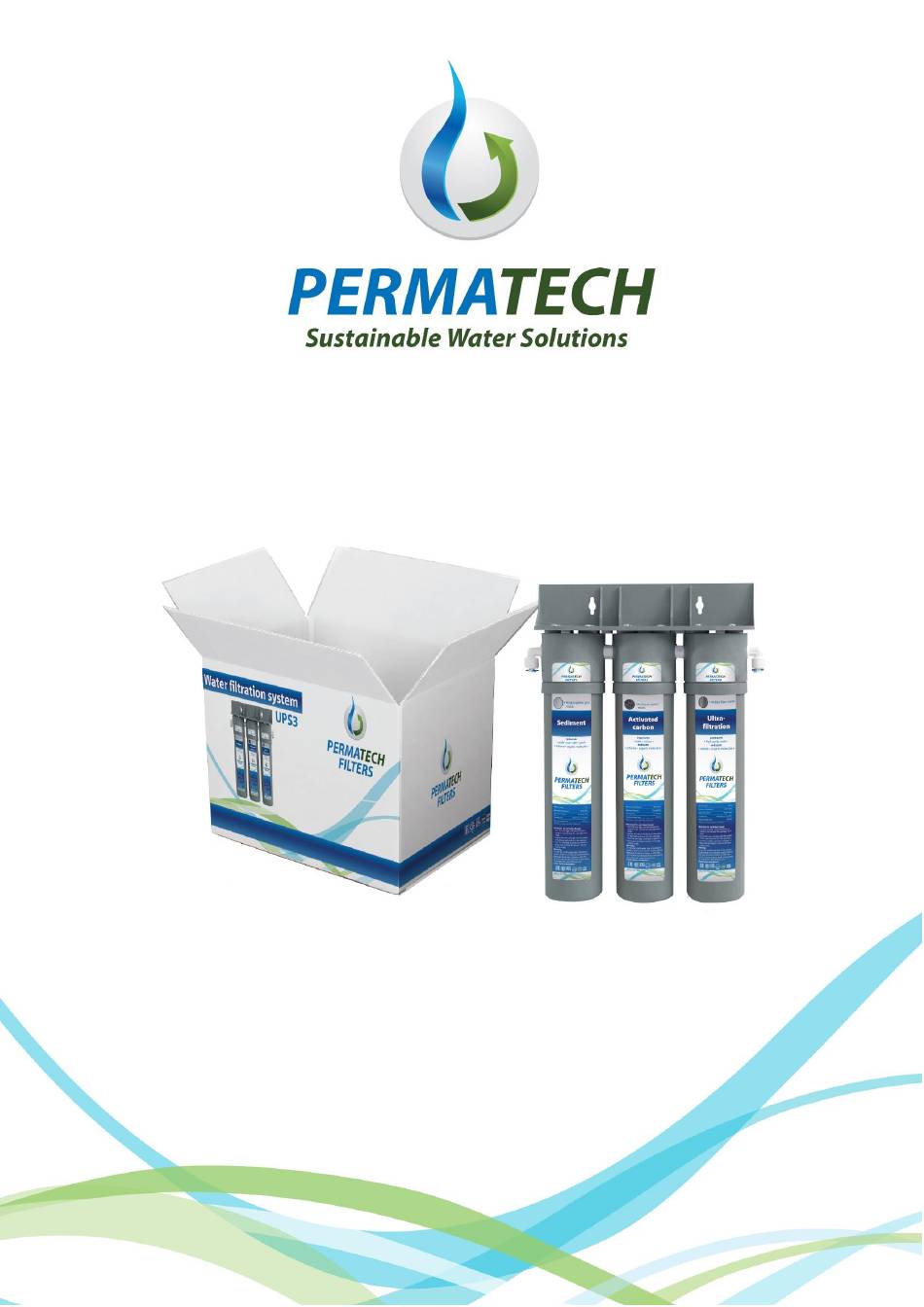

- Page 1 WATER FILTRATION SYSTEM (USF3) OWNER’S MANUAL...
- Page 2 INTRODUCTION Congratulations on choosing Permatech to improve the quality of your water. You will immediately begin to notice the numerous benefits of having quality water in your home and the benefits of having Permatech water treatment system. This system uses household water pressure. Water under pressure is forced through filtration steps where impurities are filtered out.
-
Page 3: Table Of Contents
CONTENTS Page BEFORE YOU INSTALL FILTER SYSTEM SAFETY CONDITIONS HOW YOUR FILTER SYSTEM WORKS? SYSTEM SPECIFICATION WHERE CAN FILTER SYSTEM BE INSTALLED? 5.1 Check list 5.2 Required tools and materials IMPORTANT INSTALLATION NOTES 6.1 Connecting standard QC type push-in fittings 6.2 Disconnecting standard QC type push-in fittings SYSTEM INSTALLATION 7.1 Step 1: Installation at cold water inlet... -
Page 4: Before You Install Filter System
1. BEFORE YOU INSTALL USF3 FILTERATION SYSTEM CAUTION: A refrigerator icemaker may not operate properly when connected to a filter system that has been installed on a water system which operates outside of the specified pressures listed on page 5. -
Page 5: System Specification
4. SYSTEM SPECIFICATION Feed water pressure limits 2,2 – 4,0 bar Feed water temperature limits 2 – 38 °C Maximum total dissolved solids (TDS) 1500 ppm Feed water pH limits 2 - 11 Maximum levels: - water hardness < 17 mg CaCO - turbidity <... -
Page 6: Important Installation Notes
6. IMPORTANT INSTALLATION NOTES Filter System uses Quick Connection type style fittings. These fittings only require you to simply push the tubing firmly into each fitting. Connecting standard the QC push-in fittings 1. Remove yellow locking clip from the fitting. 2. -
Page 7: Step 2: Installing The Faucet
Water feeder connection set (1 - connector element 1/2" , 2 – ball valve) 1. Locate cold water shut off valve under the sink (if the feeder is installed after this valve) or main shut off valve (if the feeder is installed before under sink shut off valve, as shown on scheme) and turn it off. Open cold water faucet to release the pressure, and make sure there is no water running. -
Page 8: Drilling Hole In A Porcelain Enamel/ Stainless Steel/Aluminium Sink
7.2.1 DRILLING HOLE IN A PORCELAIN ENAMEL/ STAINLESS STEEL/ALUMINIUM SINK Porcelain enamel sink / stainless steel sink / aluminium sink A Ø 13mm hole is required for the faucet. It is recommended that you obtain a special ceramic drill bit for a porcelain and/or tile sink/counter. -
Page 9: System Care And Maintenance
8. SYSTEM CARE AND MAINTENANCE FILTER CARTRIDGES CHANGE To change the prefilter cartridge, follow these instructions: CAUTION: Any Replacement filters not recommended by the producer can cause severe damage to the system and void all warranties. 1. Shut off the feed water supply to the system by turning the saddle valve or cold water faucet valve on the water supply clockwise until it stops. -
Page 10: Trouble Shooting
9. TROUBLE SHOOTING CAUTION: Regulary (eg. Once per month) check your TDS* level of feed water and purified water. Results will keep you updated about the filtration efficiency and the filters condition. *TDS (Total Dissolved Solids) – total content of substances dissolved in water measured in ppm (parts per milion =mg/l) Please check selected cases for general solution ideas: PROBLEM... -
Page 11: Connetion Scheme
10. CONNECTION SCHEME 1. Sediment cartridge 2. Activated carbon cartridge 3. Ultrafiltration cartridge...
