ROCAM CR1009 Pro Manual

ROCAM
R
CR1009Pro meets the NWS evaluation criteria for NWR All Hazards logo use

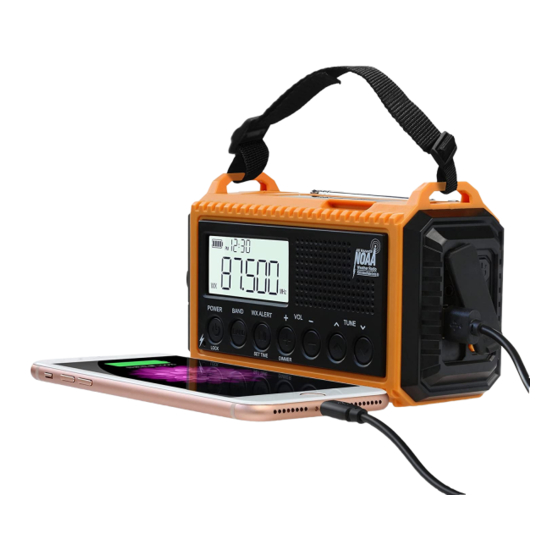

Emergency Alert Radio
CR1009
Pro
with AM/FM/SW/NOAA weather/Solar/Hand Crank
Chapter 1 LOCATION OF CONTROLS
4
3
5
2
6
1
7
27 28
29 30
1. USB Output Charging Port 2. 3.5mm headphone jack 3. Micro USB Input charging Port
4. Carry Strap Holder 5. Flashlight Button
7. SOS Control Button 8. Telescopic Antenna
10. Battery Indicator 11.Time Display
13. Lock Indicator 14. Headphone Indicator
16. Power Indicator 17. Power/Lock Button
19.WX Alert/Set Time Button 20. Vol+/Backlight
22.Tune+ / Previous Button 23. Tune- / Next Button
25. Red Alert Light 26. Flashlight

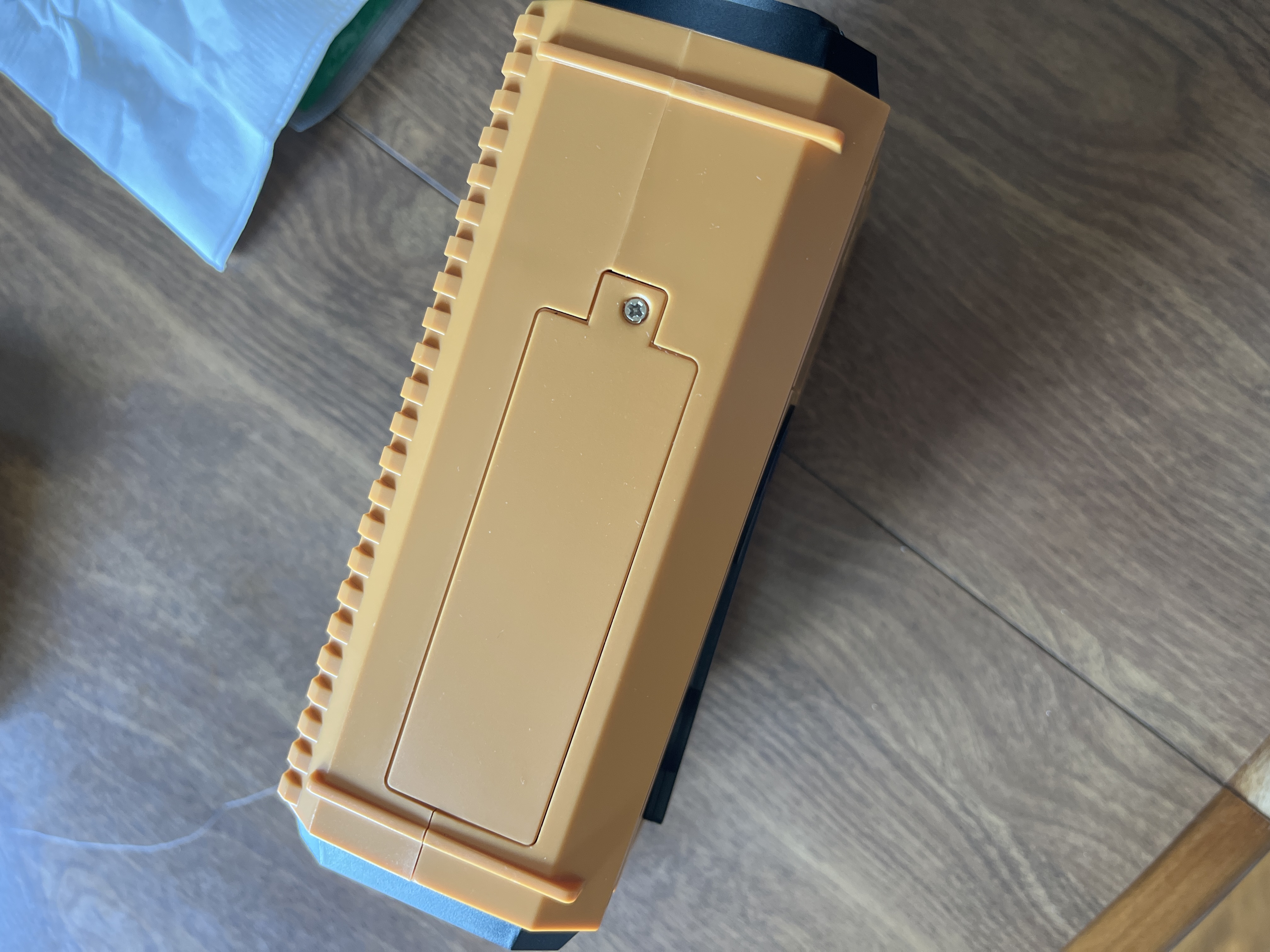

28. Battery Compartment 29. Solar Panel
31. AAA Battery Compartment
Working/Fully Charged
Green
Battery indicator
Weather Alert indicator
8
9 1011 1213 14 15
24
25
26
16 171819202122 23
31 32
6. Reading Lamp Button
9. Band Indicator
12. Weather Alert Indicator
15. Frequence Indicator
18. Band button(AM FM SW WB)
21. Vol- Button
24. Speaker
27. 21700 Rechargeable
Battery (included)
30. Reading Lamp
32. Crank Handle
Battery charging
Red
Button Lock indicator
Headphone indicator
- 01 -
Contact our experts
support@yelaw.net
Http://www.yelaw.net
Chapter 2 POWER SUPPLY MODE
5
3
5 ways to power the radio:
1. Hank Crank Power
(1) Unfold the crank handle from the backside and rotate it in either
any direction.
(2) Rotate the crank handle, It will generate 300-350mA electricity
to charge build-in 21700 rechargeable battery.
Note: Rotate the crack handle at the speed of 2 laps per second.
It will generate 300-350mA electricity.
2. Solar Power
(1) Expose the solar panel to sunlight, don't charge indoors.
(2) It will generate 30-50mA electricity to charge build-in 21700
rechargeable battery.
Note: Solar panel will generate 30-50mA electricity when exposed to sunlight.
It is difficult to fully charge the 21700 battery with solar panel, which is mostly
used for maintaining the rechargeable battery.
3. Micro USB Charging input
(1) Connect USB Cable(included) to a regular AC power adapter(not
included).
(2) Plug the USB cable into the Micro USB port of the radio.
(3) Plug the AC adaper to a 110-220V standard outle.
It is highly recommended to use 5V/2A AC power adapter.
4. Li-ion Rechargeable Battery
The radio contains a 5000mAh Li-ion rechargeable battery.
Made in China
2
- 02 -
Version 1.2
