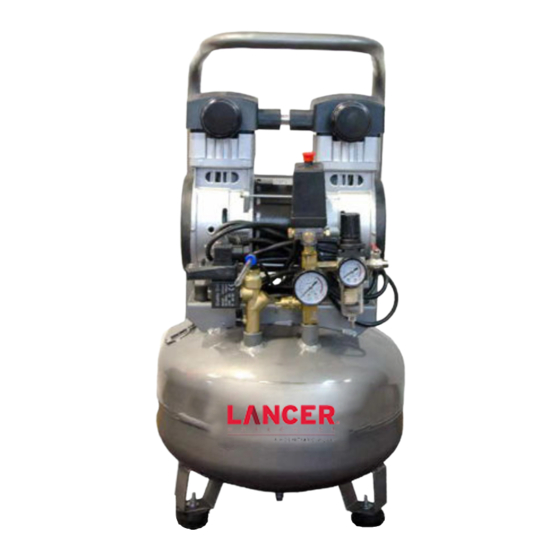

Annual Operational Service – Filters, Non Return Valve & Compressor Head
Why
Time required
40-60 minutes to complete
Hazard icons
Tools and supplies
Safety Glasses
Paper Towel
Gloves

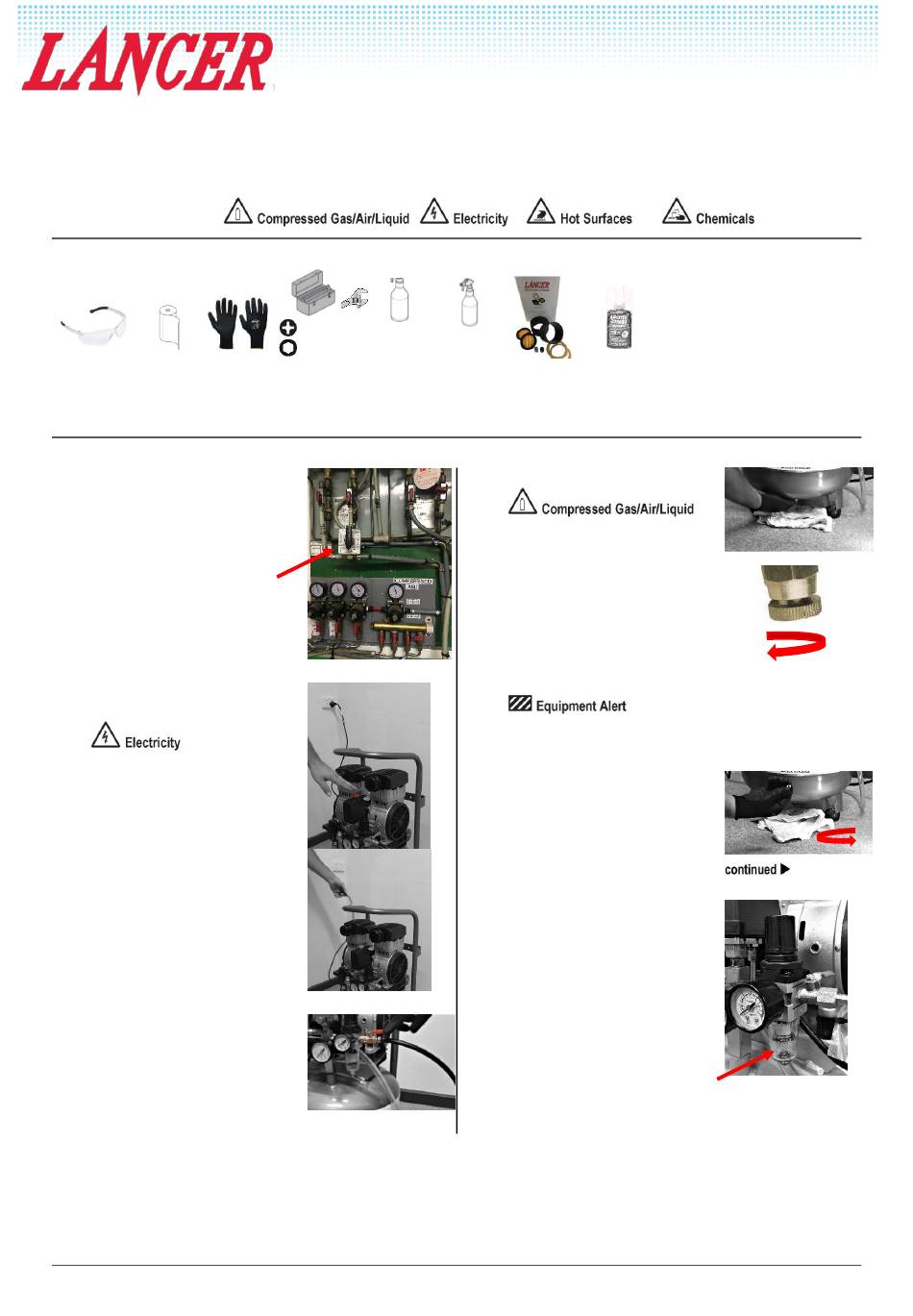

Procedure
1
Change Over to CO2 supply
Switch main Beverage Control
Panel over to back-up CO2
supply.
2
Isolate Air Compressor –
Electrical
Press the red button on the
pressure switch to turn off the
compressor.
Isolate and disconnect the
electrical lead from the wall
socket.
3
Isolate Air Compressor –
Air Supply
Turn the supply air tap off, ¼
turn. The red handle will be 90
degrees to the hose when off.
www.lancerbeverage.com
Images are for illustration purposes only as product may vary.
PH2
5mm
Tools
Cleaning
Soapy water
- PH2 Screw Driver
alcohol
- Adjustable Spanner
- 5mm Allen Key
BEV85 Annual Operational Service
Annual Service Kit
Loctite® 222
#80000204
4
Drain air tank
Drain the air tank through the
Drain Cock on the base of the
receiver tank.
Turn Clockwise, slowly loosen
Drain Cock to release
compressed air.
Monitor for excessive
moisture draining from the
tank.
Compressed air use of Gloves
& safety glasses is required.
Replace Tank Drain Cock
Wipe drain cock clean.
Refit drain cock, turning anti-
clockwise, ensure finger tight
fitment.
5
Inspect and Drain Regulator
Filter bowl.
Check the condition of the
condensation bowl at the base
of the Filter Regulator.
If dirty and more than 10 mm
of moisture present remove &
Clean.
No 074 – 1 November 2018
Work Instruction
Videos are available to support this
equipment from Hoshizaki Lancer. Please
see...
www.lancerbeverage.com
Overview:
https://youtu.be/-pKwifqzQEY
Troubleshooting:
https://youtu.be/OobMs8csyj0
Service:
https://youtu.be/_jS9Mm8xmXQ
Page 1 of 4
