VT608 / Switching PDU with 8 outlets
Visit our Online documentation for the latest information.
Documentation page:
https://vutlan.atlassian.net/wiki/spaces/DEN/pages/2313617561
/VT608+Switching+PDU+with+8+outlets
Product page:
https://vutlan.com/power-distribution-units/153-vt608-switched-ip-pdu.html
Function and purpose
The Switched Power Distribution Unit (PDU) is used for load management and allows to switch on/off or reboot up to 4 outlets.
It has a built-in temperature sensor, can connect x2 additional analog sensors, x2 dry contact inputs, x2 12V controlled
outputs for devices (e.g. alarm beacon or a relay contact) and a digital CAN port for connecting up to x20 sensors or
extensions.
There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, and Watchdog.
"

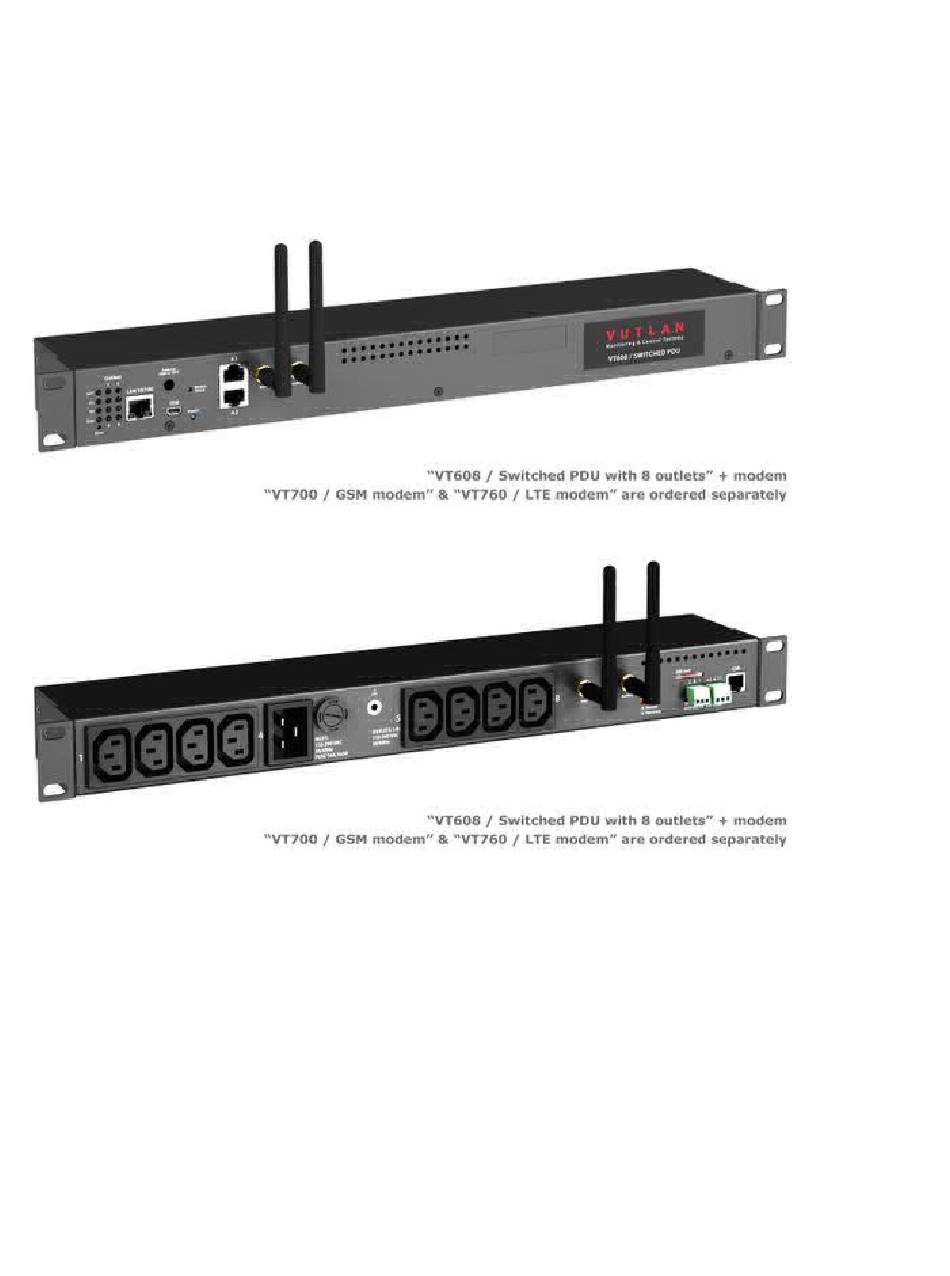

VT700 / GSM modem
" or "
Physical Description
Front panel:
VT760 / LTE modem
" can be integrated inside the system. Modems are purchased separately.
Advertisement
Summary of Contents for Vutlan VT608
- Page 1 VT608 / Switching PDU with 8 outlets Visit our Online documentation for the latest information. Documentation page: https://vutlan.atlassian.net/wiki/spaces/DEN/pages/2313617561 /VT608+Switching+PDU+with+8+outlets Product page: https://vutlan.com/power-distribution-units/153-vt608-switched-ip-pdu.html Function and purpose The Switched Power Distribution Unit (PDU) is used for load management and allows to switch on/off or reboot up to 4 outlets.
- Page 2 Back panel: 1. " ACT / STATUS " - green - indicates appliance status "LEDs: E1, E2 " - status indicators for x2 12V 0.25A outputs at the back of the unit. The LED is ON (orange) - the output is ON (the initial state can be configured). The LED is OFF (orange) - the output is OFF ((the initial state can be configured).
- Page 3 4. " A1 A2 " - x2 RJ12 analog sensor inputs with auto-sensing. Read instructions at " Analog sensors connection ", " Sensor configuration ". 5. " Sticker space " - A place for a sticker, can be used by a user to place an identifier of the system (for example, an IP address).
- Page 4 Dimensions...
- Page 5 Make sure that the contents of the delivery meet the following configuration. Report a missing or damaged component to your supplier. If damage occurred during transportation, contact the appropriate delivery service. Package content Description Switchable PDU unit VT608. EU Schuko C13 0.75 мм 230V 10A cable.
- Page 6 RJ-45 1m patch cable Self-adhesive rubber foot - 4 pcs Terminal plug 3 pins, 3.81 mm - 1 pcs Terminal plug 3 pins, 3.5 mm - 1 pcs Configuration manual...
-
Page 7: Device Description
Description 19" rack brackets - 2 pcs M3 x 8mm Phillips flat-head screws - x6 pcs (transparent plastic bag 42x70mm) Technical specifications VT604 VT608 Device description Description: Switchable Switchable Device management: Web, SNMP, manual using SMS, 4G LTE Sensor access: Three-level by login... -
Page 8: Power Supply
Notifications: FTP, Syslog, SMTP, SNMP, SMS (Modem ordered separately) Ping: Built-in pinging LEDs: System status, CAN, 12V outputs E1 and E2, System Error LEDs: Orange for relays Clock: Built-in clock with time synchronization Timer: Built-in watchdog VT604 VT608 Power 110-240V 110-240V Power supply: 50-60 Hz 50-60 Hz... - Page 9 VT604 VT608 Environment Operating temperature: 0 to 60 °C Storage temperature: –25 to 85 °C Operating humidity: 0 to 90 %, non-condensing Storage humidity: 0 to 95 %, non-condensing VT604 VT608 Options Installation: 19” 19” Dimensions (L x W x H) in mm:...
- Page 10 Developer notes: Model v3.1, Published 12thMay2021...
