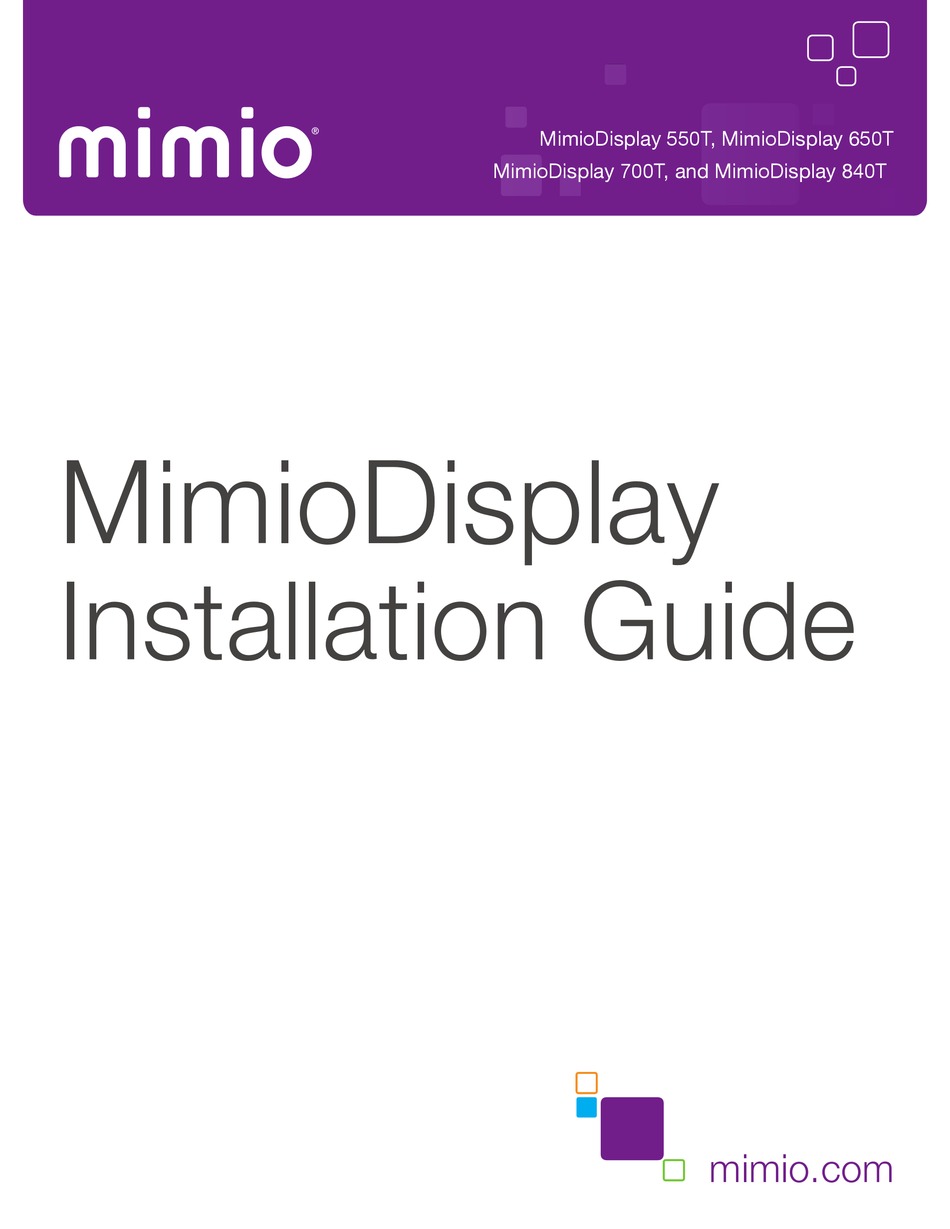

- Page 1 MimioDisplay 550T, MimioDisplay 650T MimioDisplay 700T, and MimioDisplay 840T MimioDisplay Installation Guide mimio.com...
-
Page 2: Table Of Contents
USB Player Supported Formats ..............................15 CLEANING THE MIMIODISPLAY SCREEN ..........................16 TROUBLESHOOTING ...................................17 RESOLUTIONS AND REFRESH RATES ..........................18 Appendix A: Dimensional Drawings ............................19 Appendix B: RS-232 Control .................................21 Data Format ....................................21 Data Structure ....................................21 mimio.com... -
Page 3: Important Safety Instructions
11. Do not use any sharp object on the display surface. 12. Do not attempt to service the MimioDisplay device yourself; consult Mimio Tech Support at 877-864-3721 or customercare@mimio.com. 13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. -
Page 4: Introduction
The MimioDisplay device consists of an LCD panel with touch capability. General Display type: TFT-LCD Resolution: (See below) Model 550T 650T 700T 840T Native Resolution 1920 x 1080 (Full 1920 x 1080 (Full 1920 x 1080 (Full 3840 x 2160 (UHD-1) mimio.com... - Page 5 Secondary USB “For Touch Only” (B type) – only for connecting touch control using a PC with an HDMI 3 video source. Control RS-232 Ambient Light Detect: See details in “Contents of OSD Menu” (Option: Light Sensor). Native Aspect Ratio 16:9 mimio.com...
-
Page 6: Installing Mimiodisplay
Side Connection Ports All MimioDisplay models have connection ports on the lower-left-edge of the MimioDisplay screen for easy access to HDMI 3, USB type B touch (for use with HDMI 3), and USB 2 type A (“For Media Only”): mimio.com... -
Page 7: Example Installation
Example Installation 1) Plug AC power cable into MimioDisplay device. 2) Plug AC power cable into wall power socket. 3) Press rocker switch in rear panel ON (“–” not “O”). mimio.com... - Page 8 5) Plug other end of HDMI cable into PC. 6) Plug USB cable into USB type B port on rear panel labeled “For Touch Only.” 7) Plug other end of USB cable into USB type A port on PC. mimio.com...
- Page 9 Press power button on remote control. Signal source will automatically switch to HDMI 1 after a few seconds. mimio.com...
-
Page 10: Using Mimiodisplay
Directional Arrows and Select: Scrolls through OSD menu. Menu: Toggles the OSD menu on and off. Exit: Exits settings or the OSD menu. Info: Displays screen picture timing and resolution. Rewind, Play/Pause, Fast-Forward, Back, Stop, Next: Controls USB media playback. mimio.com... - Page 11 (7.7 in. x 1.85 in. x 0.9 in.) Operation Distance: < 10 meters (32 ft) Working Angle: Not more than +/- 40 degrees CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES CORRECTLY. mimio.com...
-
Page 12: Buttons On Mimiodisplay
Buttons on MimioDisplay mimio.com... -
Page 13: Contents Of Osd Menu
Press Up and Down to enter sub-menu and highlight items. OSD menus and sub-menus: Picture Picture Mode Contrast Brightness Color Sharpness Tint Color Temperature Standard Cool Medium Warm Aspect Ratio Auto 16:9 16:10 Noise Reduction PC Setup Auto-Adjust Backlight Sound mimio.com... - Page 14 Blending (OSD Transparency) Light Sensor ON/ OFF When this function has been turned ON, the MimioDisplay device will automatically adjust the backlight (luminance). The light sensor is located with the IR sensor. OSD Duration 5 sec. 10 sec. 15 sec. mimio.com...
-
Page 15: Usb Player Supported Formats
• It will take a while to load data from USB media drives. The more data in the hard disk, the longer it takes to load. • If video plays without audio, it may be because the audio bit-rate is not supported. • Use the remote control for USB media playback. mimio.com... -
Page 16: Cleaning The Mimiodisplay Screen
• Do not use chemical solvents, alcohol, or ammonia-based cleansers to clean the unit or panel. They could cause permanent damage to the unit or panel. • Use a clean, soft, lint-free cloth, dampened with clean water, to clean the screen. To achieve maximum cleaning, you may apply a small amount of non-ammonia, non-alcohol-based glass cleanser. mimio.com... -
Page 17: Troubleshooting
TROUBLESHOOTING Please refer to the MimioDisplay Troubleshooting Guide, available at mimio.com/userguide, for detailed troubleshooting tips. mimio.com... -
Page 18: Resolutions And Refresh Rates
1600x1200 81.3 1600x1200 87.5 1600x1200 93.8 1680x1050 64.7 1680x1050 82.3 1920x1080 67.2 Timing modes not listed here may result in a picture that is abnormal, off-center, disproportionate, or no-signal. Adjust video source or graphic card output in these circumstances. mimio.com... -
Page 19: Appendix A: Dimensional Drawings
Appendix A: Dimensional Drawings MimioDisplay 550T MimioDisplay 650T mimio.com... - Page 20 MimioDisplay 700T MimioDisplay 840T mimio.com...
-
Page 21: Appendix B: Rs-232 Control
The numbers in brackets are the string value that is associated with the property or the property value. Note that these values are used in the command string. For the properties that support ranges such as brightness and volume, examples are provided for low and high. mimio.com... - Page 22 Any intervening values can be deduced from these. This section covers only the commands sent from the computer to the device. For responses from the device, see the section below, ACKs Notification. mimio.com...
- Page 25 Note* Default value 15. Note** Only one device may be “Ping/Query” at a time. Note*** If your system need “Query” function, please contact Mimio technical support at 877-864-3721, or customercare@mimio.com. ACKs Notification The device should return an acknowledgement for a “Ping and Query” command.
- Page 26 mimio.com...
