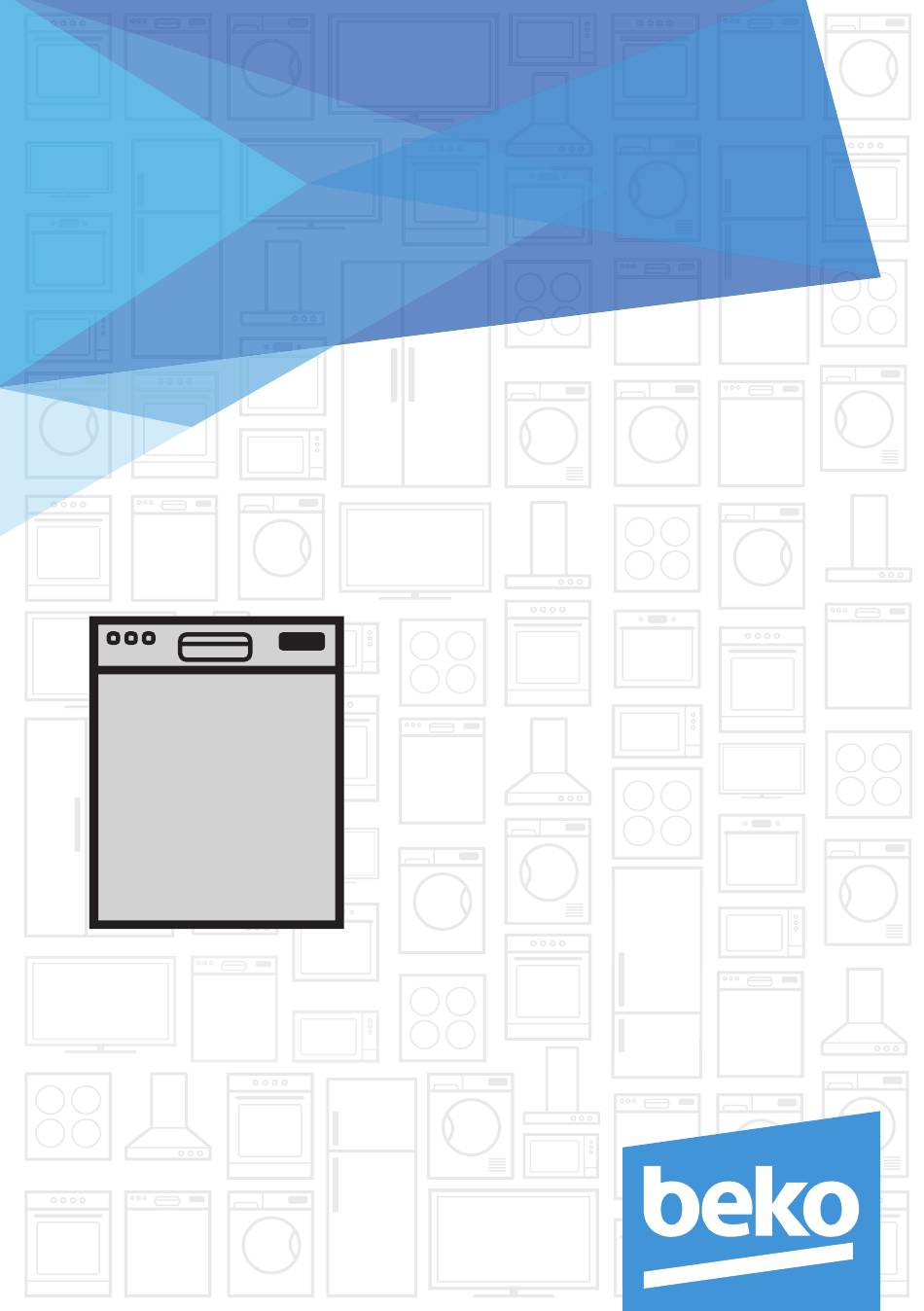

- Page 1 Dishwasher User’s Manual Document Number : 15 9528 0100_AB_BEKO_D1_EN/ 27-04-20.(10:56)
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
- Page 3 Dishwasher User’s Manual Document Number : 15 9528 0100_AB_BEKO_D1_EN/ 27-04-20.(10:56)
- Page 4 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 5: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY Lower Basket Glass Holder ....23 Lower basket multipurpose / height AND ENVIRONMENT adjustable service rack ..... 24 General safety ........4 Lower basket bottle wire ....25 Intended use ..........4 Upper basket height adjustable rack 25 Children’s safety ........5 Upper basket multipurpose service Disposing of packaging material ..5... -
Page 6: Instructions For Safety And Environment
instructions for safety and environment This section contains safety wet hands! Never unplug by instructions that will help to get pulling on the cable, always protected from risk of personal pull out by grabbing the plug. injury or property damage. Failure The product must be •... -
Page 7: Children's Safety
instructions for safety and environment Children’s safety to be used in household and similar applications such as: Electrical products are • - Staff kitchen areas in shops, dangerous for the children. offices and other working Keep children away from the environments;... -
Page 8: Transportation Of The Product
instructions for safety and environment Transportation of the consult your local authorities to learn about these collection product centers. If you need to move the Compliance with RoHS product, do it in upright Directive position and hold from the rear side. Slanting The product you have purchased the product onto its complies with EU RoHS Directive... -
Page 9: Dishwasher Overview
Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 10: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 11: Installation
Installation Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure Place the product on a solid and flat • that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be... -
Page 12: Connection To The Drain
Installation Connection to the drain Permitted water temperature: up to 25°C ( 60°C for products Water discharge hose can directly be equipped with Aquasafe+; please connected to the drain hole or sink’s refer toAquasafe+ section ) drainage. The length of this connection The dishwasher may not be connected to must be min. -
Page 13: Aquasafe
Installation Aquasafe+ Dishwashers door must be aligned properly otherwise hot (depends on model) steam can escape! Danger of The Aquasafe+ system protects against serious burns, other injury or water leaks that may occur at the hose may damage furniture. inlet.Water contact with the valve box of the system must be avoided to prevent Electrical connection damage to the electrical system. -
Page 14: Initial Use
Installation Damaged power cables must be replaced by the Authorised Service Agent. If your dishwasher is equipped with internal illumination, lamp should only be replaced by the Authorised Service Agent in case of failures that may occur on the lamp. If the product has a failure, it should not be operated unless it is repaired by the Authorised... -
Page 15: Preparation Tips For Energy Saving
Preparation Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy- Washing, rinsing and drying performance efficient manner. of your dishwasher will improve when Wipe away any coarse food remnants on the water softening system is adjusted the dishes before putting them in the correctly. - Page 16 Installation Make the necessary Unpack the test Dip in the test strip Take out the strip Wait for 1 minute. Open the tap and adjustment strip. into the water for 1 from the water and let the water flow for according to the test second.
-
Page 17: Adding Salt
Preparation If the hardness level of the water that It is recommended to use you use is above 50°dH or if you are using granule- or powder-formed well water, than it is recommended to use softening salts in the water filter and water purification devices.If the softening system. -
Page 18: Detergent
Preparation Adding detergent You can put about 2 kg of softening salt into the salt Pay attention to the warnings reservoir. on the detergent packaging to get better washing and 5. Replace the lid and tighten it when the drying results. Contact the reservoir is full. -
Page 19: Tablet Detergents
Preparation Inside the detergent dispenser there are level markings that help you use appropriate amount of powder detergent. When brimful, detergent dispenser will contain 45 cm³ of detergent. Fill detergent up to 15 cm³ or 25 cm³ level marks in the detergent dispenser according to fullness of the machine and/or soiling degree of the dishes. -
Page 20: Rinse Aid
Preparation Rinse aid The best washing performance in dishwashers is obtained by The rinse aid used in using detergent, rinse aid and dishwashers is a special water softening salt individually. combination that aims to increase drying efficiency and prevent water or lime stains on the washed items. -
Page 21: Items Not Suitable For Washing In The Dishwasher
Preparation Placing the dishes into the 4. If there are stains on tableware items after washing, level must be increased dishwasher and if there is a blue trace after wiping You can use your dishwasher in the them by hand, it must be decreased. optimum way with respect to energy This is set to position 3 as factory consumption and washing and drying... - Page 22 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware /45 EN Dishwasher / User’s Manual...
-
Page 23: Cutlery Basket
Preparation Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 24: Collapsible Lower Basket Tines
Preparation Collapsible lower basket Bringing the tines to the tines horizontal position by holding them from the tips may cause (depends on model) them to bend. Therefore, it There are foldable tines (A) located at the will be appropriate to bring the tines in the middle to horizontal lower basket of the machine are designed or vertical position by holding... -
Page 25: Tray Wash Supports
Preparation SoftTouch Accessory (depends on model) The SoftTouch Accessory found in the lower basket of your machine enables a safe washing for your fragile glasses. Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. -
Page 26: Lower Basket Multipurpose / Height Adjustable Service Rack
Preparation Lower basket multipurpose Make sure that the impeller / height adjustable service does not touch the dishes you rack placed on the racks. (depends on model) To close the racks: This accessory located at the lower basket Fold the rack (A). of your machine allows you to easily wash 2. -
Page 27: Lower Basket Bottle Wire
Preparation Lower basket bottle wire (depends on model) The bottle wire is designed for easier washing of long pieces with wide mouths. You may take out the bottle wire from the basket when not in use by pulling it out from both sides (H). -
Page 28: Adjusting The Height Of The Upper Basket
Preparation Adjusting the height of the To lower the basket, while it is in the uppermost position; upper basket Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 29: Collapsible Upper Basket Wires
Preparation Collapsible upper basket Pull the basket out completely. Place the basket back into the tracks at the wires desired height. (depends on model) Push the latches back into the correct You can use collapsible wires when you position. need a larger space for your dishes in the upper basket of your machine. -
Page 30: Ceiling Cutlery Basket
Preparation Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 31: Operating The Product
Operating the product Display 5. Function keys 2. On/Off key Half Load function 3. Start/Pause/Cancel key Fast+ Function 4. Time Delay key SteamGloss Function TrayWash Function 6. Programme Selection keys 15 16 7. Programme indicator 12. End of Programme indicator 8. -
Page 32: Keys
Operating the product Keys 3. Press Programme Selection keys until the number of the programme you On / Off key selected appears on the Programme It is used to turn on or off the machine. indicator. Use P+ to switch to the next Press On / Off Key to switch ON. - Page 33 Operating the product Dishwasher / User’s Manual 31 / 45 EN...
-
Page 34: Auxiliary Functions
Operating the product Auxiliary functions TrayWash Function Select Intensive 70°C programme and press Washing programmes of your dishwasher function key to run this function. are designed to obtain the best cleaning effect, considering the type of the soil, Half Load function soiling degree and properties of the dishes It is used to operate the machine without to be washed. -
Page 35: Programming The Washing Time
Operating the product Auto Tablet Feature Interior Lighting Auto Tablet is a feature which detects (depends on the model) the use of combined tablet detergents Some models have interior lighting to automatically. illuminate the interior when the door is opened. Drying performance of these After switching on your machine, type of detergents is improved... - Page 36 Operating the product to 24 hours every time you press the Once the programme starts a tune is key. played and the estimated time remained to the end of the programme will appear 4. Press Start / Pause / Cancel key to on the Display Information Line.
-
Page 37: Cancelling The Programme
Operating the product Child (Key) Lock the necessary operations required to cancel the programme. You may prevent other people from interrupting and changing the programme There might be residues of cycle and time delay while the machine is detergent or rinse aid left in the running. -
Page 38: Innerclean
Operating the product No rinse aid dispensed in P:0 wash position. icon will disappear after a while and the 1 dose of rinse aid is dispensed in P:1 washing programme resumes. position. Overflowing warning 2 doses of rinse aid are dispensed in P:2 position. -
Page 39: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 40: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 41: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 42: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 43 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 44 Troubleshooting the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme. There is a different odour in the machine A new machine has a peculiar odour.
- Page 45 Troubleshooting Detergent remains in detergent dispenser. • Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent. • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
- Page 46 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
