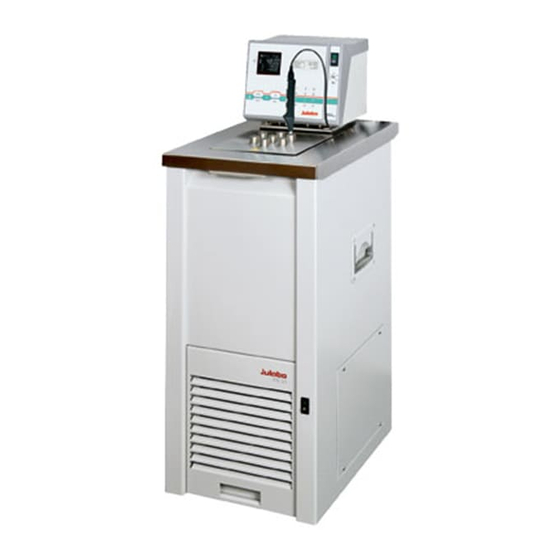

Julabo FK31-SL Operating Manual
  1. Manuals
  2. Brands
  3. Julabo Manuals
  4. Test Equipment
  5. FK31-SL
  6. Operating manual

Julabo FK31-SL Operating Manual

Calibration baths
Hide thumbs Also See for FK31-SL:
Table of Contents

Advertisement

Quick Links

Download this manual
English
Operating Manual
Calibration Baths
FK30-SL
FK31-SL
1.951.2829-V5
11/17
07.11.17
1.800.561.8187
information@itm.com
www.
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FK31-SL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Julabo FK31-SL

Summary of Contents for Julabo FK31-SL

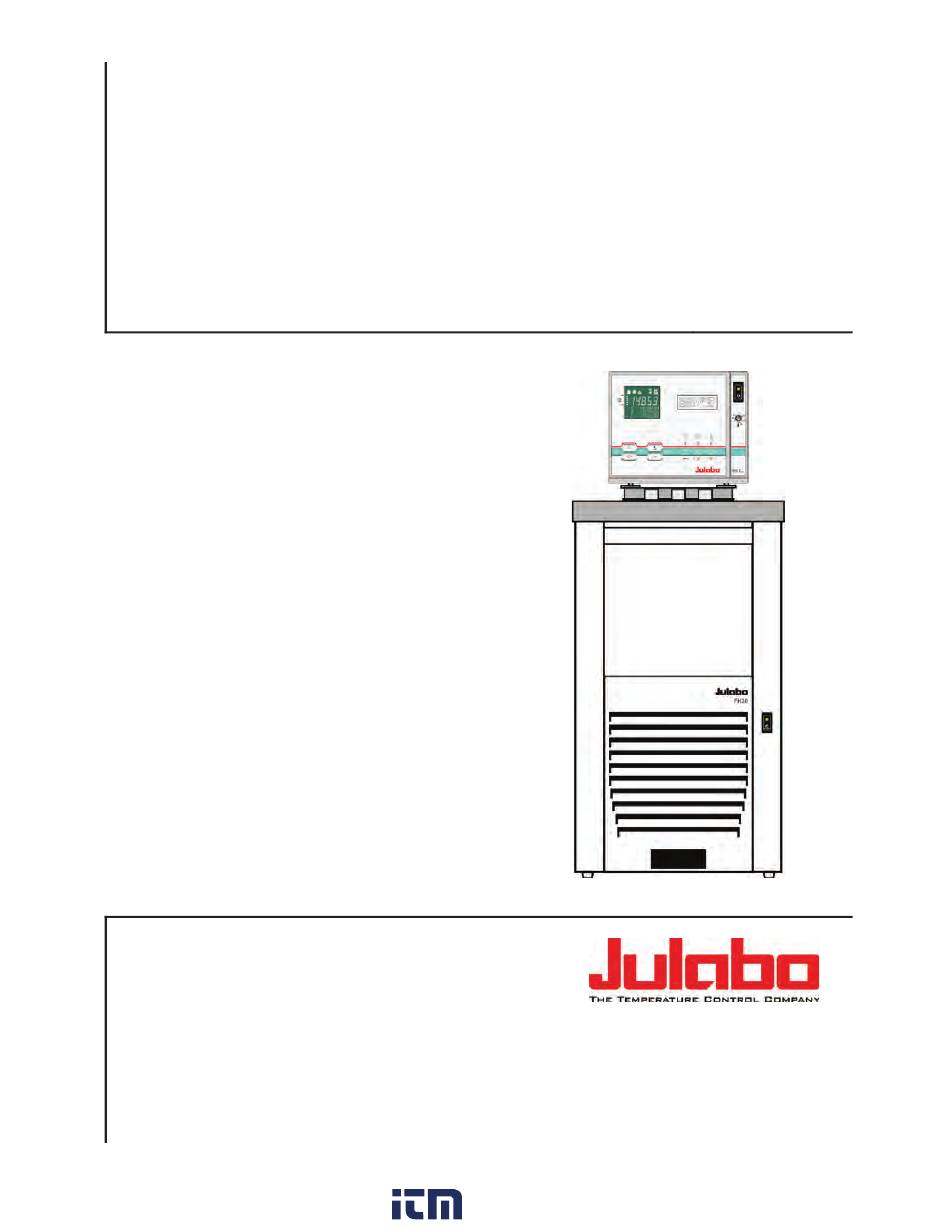

  • Page 1 English Operating Manual Calibration Baths FK30-SL FK31-SL 1.951.2829-V5 11/17 07.11.17 1.800.561.8187 information@itm.com www. .com...
  • Page 2 Congratulations! You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Operating manual ........................ 5 Intended use ......................... 5 1.1. Description ....................... 5 Operator responsibility – Safety recommendations ............6 2.1. Disposal ........................8 2.2. Warranty conditions ....................8 2.3. EC Conformity ......................9 2.4. Technical specifications ..................12 Operating instructions .......................
  • Page 4 12.3. List of commands ....................84 12.4. Status messages ....................88 12.5. Error messages....................... 88 13. Installation of electronic module with analog connectors ..........89 14. JULABO Service – Online remote diagnosis ............... 90 15. Cleaning / repairing the unit ..................91 1.800.561.8187 information@itm.com www.

  • Page 5: Operating Manual

    Operating manual Intended use JULABO circulators have been designed to control the temperature of specific fluids in a bath tank. JULABO circulators are not suitable for direct temperature control of foods, semi- luxury foods and tobacco, or pharmaceutical and medical products.

  • Page 6: Operator Responsibility - Safety Recommendations

    Operator responsibility – Safety recommendations Operator responsibility – Safety recommendations The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible.
  • Page 7 Warning label W26: Colors: yellow, black Hot surface warning. (The label is put on by JULABO) Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the respective safety recommendations. Also observe the pin assignment of plugs and technical specifications of the products.

  • Page 8: Disposal

    , indicating the serial no. The extended warranty will apply from the date of JULABO GmbH’s original invoice. JULABO GmbH reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge, or a new replacement unit will be supplied.

  • Page 9: Ec Conformity

    2.3. EC Conformity 1.800.561.8187 information@itm.com www. .com...
  • Page 10 Operator responsibility – Safety recommendations 1.800.561.8187 information@itm.com www. .com...
  • Page 11 1.800.561.8187 information@itm.com www. .com...

  • Page 12: Technical Specifications

    Operator responsibility – Safety recommendations 2.4. Technical specifications Calibration Baths FK30-SL FK31-SL Working temperature range °C -30 ... 200 -30 ... 200 Temperature stability °C ±0.005 ±0.005 Temperature uniformity °C <±0.01 <±0.01 Cooling capacity °C Medium: ethanol 0.46 0.34 0.15 0.46 0.34 0.15...
  • Page 13 Electrical connections: External alarm device 24-0 V DC / max. 25 mA Computer interface RS232 or RS485 External Pt100 sensor Optional for HL, SL (Order No. 8900100 Electronic module with analog connections) Programmer input -100 °C to 400 °C = 0 - 10 V or 0 - 20 mA or 4 - 20 mA Input for the signal of a flow meter or external manipulated variable Temperature recorder outputs 0 - 10 V (0 V = -100 °C, 10 V = 400 °C)
  • Page 14 The operator undertakes to have maintenance, repair, service, recovery and recycling work carried out by certified personnel who have been authorized by JULABO. All such work must be documented. The operator must keep records and archive them for at least five years.

  • Page 15: Operating Instructions

    Operating instructions Safety notes for the user 3.1. Explanation of safety notes In addition to the safety warnings listed, warnings are posted throughout the operating manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”...

  • Page 16: Safety Recommendations

    Safety notes for the user 3.3. Safety recommendations Follow the safety instructions to avoid personal injury and property damage. Also, the valid safety instructions for workplaces must be followed. Only connect the unit to a power socket with an earthing contact (PE – protective earth)! The power supply plug serves as a safe disconnecting device from the line and must always be easily accessible.
  • Page 17 Caution: The temperature controlling i.e. of fluids in a reactor constitutes normal circulator practice. We do not know which substances are contained within these vessels. Many substances are: inflammable, easily ignited or explosive hazardous to health environmentally unsafe i.e.: dangerous The user alone is responsible for the handling of these substances! The following questions shall help to recognize possible dangers and to reduce the risks to a minimum.

  • Page 18: Operating Controls And Functional Elements

    Operating controls and functional elements Operating controls and functional elements Front view Rear view Mains power switch, illuminated for circulator Mains power switch, illuminated for cooling machine VFD COMFORT-DISPLAY Header: Control indicators Line 1: Actual value internal or external The display is depending on the selected control mode in the menu >...
  • Page 19 PS Capacity in % - with manipulated variable set to >serial<* or >eprog<* Heater capacity in Watts Mains voltage Volts Flow rate in liters/minute (providing EPROG input set to >Flow rate<) *refer to >MENU / CONFIGIGURATIO> page 34 Control indicators in the header: Heating / Cooling / Alarm / emote control Control indicators in the header:...
  • Page 20 Operating controls and functional elements Keypad 1 Navigation keys 1. Key: >OK< Start / Stop (pump / heater ) 2. >OK< in the menu Menu item / select submenu for setting Save set value Save selected parameter A beep signals the end of setting After the actions Start, Stop and change from VFD Display to standard display the key is locked for a short time.
  • Page 21 Pt100 Interface RS232 / RS485: remote control via personal computer SERIAL Socket for a precision reference sensor Socket: control cable of JULABO refrigerated circulator or output for alarm messages Option: Electronic module Order No. 8 900 100 The circulator automatically recognizes the connected electronic module.

  • Page 22: Preparations

    Preparations Preparations 5.1. Installation Place the unit on an even surface on a pad made of non-flammable material. Cooling machine, pump motor and electronics produce intrinsic heat that is dissipated via the venting openings! Never cover these openings! Keep at least 20 cm of open space on the front and rear venting grids. The place of installation should be large enough and provide sufficient air ventilation to ensure the room does not warm up excessively because of the heat the instrument rejects to the environment.

  • Page 23: Bath Fluids

    Fire or other dangers when using bath fluids that are not recommended: Use only non-acidic and non-corroding bath fluids. JULABO assumes no liability for damage caused by the selection of an unsuitable bath liquid. Unsuitable bath fluids are fluids which, e.g., 1.800.561.8187...

  • Page 24: Filling / Draining

    Preparations are highly viscous (much higher than recommended at the respective working temperature) have a low viscosity and have creep characteristics have corrosive characteristics or tend to crack. No liability for use of other bath fluids! 5.3. Filling / draining Notice: Pay attention to the thermal expansion of bath oil during heating to avoid overflowing of the liquid.

  • Page 25: Operating Procedures

    Operating procedures 6.1. Power connection Caution: Only connect the unit to a power socket with earthing contact (PE – protective earth)! The power supply plug serves as safe disconnecting device from the line and must be always easily accessible. Never operate equipment with damaged mains power cables. Regularly check the mains power cables for material defects (e.g.

  • Page 26: Switching On The Cooling Machine

    Operating procedures 6.2.1. Switching on the cooling machine Switch on the cooling machine using the switch (1b) . Control of the cooling machine: With the mains switch (1b) turned on, the circulator automatically switches the cooling machine off and on. To save energy, turn off the cooling machine with the mains switch (1b) whenever cooling is not required.

  • Page 27: Setting Of Temperatures

    Setting of temperatures Press the key to call up the menu for temperature selection. 3 different working temperatures can be adjusted. Their values are freely selectable within the operating temperature range. The temperatures can be set in start or stop mode. Setting of working temperature in the menu 1.
  • Page 28 Safety installations, warning functions Warning: Adjust excess-temperature safety device below the flash point of the bath fluid. In case of wrong setting there is a fire hazard! We disclaim all liability for damage caused by wrong settings! SafeTemp: Setting range: 20 °C ... 320 °C Rough setting can be effected by using the temperature scale.
  • Page 29 The alarm is indicated by optical and audible signals (continuous tone). The following error message appears on the VFD COMFORT-DISPLAY: Press for help on the LCD Depending on the setting of >ControlType - internal or external< the actual temperature values for both sensors are shown/indicated on both displays.
  • Page 30 Safety installations, warning functions Setting >WARNING< A mere warning function with optical and audible warning signal (interval tone) A message appears on the VFD COMFORT-DISPLAY: OverTemp SubTemp The LCD –DISPLAY shows the message: Setting >ALARM< Temperature limit with shutdown of heater and circulating pump. An audible alarm sounds (continuous tone) and a message appears on the VFD COMFORT-DISPLAY: OverTemp...

  • Page 31: Early Warning System, Low Level Protection

    8.0.1. Early warning system, low level protection This low level protection is independent of the control circuit and is divided into two sections: 1. Switch in stage 1 recognizes a critical fluid level DBGM: 20306059.8 An audible warning (interval tone) sounds and a message appears on the VFD COMFORT-DISPLAY.

  • Page 32: Menu Functions

    Menu functions Menu functions The term „menu functions“ refers to adjustments such as Menu level 1 Start program Page 34 This menu will start a previously set program. Administration and creation of programs Page 39 Electronically adjustable pump capacity Page 43 The capacity of the circulating pump is set by adjusting the motor speed.
  • Page 33 Menu level 1 Adjustable interface parameters Page 58 BAUDRATE, PARITY, HANDSHAKE ATC - Absolute Temperature Calibration, Page 59 Sensor calibration internal sensor, Sensor calibration external sensor 3-point calibration Limitations of temperature and capacity Page 66 Setpoint Max / Min - Maximum and minimum setpoint Heating Max –...

  • Page 34: Start Of A Program

    Menu functions 9.1. Start of a program The start menu of the integrated programmer allows one of six previously stored temperature programs to be called up and started. The profiles are started manually or via the integrated timer. Requirements: 1. Create a program. (refer to next chapter) 2.
  • Page 35 Level 2 Parameter /Value Set desired parameters with Confirm >now< with the key and the program will start immediately start at the set time under parameter (time ). Set time in the example below: 09. August 2009, 11:15 hrs Submenu TIMER If the parameter time is selected, a further submenu opens for setting the start time.

  • Page 36: Status At The End Of A Program

    Menu functions 9.1.1. Status at the end of a program Program end StdBy , PSetp, Setp 1, Setp 2 , Setp 3 This parameter is used to determine if the unit switches to the -OFF- condition at the end of a profile or if temperature control is continued, and the working temperature setpoint that is to be used if temperature control is continued.

  • Page 37: Editing After Start

    9.1.3. Editing after Start The programmer allows a running program to be edited. Initiation and exit of the editing function: After the start enter the submenu „3 EDITOR“.by pressing the key See chapter „program administration, creation“ page 39 Exit the editing modus anytime by pressing the key Particularity for changes in a section that is currently in process.

  • Page 38: Interruption After A Power Failure

    Menu functions 9.1.5. Interruption after a power failure It is possible to operate the programmer safely in case of a power failure. Important: For this, >Autostart< needs to be set in the >Configuration< menu. If the AUTOSTART function is activated, the programmer starts again at a point approx.

  • Page 39: Program Administration, Creation

    9.2. Program administration, creation The integrated programmer permits fast and easy programming of setpoint temperature sequences. This temperature sequence is called program. A program is composed of individual sections (Step). The sections are defined by duration (t) or Gradient (°/t) and target temperature.
  • Page 40 Menu functions Editing PrgNr: Set the program you wish to create. 0 ... 5 Setpoint TI : Time [hh:mm] or GRD: Gradient [°/t] = [°/min] Change type of program in MENU >configuration<, menu item >Programmtyp/program type< . Step 0 … 59 Press the key if a parameter is to be retained.
  • Page 41 Delete It is possible to delete an entire program or consecutive sections Delete PrgNr: Set the program you wish to delete 0 ... 5 Delete from Step X to Step X (0 … 59) Press the key if a parameter is to be retained. (prior to OK) Submenu >Delete<...
  • Page 42 Menu functions Print Every program can be printed via the serial interface for control and documentation purposes. Press the key if a parameter is to be retained. (prior to OK) Submenu >Print< Level 2 Set menu item >Print PrgNr.< by pressing Set desired >PrgNr.<...

  • Page 43: Setting The Pump Pressure

    9.3. Setting the pump pressure The capacity of the circulating pump is set by adjusting the motor speed Press the key if a parameter is to be retained. (prior to OK) Submenu >Pump< Level 2 The set pump stage is displayed. Example: 1 Confirm by pressing Set required pump stage by pressing Example: 3...

  • Page 44: Configuration

    Menu functions 9.4. Configuration Press the key if a parameter is to be retained. (prior to OK) Level 2 Parameter level Remote control via serial interface. Possible parameters: off / on Switch on and off remote control by pressing First set the >type< of interface (RS232 or RS485) in the MENU >INTERFACE SERIAL<...
  • Page 45 Level 2 Parameter level Pump-Mode Possible parameters: P. on / P. off Switch on and off >Off-Mode by pressing P.on continuous operation of circulating pump P.off circulating pump is linked to Start/Stop ActVar - actuating variable Possible parameters: control, Eprog, serial Set desired parameters with Programming of variables for the parameters >...
  • Page 46 Menu functions Level 2 Parameter level Reset Return to factory settings by pressing >Reset?< returns all set values to the factory setting except for date and time. A RESET can be effected only in the – OFF- mode. During the message >Running < all parameters are reset to factory settings.

  • Page 47: Remote Control Via The Serial Interface

    9.4.1. Remote control via the serial interface Setpoint is set via the serial RS232/RS485 interface through a PC or Factory setting: off superordinated data system. In the header of the VFD COMFORT-DISPLAY, an “ ” illuminates. It indicates that remote control mode is active. The selected setting is shown on the LCD DIALOG-DISPLAY.

  • Page 48: Autostart

    - Autostart off (Factory setting) Note: The circulator has been configured and delivered by JULABO according to N.A.M.U.R. recommendations. This means for the start mode that the unit must enter a safe operating state after a power failure (non- automatic start mode).

  • Page 49: Actvar - Actuating Variable

    9.4.5. ActVar - actuating variable The variable (ACTuating VARiable) corresponds to the extent to which the heater or cooling unit of the circulator is controlled. Heat or cold is applied to the bath according to this variable. If this happens with the control electronics of the circulator, called >...

  • Page 50: Setting Of Clock And Date

    Menu functions 9.4.6. Setting of clock and date The internal real time clock allows starting a program any time. The clock is set to the local mean time (MEZ) at the factory. If the unit is operated in a different time zone, the clock can be adjusted in this menu.

  • Page 51: C-Sensor - Precision Reference Sensor

    9.4.11. C-Sensor - Precision reference sensor Temperature measurement with a precision reference sensor Precision reference sensor for applications in quality assurance, Factory setting: no calibration services and laboratories. Possible parameters: yes – Temperature measurement with a precision reference sensor SERIAL Connect the higly accurate temperature sensor to the RS232 socket ) on the rear of the circulator.

  • Page 52: Control

    Menu functions 9.5. Control The circulator is designed for internal and external temperature control. This can be switched in this submenu. Only the set of parameters corresponding to the particular setting is displayed. Control internal Control external For external temperature control and measurement connect a Pt100 external sensor to the socket at the rear of the circulator.
  • Page 53 Control Type internal Parameter-Level The value flashes. Set by using the numeric keypad and confirm by pressing Example: Setting range: 0.1 … 99.9 K The value flashes. Set by using the numeric keypad and confirm by pressing Setting range: 3 … 9999 s The value flashes.

  • Page 54: Control Internal / External

    Menu functions 9.5.1. Control internal / external The control type can be adjusted in the -OFF- mode only. Possible parameters: intern internal temperature control extern external temperature control with external Pt100 sensor IMPORTANT: Additional measures for external temperature control. ext. Connect a Pt100 sensor to the socket on the rear of the circulator.

  • Page 55: Selftuning

    9.5.2. Selftuning When performing a selftuning for the controlled system (temperature application system), the control parameters Xp, Tn and Tv are automatically determined and stored. Possible parameters: off - no selftuning The control parameters ascertained during the last identification are used for control purposes.

  • Page 56: Cospeed - Extern

    Menu functions 9.5.4. CoSpeed - extern CoSpeed: This parameter affects the temperature pattern only in case of external control. Possible parameters: 0 ... 5 During selftuning, the control parameters Xp, Tn, °C Int. temperature and Tv of a controlled system are automatically determined and stored.
  • Page 57 Optimization instructions for the PID control parameters: optimum setting The heat-up curve reveals inappropriate control °C settings. Inappropriate settings may produce the following heat-up curves: Xp too low Tv/Tn too low °C °C Xp too high or Tv too high Tv/Tn too high or Xp too high °C °C...

  • Page 58: Serial Interface

    Menu functions 9.6. Serial Interface For communication between the circulator and a PC or a superordinated Factory settings: process system, the interface parameters of both units must be identical. 4800 Baud even The adjustment is usually carried out one time only in the >Interface serial< hardware handshake menu.

  • Page 59: Atc Absolute Temperature Calibration, 3-Point Calibration

    9.7. ATC Absolute Temperature Calibration, 3-point calibration ATC is used to compensate for a temperature difference between the circulator and a defined measuring point in the bath tank that may develop for physical reasons. internal external Principle: For ATC calibration, in steady state the bath temperature at the location Example: of the temperature sensor (CT) is determined at the respective adjusted 1-point calibration...
  • Page 60 Menu functions Press the key if a parameter is to be retained. (prior to OK) Level 2 Parameter-Level The parameter flashes, switch by pressing The parameter flashes, switch by pressing >no< Carry out an ATC calibration >yes< return to standard operation after calibration.
  • Page 61 The value >TmpValue< is only indicated In addition the measured temperature value >CalValue X< is saved during the next step. The value flashes. Set by using the numeric keypad and confirm by pressing If only a 2-point calibration is carried out, the following menu items are not indicated anymore The value >TmpValue<...

  • Page 62: Atc Fühler - Intern / Extern

    Menu functions 9.7.1. ATC Fühler - intern / extern In the first submenu the ATC function is set for the >intern< internal or the >extern< external temperature sensor. Calibration can be carried out for the internal temperature sensor and for the external temperature sensor connected to the socket „ext.

  • Page 63: Example: 3-Point Calibration For Internal Control

    9.7.4. Example: 3-point calibration for internal control In the temperature range from 80 °C to 160 °C the calibration curve of the temperature sensor (TT) is to be adjusted to the actual temperatures at measuring point (CT). 1. Set circulator to internal control: The type of control can be set only in the –OFF- mode.
  • Page 64 Menu functions The value >TmpValue< is only indicated. In addition the measured temperature value >CalValue X< is saved during the next step. The value flashes. Set by using the numeric keypad and confirm by pressing Return to 2. Set working temperature value: 120.00 °C The value >TmpValue<...

  • Page 65: Limits

    9.8. Limits The >Limits< menu allows the minimum and maximum values to be set for all important setting ranges and capacity variables. Control internal Control external Press the key if a parameter is to be retained. (prior to OK). Level 2 Parameter-level The parameter flashes.

  • Page 66: Limits For Internal Control And External Control

    Menu functions The parameter flashes. Set by using the numeric keypad and confirm by pressing The parameter flashes. Set by using the numeric keypad and confirm by pressing The parameter flashes. Set by using the numeric keypad and confirm by pressing The parameter flashes.

  • Page 67: Limits For External Control

    9.8.2. Limits for external control INTERN MAX / MIN Restriction for the temperature range of the internal bath. Setting range: -94,9 °C ... +300,0 °C The limits IntMax and IntMin are only active in external control. IntMax and IntMin determine fixed limits for the temperature within the internal bath.

  • Page 68: Analog Inputs/Outputs

    Menu functions 9.9. Analog inputs/outputs If the electronic module is not fitted, the item >inputs/outputs< will be missing in the menu. In order to use the analog inputs and outputs, the circulator must be equipped with the electronic module, which is available as option. Order No.
  • Page 69 Level 2 Level 3 Parameter-level Select the scale for channel 1. The value flashes. Set by using the numeric keypad and confirm by pressing The value flashes. Set by using the numeric keypad and confirm by pressing Define the output value for channel 2. Possible parameters: ActInt, ActExt, Power, Setpoint The parameter flashes, switch by pressing...
  • Page 70 Menu functions Level 2 Level 3 Parameter-level Select the scale for channel 3. The value flashes. Set by using the numeric keypad and confirm by pressing The value flashes. Set by using the numeric keypad and confirm by pressing Possible parameters: 0-20 mA, 4-20 mA The parameter flashes, switch by pressing Possible parameters: Setpoint, variable, flow rate, pressure...
  • Page 71 Level 2 Level 3 Parameter-level The value flashes. Set by using the numeric keypad and confirm by pressing The value flashes Set by using the numeric keypad and confirm by pressing The value >setpoint< is only indicated. (Parameter Level) Possible parameters: inactive, active The parameter flashes, switch by pressing Possible parameters: Alarm, Stand By, Alarm+ Stand By...

  • Page 72: Outputs Of The Connector - Reg+E-Prog

    Menu functions 9.9.1. Outputs of the connector - REG+E-PROG Outputs of the connector 1. First define the desired output value for channels 1 to 3: ActInt internal actual temperature value (bath temperature) ActExt external actual temperature value (external sensor) Power periodic or intermittent heating or cooling Setpoint active setpoint temperature (setpoint 1, 2, 3/integr.

  • Page 73: Input Of The Connector - Reg+E-Prog

    9.9.2. Input of the connector - REG+E-PROG E-PROG - Input Setting is necessary if Menu >Configuration< 1. the Setpoint is to be set via an external voltage or current source or programmer For this, in the menu >Configuration<, first set the menu item >Setpoint<...
  • Page 74 Menu functions After returning the LCD display to standard display by pressing the , the temperature value adjusted and set on the external voltage or current source is displayed in line 1 (Example: Eprog 50.00 C). This EPROG input enables the use of different voltage and current values as program parameters.

  • Page 75: External Stand-By Input

    9.9.3. External Stand-by input Ext. StBy (External STAND-BY input) Stand-By input for external switch-off. Possible parameters: inactive - Stand-By input is ignored active - Stand-By input is active Activate the standby input: 1. Under menu item >Ext. StBy<, set the parameter to >active<. 2.

  • Page 76: Alarm-Output

    Menu functions 9.9.4. Alarm-output Alarm output (10) (for external alarm signal) This socket is a potential-free change-over contact. With the adjustments in the menu >Inputs/Outputs<, all operating conditions can be signaled without having to change the pin assignments. Meaning of the terms under menu item >Function< : ALARM The circulator is in condition >StandBy<...

  • Page 77: Troubleshooting Guide / Error Messages

    The float is defect (e. g., because damaged in transit). Repair by authorized JULABO service personnel. During the self-test after switch-on a short-circuit is registered between pin 2 and pin 4 of the control cable or the control cable is interrupted during operation.
  • Page 78 Troubleshooting guide / Error messages Defect of the working or excess temperature sensor. The working temperature and excess temperature sensors report a temperature difference of more than 35 K. Other errors (I C-BUS errors) Error in A/D converter Excess temperature sensor is defective. The safety temperature is below the working temperature setpoint.
  • Page 79 Replenish the bath tank with bath fluid. After eliminating the malfunction, turn the mains power switch off and on again to cancel the alarm state. If the unit cannot be returned to operation, contact an authorized JULABO service center. Special message “CONFIGURATION ERROR”...

  • Page 80: Electrical Connections

    Electrical connections 11. Electrical connections Notice: Use shielded cables only. The shield of the connecting cable is electrically connected to the plug housing. The unit ensures safe operation if connecting cables with a maximum length of 3 m are used. The use of longer cables does not affect proper performance of the unit, however external interferences may have a negative impact on safe operation (e.g.
  • Page 81 8 900 110 USB interface adapter cable / Control output The connector may only be used for control of a JULABO refrigerated circulator or JULABO MVS Solenoid valve controller for cooling water. Pin assignment: Signal (only with attached JULABO equipment) +24 V (I max.
  • Page 82 Electrical connections Programmer input / temperature recorder output Signal 1 Voltage output Channel 1 0 ... 10 V 2 Voltage output Channel 2 0 ... 10 V 3 GND for outputs REG+E-PROG 4 Programmer input EPROG 0 to 10 V / 0 to 20 mA 5 Current output Channel 3 0 to 20 mA / 4 to 20 mA...

  • Page 83: Remote Control

    12. Remote control 12.1. Setup for remote control 1. Check the interface parameters for both interfaces (on the circulator and PC) and make sure they match. In the >Interface< menu, set the menu item >Type< to >RS232< or SERIAL >RS485<. 2.

  • Page 84: List Of Commands

    Remote control Important times for a command transmission: To ensure secure data transfer, the time gap between two commands should be at least 250 ms. The circulator automatically responds to an IN command with a data string followed by an LF (Line Feed). The next command should be sent only after 10 ms.
  • Page 85 Command Parameter Response of circulator OUT_MODE_03 Set external programmer input to voltage. Voltage 0 V ... 10 V OUT_MODE_03 Set external programmer input to current. Current 0 mA ... 20 mA OUT_MODE_04 Temperature control of internal bath. OUT_MODE_04 External control with Pt100 sensor. OUT_MODE_05 Stop the unit = R –OFF-.
  • Page 86 Remote control IN commands: Asking for parameters or temperature values to be displayed. Command Parameter Response of circulator VERSION None Version number of the software (V X.xx) STATUS none Status message, error message (see page 88) IN_PV_00 none Current bath temperature. IN_PV_01 none Heating power being used (%).
  • Page 87 Command Parameter Response of circulator IN_PAR_08 none Tv control parameter of the internal controller. IN_PAR_09 none Xp control parameter of the cascade controller. IN_PAR_10 none Proportional share of the cascade controller. IN_PAR_11 none Tn control parameter of the cascade controller. IN_PAR_12 none Tv control parameter of the cascade controller.

  • Page 88: Status Messages

    Remote control 12.4. Status messages Status messages Description 00 MANUAL STOP Circulator in „OFF“ state. 01 MANUAL START Circulator in keypad control mode. 02 REMOTE STOP Circulator in „r OFF“ state. 03 REMOTE START Circulator in remote control mode. 12.5. Error messages Error messages Description -01 LOW LEVEL ALARM...

  • Page 89: Installation Of Electronic Module With Analog Connectors

    Error messages Description -20 WARNING: CLEAN CONDENSOR Cooling of the condenser is impaired. OR CHECK COOLING WATER Clean air-cooled condenser. CIRCUIT OF REFRIGERATOR Check the flow rate and cooling water temperature for a water-cooled condenser. -21 WARNING: COMPRESSOR STAGE First-stage compressor does not work. 1 DOES NOT WORK -22 WARNING: COMPRESSOR STAGE Second-stage compressor does not work.

  • Page 90: Julabo Service - Online Remote Diagnosis

    JULABO Service – Online remote diagnosis 14. JULABO Service – Online remote diagnosis JULABO circulators of the HighTech series are equipped with a black box. This box is implemented in the controller and records all significant data for the last 30 minutes.

  • Page 91: Cleaning / Repairing The Unit

    The circulator is designed for continuous operation under normal conditions. Periodic maintenance is not required. The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to time.
