16CH DVR
Quick Start Guide
1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.5
5. Rear Panel Connectors..............P.7
16CH DVR Quick Start Guide V1.5 P.1
Advertisement
Table of Contents
Related Manuals for Edis TS PVD16
Summary of Contents for Edis TS PVD16

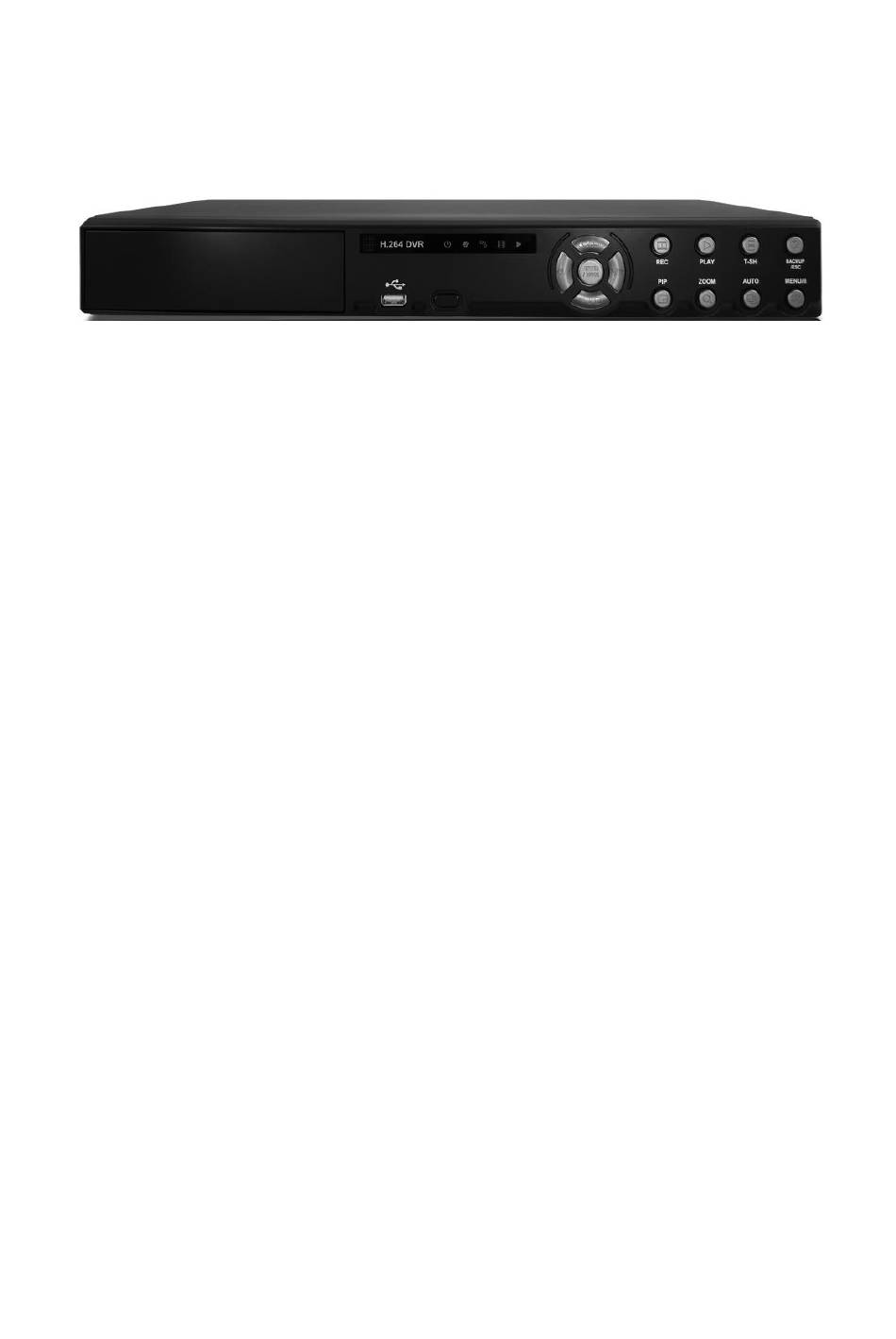

- Page 1 16CH DVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.4 4. Front Panel Controls....P.5 5. Rear Panel Connectors....P.7 16CH DVR Quick Start Guide V1.5 P.1...
- Page 2 1. DVR 2. Quick Start 3. IR Remote Control Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. IDE to SATA Power Cord 9. Power Cord 10. SATA Cord Note: Standard shipping products do not include HDD 16CH DVR Quick Start Guide V1.5 P.2...
- Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference.
- Page 4 DVD-RW Installation Standard shipping products do not include HDD and DVD-RW) Step 1: Remove the front cover from DVR. Step 3: Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 2: Put the DVD-RW into the unit as indicated. Step 4: Connect the power and the flat cables as indicated.
- Page 5 ① ② ③ ④ ⑤ ⑥ ⑦ ○ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ Control Keys Description 1. DVD Writer Optional DVD-RW backup device. Power: Power is on. HDD: Hard disk is in use. 2. LED Display LAN: Connected to the internet (in red): Remote user logged in. (From left to right) REC: Recording.
- Page 6 In SETUP mode, press to enter values. In PLAYBACK mode, switch 10. ENTER / MODE between full, quad, 9-channel, 16-channel display in order. 11. PIP In LIVE mode, display with picture in picture format. ZOOM In LIVE or PLAYBACK mode, enlarge the display of a channel. AUTO Auto Sequence display.
- Page 7 BNC port for the main monitor. You can switch to SPOT MAIN monitor Monitor by GUI setting. VIDEO IN BNC input ports for cameras, 16 in total. AUDIO OUT RCA output port for audio signal. EXTERNAL I/O EXTERNAL I/O port. DC 12V 40mm X 40mm fan.
