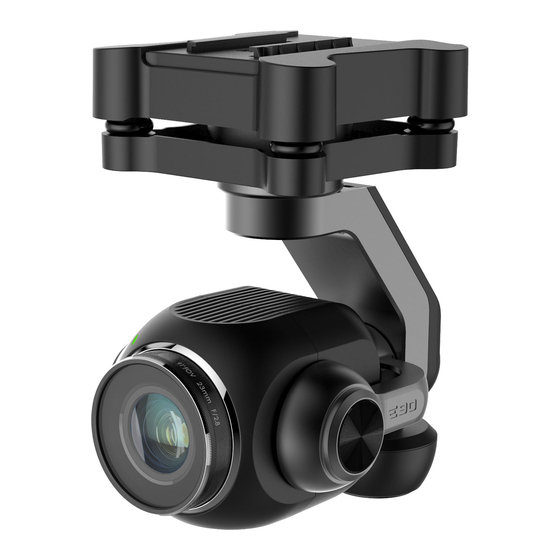

Summary of Contents for YUNEEC E90
- Page 1 QUICK START GUIDE V1.0...
-
Page 2: Introduction And Overview
Introduction and Overview Damping Plate Camera USB Port LED Status Indicator Micro SD Port Camera Lens 5GHz Antenna... -
Page 3: Specifications
Specifications General Gimbal Dimensions: 4.5''*3.1''*5.1'' (115*80*130mm) Number of Axis: 3 Weight: 12.3oz (350g) Control Angle Accuracy: ±0.02° Maximum Control Range: Tilt: Camera -Angle Mode: between 0°and -90° Camera Lens: 23mm/F2.8 -Velocity Mode: between +15°and -90° FOV: 91° Pan: 360°limitless Electronic Shutter: 8s---1/8000s Maximum Control Speed: Equivalent Focal Length: 23mm Tilt: 30°/s... - Page 4 Find the arrow printed on the top of the damping plate, which indicates the correct direction for installa- tion. Step 2. Slide the E90 in the indicated direction all the way into the mounting slot, until the E90 is secured by the locking clip. Step 3.
- Page 5 ] on the top right corner on the main Pause interface of ST16S. Action Step 3. Tap the serial number of the E90 when the following Not Connected window pops up. (If multiple Yuneec UAS are used, Select Vehicle to Connect NO CAMERA...
-
Page 6: Collection And Processing Of Data
Do not touch or move the E90 gimbal camera until the initialization process has been completed! Do not try to repair the E90 gimbal camera by yourself! Repairs must go to an authorized service center. The following special terms are used throughout the product literature to indicate various levels of potential... - Page 7 Disclaimer Yuneec Electric Aviation cannot be held liable for any damage, injury or for use of the product in violation with legal regulations, especially in the following circumstances: Damage and/or injury as well violation of legal regulations resulting from a failure to comply with the operating instructions or the instructions at www.yuneec.com, product information, user manual and other legally binding information.
-
Page 8: Regulation Information
Damage and/or injury as well as violation of legal regulations caused by flying in legally defined no-fly zones. Further losses which do not fall within the scope of use defined by Yuneec Electric Aviation as improper. This product is designed for both professional use and personal, private use. The national and international laws and regulations in force as the time of taking off must be adhered to. - Page 9 5G Wifi: 5560-5580MHz (27dBm), 5680-5700MHz (27dBm) EU Compliance Statement Hereby, Yuneec International (China) Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of the RED Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://yune.ec/de-downloads.
- Page 10 Customer Service Manufacturer: Yuneec International (China) Co., Ltd. Address:East Zhengwei Road No.388, Jinxi Town, Kunshan City, Jiangsu Province Distributor: CN: Youyu (Shanghai) Digital Technology Co.,Ltd. Address: B 15F, 461 HongCao Road,CaoHeJing Software Building XuHui District, Shanghai, China Tel.: +86 400 8207 506 saleschina@yuneec.com...
