Summary of Contents for Ivation IVASACMNT6

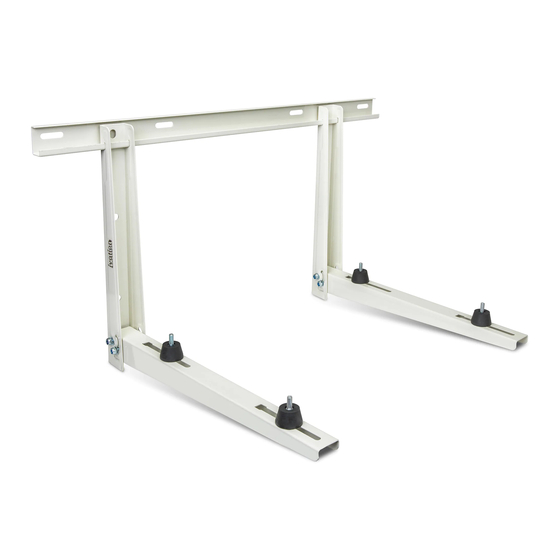

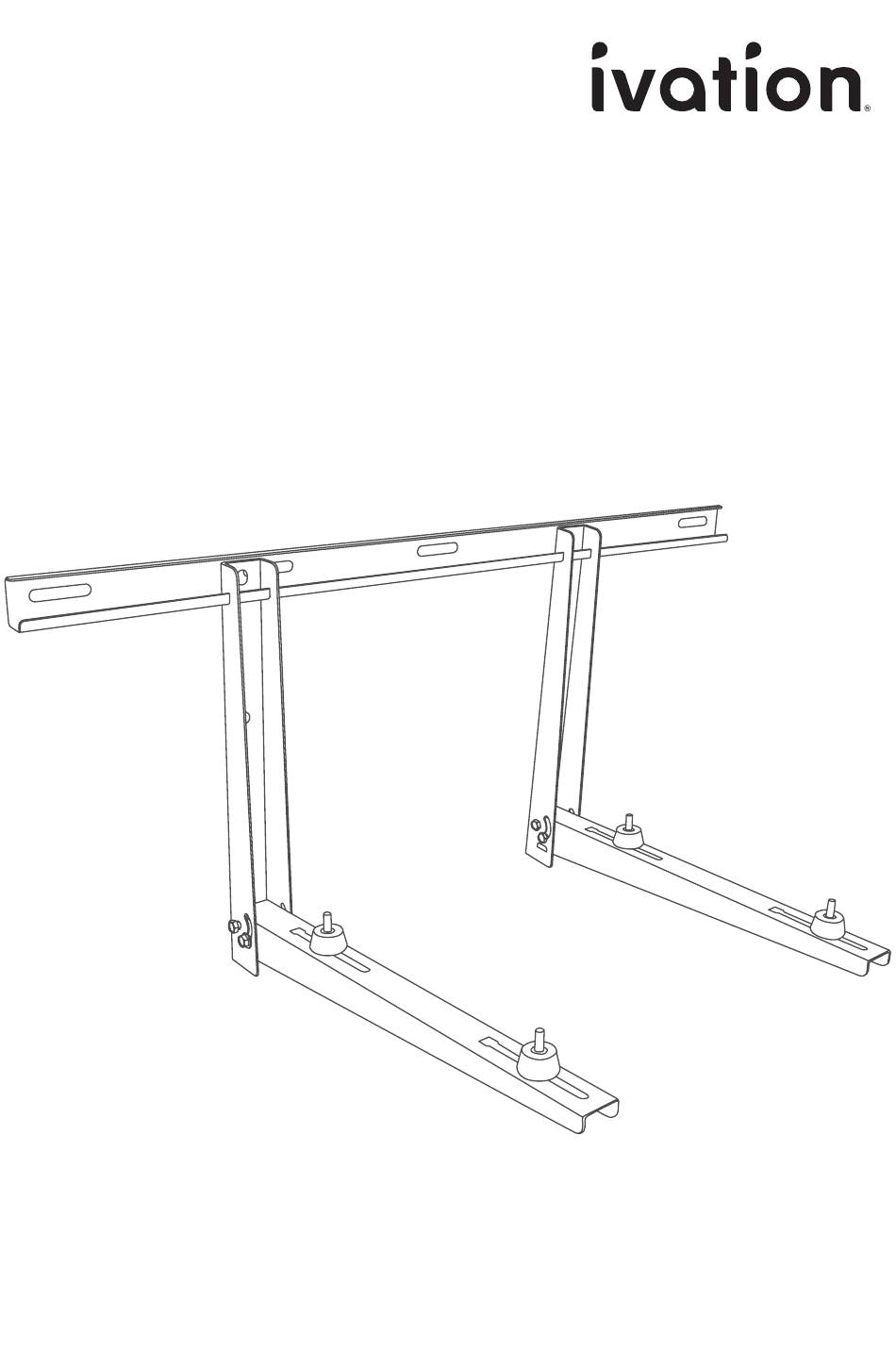

- Page 1 Split AC Unit Mount SKU: IVASACMNT6 User Guide...
-
Page 2: Table Of Contents
Thank you for purchasing the Ivation® Split Unit AC Mount. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. -
Page 3: Safety Precautions
• WARNING: Use with products heavier than the rated weight capacity of 331 lbs. (150 kg) may result in bracket instability, causing possible injury and damage. • WARNING: CHOKING HAZARD — Small parts. This product contains small parts that could present a choking hazard if swallowed and is not suitable for children under three (3) years old. -
Page 4: Product Overview
PACKAGE CONTENTS 1 x Back bar 8 x M10*90 mm expansion bolts 2 x Mounting brackets 8 x Anchors 4 x Anti-vibration dampers User guide 8 x Hex nuts 8 x Gaskets PRODUCT OVERVIEW... -
Page 5: Installation
If you are unsure about what type of mounting hardware you should use, please ask a professional for assistance. In no event shall Ivation® be liable for any direct, special, punitive, exemplary, indirect, or consequential damages resulting from improper installation, misuse, and/or use of the product beyond its limitations and/or intended purpose. - Page 6 2. Drill four (4) holes in the wall at the marked locations and insert four (4) wall anchors. Line up the anchors with the holes in the back bar and insert the four (4) expansion bolts. Tighten the bolts so the back bar is firmly in place.
- Page 7 Then, place the last four (4) anchors and insert the remaining four (4) expansion bolts and tighten. 6. Place a gasket on both sides of each damper. Then, place the damper on the mounting bracket and screw hex nuts on both ends of the damper. Place the air conditioner onto the mounting brackets.
-
Page 8: Care / Specs
CARE/MAINTENANCE At least every three (3) months, examine the support unit for any sign of instability. Make sure it is still secure and safe to use. SPECIFICATIONS Dimensions: 33.5" x 21.6" x 17.7" (850 x 550 x 450 mm) Weight Capacity: 331 lbs. (150 kg) CARE / SPECS... - Page 9 LIMITED WARRANTY TO ORIGINAL CONSUMER This Ivation® Split AC Unit Mount (“Product”), including any accessories included in the original packaging, as supplied and distributed new by an authorized retailer is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only, against certain defects in material and workmanship (“Warranty”) as follows:...
- Page 10 Company; (g) Consumable parts, such as batteries, fuses, and bulbs; (h) Cosmetic damage; or (i) If any Ivation® Split AC Unit Mount serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country.
-
Page 11: Warranty
1-866-849-3049 IVATION is a trademark of C&A IP Holdings, LLC, in the U.S, Canada, and the E.U. All other products, brand names, company names, and logos are trademarks of their respective owners, used merely to identify their respective products, and are not meant to connote any sponsorship, endorsement, or approval.
