Summary of Contents for Costway HW60337

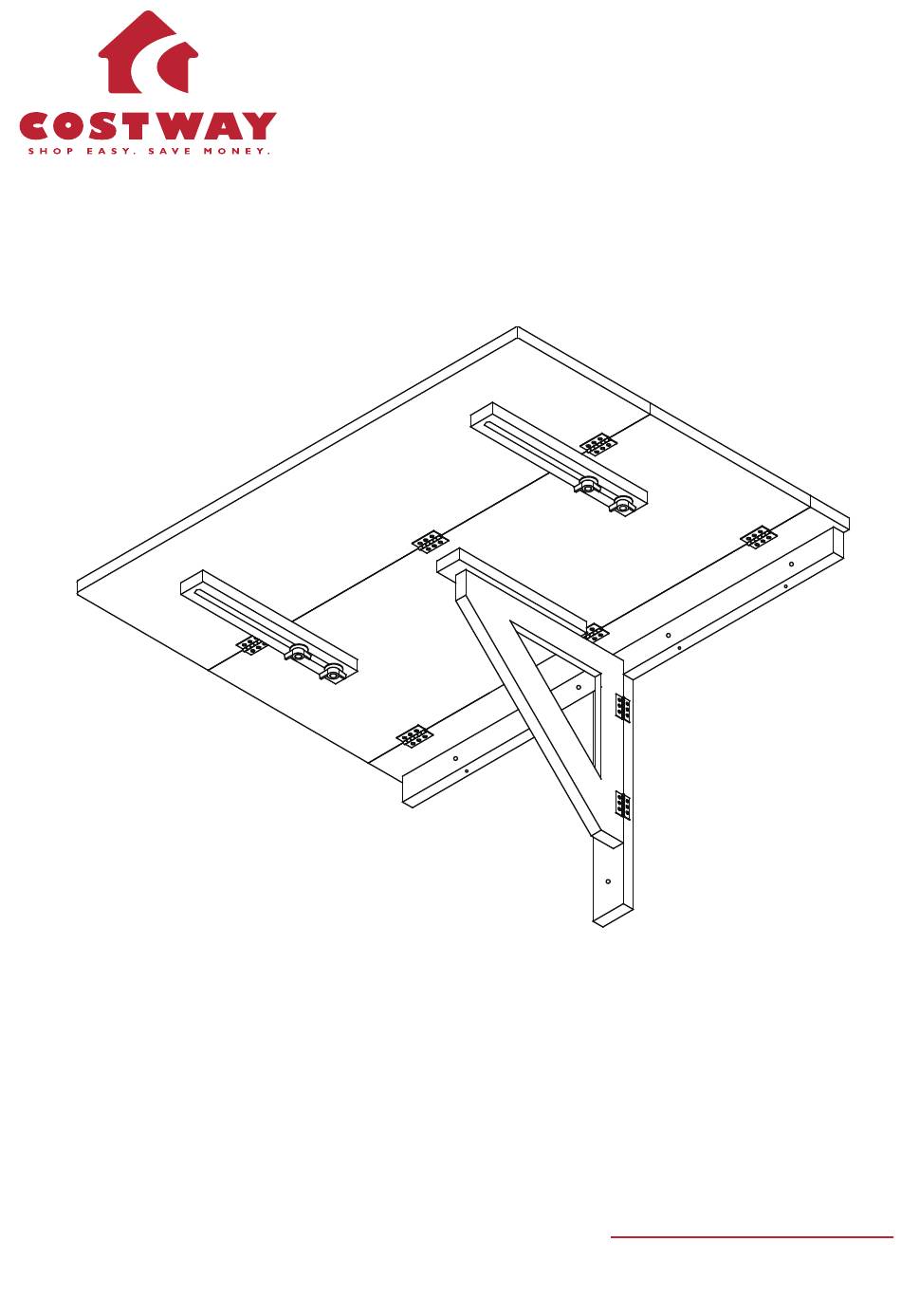

- Page 1 USER'S MANUAL Folding Desk...
-
Page 2: Product Assembly
PRODUCT ASSEMBLY Hardware List 8 pcs 12 pcs 6 pcs Hinge Screw Plastic Anchor 4*40mm 8*30mm 48 pcs 4 pcs 4 pcs Bolt Screw Wood Dowel 3*14mm 2 pcs 4 pcs Screw Flat Washer 4*25mm Parts List 1 pc 1 pc Front Top Panel Bottom Rail 1 pc... - Page 3 PRODUCT ASSEMBLY Part List Assembly Overview...
- Page 4 PRODUCT ASSEMBLY Step 1 Step 2 6 pcs 2 pcs a) Attach Bottom Rail (5) to (2) by using 36 pcs 4 pcs Wood Dowel (H) and Screw (C). 4 pcs 2 pcs a) Place Top Panels (1 & 2) and Back b) Attach Slide Top Rail (3) tidily as shown.
- Page 5 PRODUCT ASSEMBLY Step 7 Adjust the place of Slide Holder (4) and Triangle (6) to meet the function you need. Slide out Slide Holder (4) and Place Triangle (6) in side, you can fold both Top Panels as shown. Slide in Slide Holder (4) and Place Triangle (6) in middle, you can fold Front Top Panel as shown. Slide out Slide Holder (4) and Place Triangle (6) in middle, both Top Panels will be expanded as shown.
