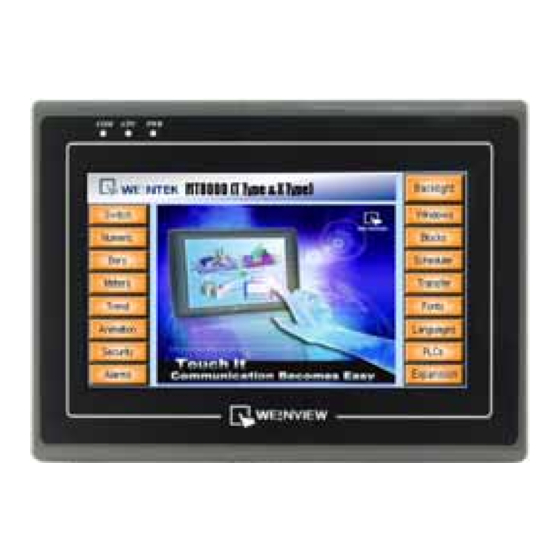

Scantech MT-8000 Series Installation Instruction

1.0 Installation and Startup Guide
Install Environment
Where
The MT-8000/6000 Series is designed for industrial. The temperature range of
Used
operating is from 14 to 113 °F (-10 to 45 °C), as majority of industrial environments. It
may not be suitable for using in certain outdoor applications. Please consult the factory
for advised usage in outdoor applications.
NEMA
The MT-8000/6000 Series front bezel is NEMA 4 rated. When installed properly in a
Rating
NEMA 4 panel, the NEMA 4 rating of the panel will not be compromised. This means
that fluids will not enter the panel during wash downs.
Electrical
The MT-8000/6000 Series has been tested to conform to European CE requirements.
Environment
This means that the circuitry is designed to resist the effects of electrical noise. This
does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching power supplies.
Their input and load cables should be screened to a central star earth point.
MT-8000/6000 series
MT-8070T/ MT-6070T
Installation Instruction
1
