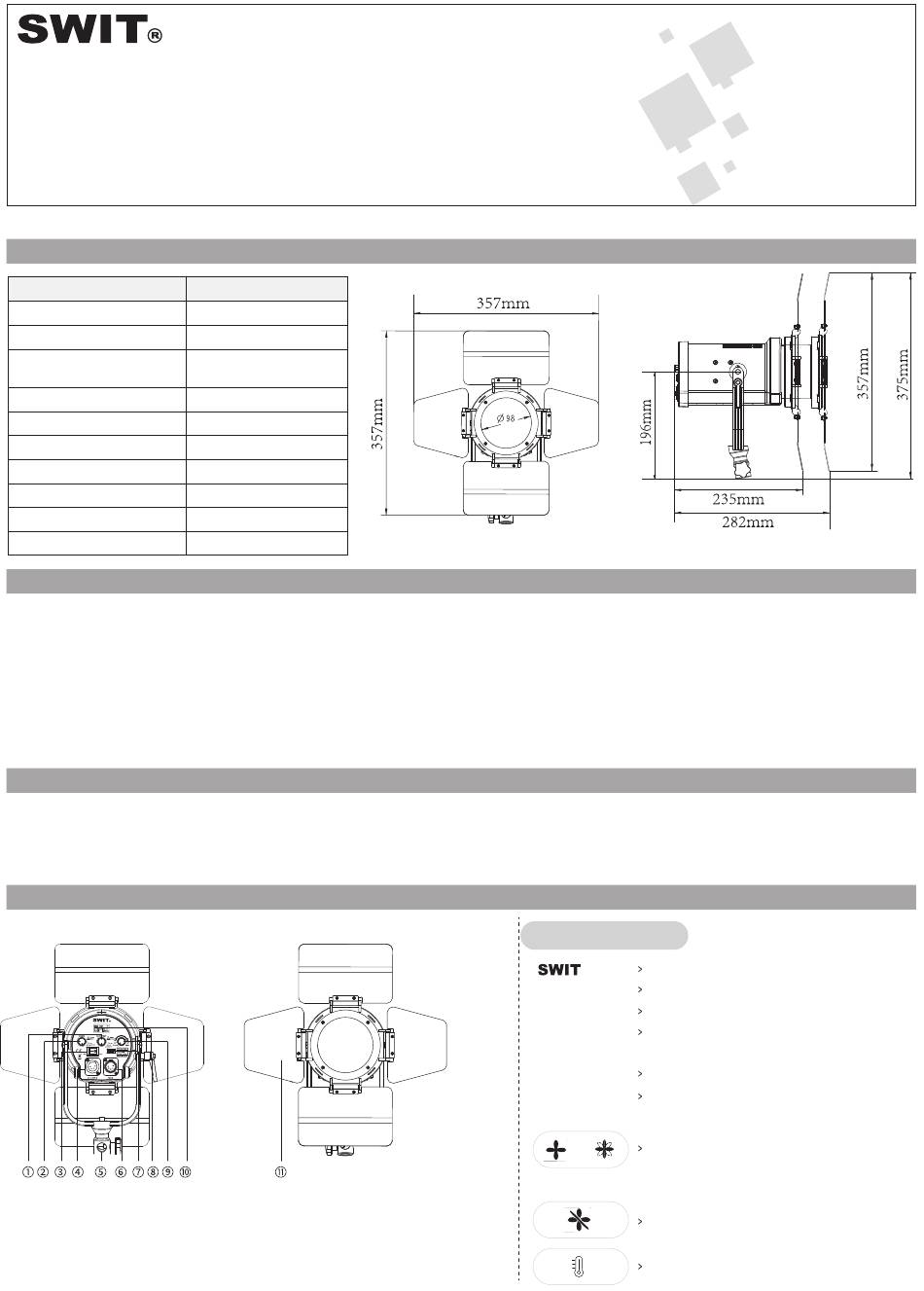

SWIT FL-C60D User Manual

FL-C60D
LED Spot Light
Ver: B
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.
Specification
Model
Color temperature
Brightness
Max illuminance
Half-intensity Beam angle
CRI
TLCI
Working voltage
Power
Dimension
Weight
Caution
1. Do not disassemble the light or touch the interior of the light with metal objects, so as not to cause damage;
2. Please avoid storing lights in dusty or humid environment to avoid damaging or affecting the usage;
3. In order to avoid accidental dropping and damage of the barn doors during transportation, please reduce the light head to the minimum
position for storage;
4. When the environment temperature is lower than -2 °C, the trailing of LCD fan will not affect the use;
5. The USB interface is reserved. Please use it according to the specified environment of SWIT relevant products. It cannot be used for other
purposes to avoid losses;
6. Use this product only within the temperature range of -10 °C ~ 40 °C.
Cleaning
1. Please use a soft dry cloth to clean the Fresnel lens of this product, or use a soft cloth slightly dipped in neutral detergent, but wipe it with a
soft dry cloth after cleaning.
2. Do not wipe the front panel with wet cloth, anhydrous alcohol, gasoline or a mixture of anhydrous alcohol and ether, otherwise it may
damage the Fresnel lens.
Appearance
Rear View:
① Color temperature knob
② Dimmer knob
③ POWER switch
④ DC 11-36V IN
USER MANUAL
S W I T E l e c t r o n i c s C o. , L t d .
FL-C60D
2700K-8000K
0%-100%
Spot: 25000Lux@1m
Flood:4000Lux@1m
Spot:15º ； Flood:60º
95
97
DC 11-36V
Approx. 60W
as shown in the figure
Approx. 2.1kg
Front View:
⑤ Bracket connector
⑥ DMX IN
⑦ USB interface
⑧ Adjustable handle
Fig.1
LCD screen Display
DMX xxx
Dimmer xxx%
Color xxxxK
Under Vol.
Over Vol.
⑨ Flood/Spotknob
⑩ LCD
⑪ Barn door
Fig.2
Boot screen
Current DMX address, range: 001-512
Current dimmer value, range: 0%-100%
Current color temperature value,
range: 2700K-8000K
Under voltage
Over voltage
The fan running in normal mode, Dimmer
adjustable range 0%-100%.
or
Note: Dimmer≤50%, the fan icon still;
Dimmer＞50%, the fan icon rotating.
In Silent mode, the fan disabled, Dimmer
adjustable range 0%-50%.
The icon flashing, the light activating the
over-temperature protection function.
