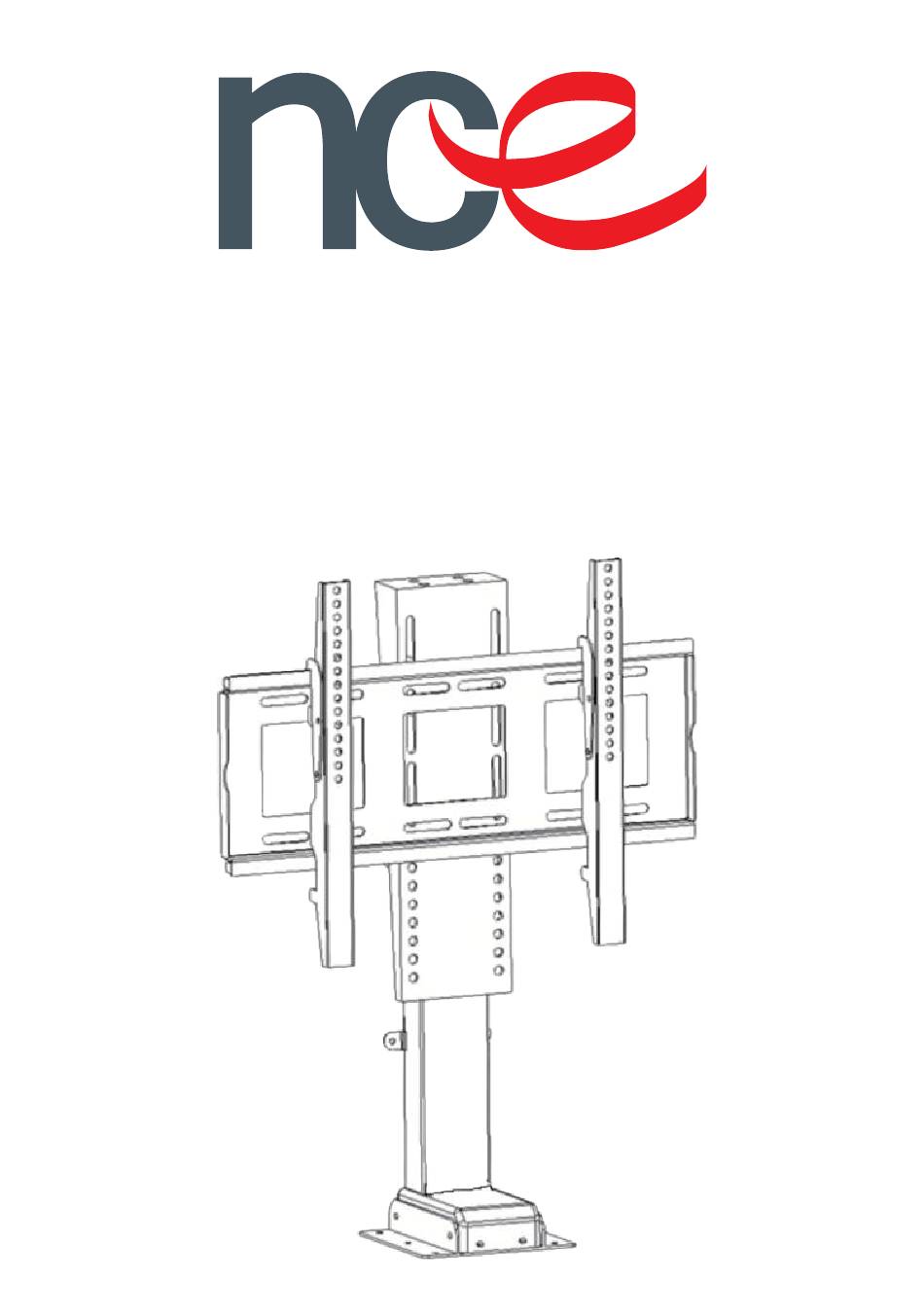

- Page 1 Model: NCE2018 nce.com.au TV LIFT KIT INSTALLATION INSTRUCTIONS & USER MANUAL READ THIS MANUAL BEFORE INSTALLATION...
- Page 3 Contents: M8x12 M6x16 A x 1 B x 1 C x 4 D x 4 E x 4 F x 1 G x 1 H x 1 I x 1 J x 1 K x 1 L x 1 M x 1 N x 1 SPARE SCREWS...
-
Page 4: Installation Steps
Installation Steps: 1. Assemble the TV Mounting Bracket (F) and the Connecting Bracket (G) using M8x12 (D) screws and M8 (E) Nuts as shown in the below image. NOTE: Connecting Bracket (G) has been Pre-assembled to Column (H) - Page 5 Installation Steps: 2. Fix the Lift Column (H) onto the Base Plate (I) using M6x16 (C) screws as shown in the below image.
- Page 6 Installation Steps: 3. Top Bracket (O) and the Connecting Bracket (G) have been Pre-assembled.
-
Page 7: Wiring Instructions
Wiring Instructions: 12Volt DC Connection. Connect the 12V-28V Converter (M) to the Control Box (K), connect the Wired Programable Remote Control (L) to the Control Box (K) and then connect the Lift Column (H) to the Control Box (K) Now connect the Wire from the 12V-28V Converter to Positive (+)12V and connect the Black Wire to Negative (-) 12V. - Page 8 Operating Instructions: Wired programable Remote Control. Step 1. When first connected, press and hold the down (˅) button until a beep sounds. This resets the TV Lift. Step 2. Find your lowest desired height by pressing and holding the UP (˄) button and then press the S button followed by the 1 button.
- Page 9 Operating Instructions: RF Remote Control. Slide out Battery cover on the back of the Remote Control and insert the supplied Battery Up Button - Press this to reach highest TV Lift height Stop Button - Press to stop the TV Lift at any height Down Button - Press to reach lowest TV Lift height CAUTION: DO NOT PRESS THE UP BUTTON IF YOU HAVE ANY OVERHEAD CUPBOARDS WITHOUT PRESSING THE STOP BUTTON BEFORE REACHING...
- Page 12 DISTRIBUTED BY NCE : 34-48 Stanley Drive, Somerton, Vic 3062 Tel: 1300 366 024 Email: sales@nce.com.au Web: nce.com.au...
