ROAM Wireless
Roam Wireless Manual
The iWorx ROAM Wireless is a wearable system designed to provide long-term recording and
unrestricted movement. The recording device easily attaches to the subject with standard electrodes.
The protective case doubles as a charging station. The system works with both Windows and MacOS
via standard USB interface. Data can be quickly analyzed with the included LabScribe analysis
software or exported directly for other processing. The ROAM Wireless devices allow for hours of
continuous recording with an untethered reach of 20 feet.

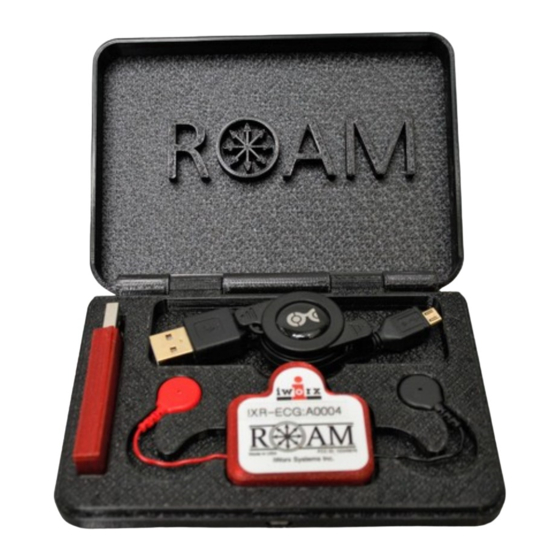

Equipment
The list below indicates all the products included. If you find any missing items please notify iWorx
Systems as soon as possible.
Roam Wireless Peripheral
Charger Box
USB Receiver Dongle
USB charging cable
Disposable Electrodes
Specifications
Device
Channels
IXR-ECG
1 ECG channel,
1 Respiration Channel
IXR-ECGA
1 ECG channel,
1 Respiration Channel,
3-axis Accerelrometer
IXR-B1
2 ECG/EMG channels
IXR-B1A
2 ECG/EMG channels
3-axis Accerelrometer
IXR-B2
2 ECG/EMG channels
IXR-B2A
2 ECG/EMG channels 3-axis Accerelrometer
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for iWorX Roam Wireless
- Page 1 The ROAM Wireless devices allow for hours of continuous recording with an untethered reach of 20 feet. Equipment The list below indicates all the products included. If you find any missing items please notify iWorx Systems as soon as possible. Roam Wireless Peripheral...
- Page 2 Device Set Up 1. Remove the ROAM Wireless device from the charging box. 2. Plug the USB receiver dongle into the USB port of the computer. ◦ The LED on the receiver will will blink green while it looks for the transmitter. Once the transmitter is found, the light will stay solid green to show that the connection has been made.
- Page 3 EMG signals. The electrodes are disposable and should be replaced after each use. iWorx offers three types of silver-silver chloride electrodes differing based on the width of the adhesive material and position of the electrode in it.
- Page 4 ROAM Wireless Proper skin preparation is important to get a good signal and avoid artifacts. • Before applying electrodes, make sure the skin surface is clean and dry: • Abrade the skin with an abrasive cream, such as NuPrep, to remove dead skin.
-
Page 5: Downloading Software
3. Complete the registration form making sure to enter information in all the required fields. 4. You will receive an email from iWorx when your registration is complete, which may take upto 24 hours. Until then use the temporary username and password 5. - Page 6 1) a PDF of the lab exercise setup for that experiment 2) a LabScribe recording window with the settings needed to run the experiment Learning to use Labscribe Various tutorial videos for using LabScribe are available on the iworx website, http s ://www.iworx.com/tutorials...
-
Page 7: Supplier's Declaration Of Conformity
Systems Inc. does not condone the use of its instruments for clinical medical applications. Instruments, components, and accessories provided by iWorx Systems Inc. are not intended for the diagnosis, cure, mitigation, treatment, or prevention of disease. -
Page 8: Intended Environment
No modification of this equipment is allowed. The unit contains no customer serviceable parts. If a problem occurs, contact your iWorx representative. Repair, if required, will be completed at iWorx Systems, Inc. The unit is protected by a 3-year warranty, and if the product is opened by any one other... - Page 9 ROAM Wireless Company Information: Headquarters iWorx Systems, Inc. 62 Littleworth Road Dover, NH 03820 Phone: (800) 234-1757 Fax: (603) 742-2455 Website: www.iWorx.com...
