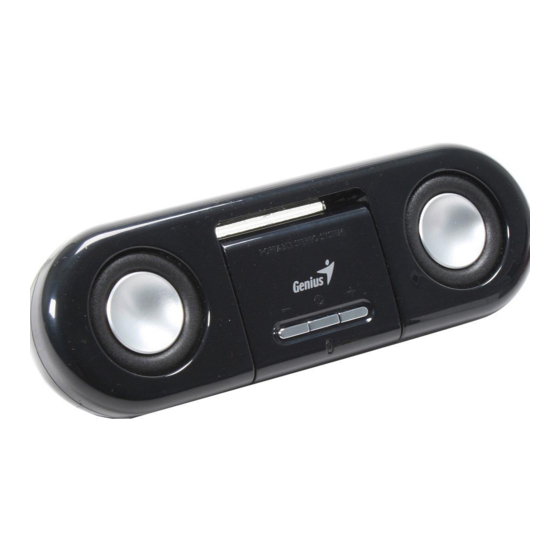

Summary of Contents for KYE Systems Corp. Genius SP-i200

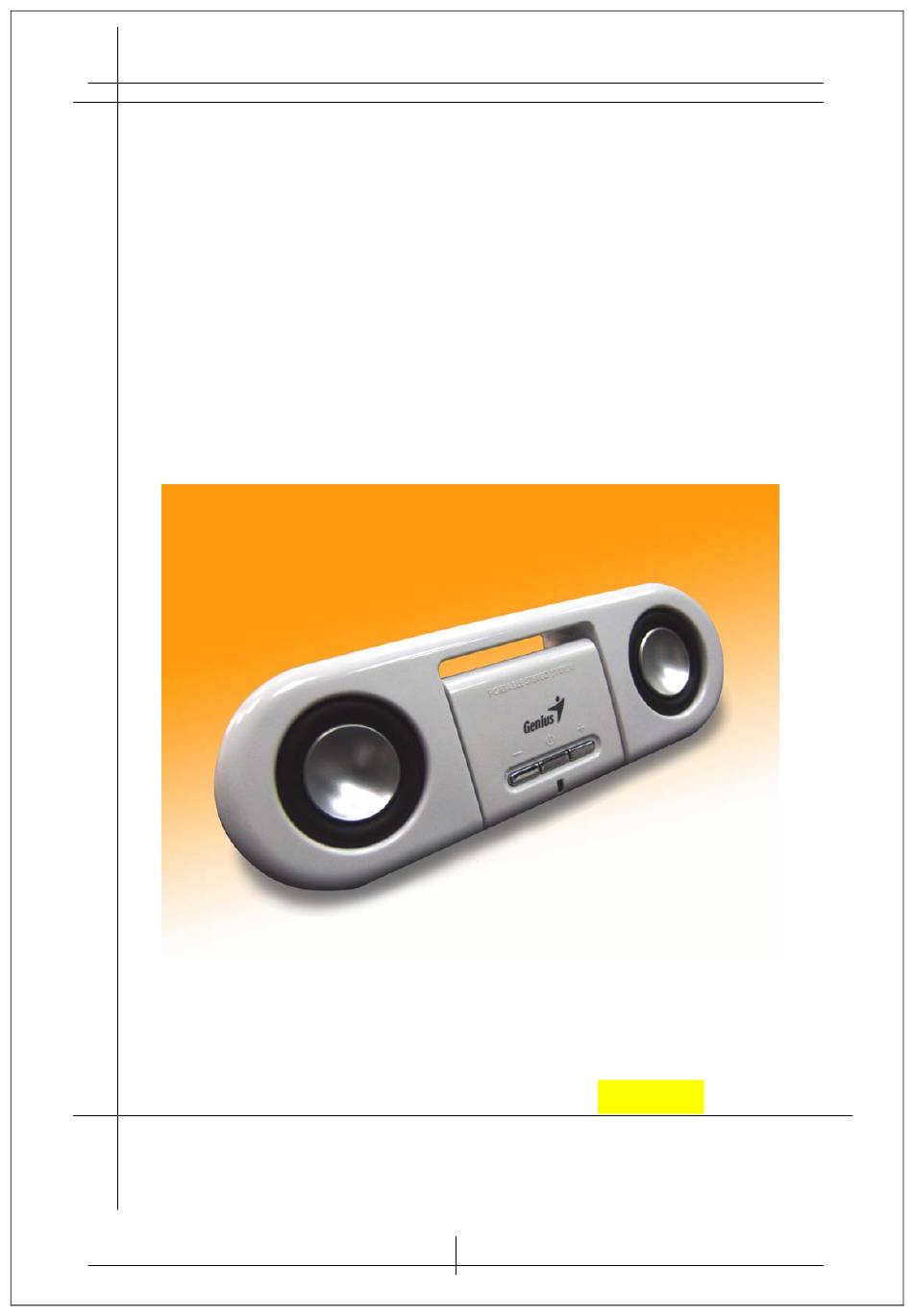

- Page 1 Service Guide SP-i200 SERVICE GUIDE KYE SYSTEMS CORP. SP-i200 Version : 1.0 Version : 1.0 Page 1 of 15...
-
Page 2: Revision History
Service Guide SP-i200 Revision History Version Date Change 04/11/2006 Version : 1.0 Page 2 of 15... -
Page 3: Table Of Contents
Service Guide SP-i200 Table of Contents Revision History …………………………………………………………………….2 Table of Contents ……………………………………………………………………3 Getting Started ………………………………………………………………………4 Conventions Used in this Guide ……………………………………….4 Safety Precautions ……………………………………………………..4 Chapter 1. How to Handle Defective Returns……………………………………..5 1.1 Overview …………………………………………………………..5 1.2 Problems …………………………………………………………...6 1.2.1 One or more channels no sound ………………..…7 1.2.2 Power LED (indicator) no light………………..…8 1.2.3 Volume no function...…………………….………..8 Chapter 2. -
Page 4: Getting Started
Service Guide SP-i200 Getting Started Conventions Used in this Guide Pay Special Attention: Instructions that are important to remember and may prevent mistakes . Caution: Information that, if not followed, may result in damage to the product. Safety Precautions The following precautions should be observed in handling the speaker Described in this guide : Place the speakers on a flat, level and stable surface. -
Page 5: Chapter 1. How To Handle Defective Returns
Service Guide SP-i200 Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective speakers from Customers Verifying problems Proceeding necessary tests Function NG Analyzing possible malfunction causes Deciding & proceeding the Function NG rectification methods Function OK Replace necessary defective parts Proceeding tests to Verify if the speaker is functioning normally... -
Page 6: Problems
Service Guide SP-i200 1.2 Problems Item Problem Description 1.2.1 One or more channels no sound 1.2.2 Power LED (indicator) no light 1.2.3 Volume no function Version : 1.0 Page 6 of 15... -
Page 7: One Or More Channels No Sound
Service Guide SP-i200 Attention Please follow the numbered sequence marked within parenthesis given in individual Flow chat, in that this is the best-recommended sequence to rectify the problems . 1.2.1 One or more channels no sound One or more channels no sound Problem Analyzer and Short circuit or PCB... -
Page 8: Power Led (Indicator) No Light
Service Guide SP-i200 1.2.2 Power LED (indicator) no light Power LED (indicator) no light Problem Analyzer and Power switch SW1 or Defective U3,D3, DC cord of adaptor LED defective Q1,Q2,Q3 disconnected or Identify the Causes defective Re-solder or replace defective component(s) Solutions 1.2.3 Volume no function Volume no function... -
Page 9: Chapter 2. Specifications
Service Guide SP-i200 Chapter 2. Specifications NO. Description Unit Specifications ≧ 3 Out Power at THD 10% 630 ± 50 Sensitivity Freq. Response (Ref:-3dB) Hz 20Hz ~ 20KHz dB ≧ 60 Separation dB ≧ 60 S/N ratio mV ≦ 10 Hum &... -
Page 10: Chapter 3. Block Diagram
Service Guide SP-i200 Chapter 3. Block Diagram Volume R.CH Speaker Power Increase Amplifier AUDIO IN Volume L.CH Speaker Decrease Power AC IN Conditioner Version : 1.0 Page 10 of 15... -
Page 11: Chapter 4. Exploded View
Service Guide SP-i200 Chapter 4. Exploded View Version : 1.0 Page 11 of 15... -
Page 12: Chapter 5. Part List
Service Guide SP-i200 Chapter 5. Part List DESCRIPTION UNIT Part No. 1 SP-i200/Body(Black) 10-101-01 2 SP-i200/Body(White) 10-101-02 3 Speaker 48mm 4ohm 3W E1049-18 4 PCBA, SP-i200 10-101-03 5 IC, HEF4013BT E1065-33 6 IC, AIC731-33PV E1065-30 7 IC, MIC 39102BM E1065-32 8 IC, 74HCU04PW E1065-31 9 IC, AD82550... -
Page 13: Chapter 6. Schematic Diagram
Service Guide SP-i200 Chapter 6. Schematic Diagram Version : 1.0 Page 13 of 15... -
Page 14: Pcb Service Printing
Service Guide SP-i200 PCB Service Printing Version : 1.0 Page 14 of 15... -
Page 15: Chapter 7. Important Notes
Service Guide SP-i200 Chapter 7. Important Notes 7.1 Packing Requirement for Sending the PCB Assembly by Post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
