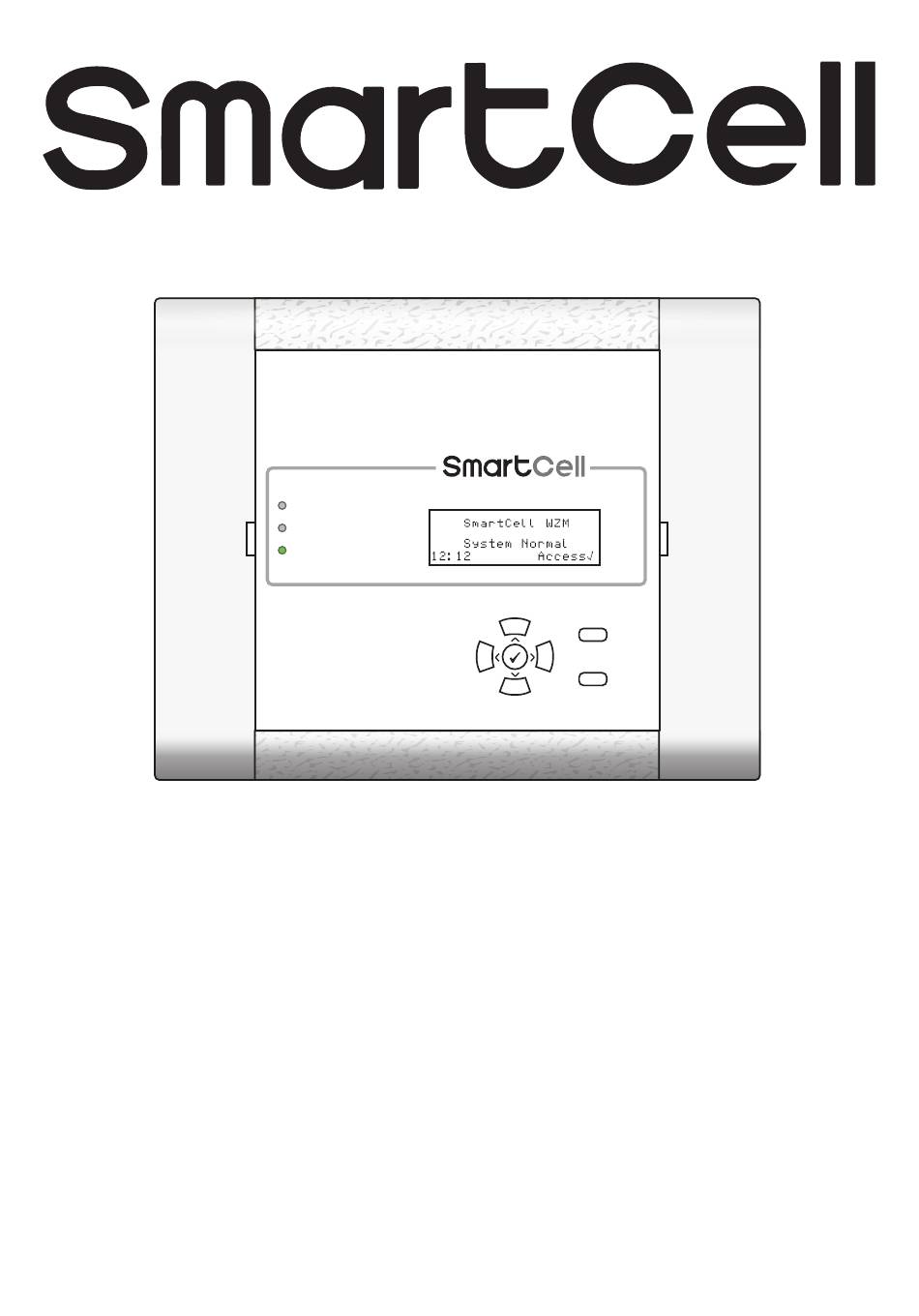

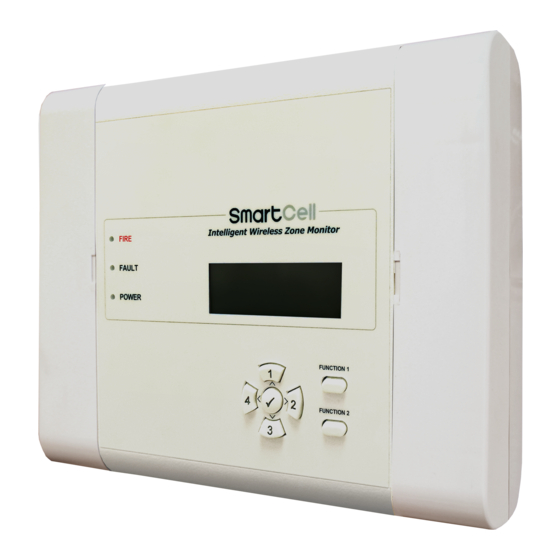

- Page 1 Intelligent Wireless Zone Monitor FIRE FAULT POWER FUNCTION 1 FUNCTION 2 Wireless Control Panel Installation Guide ©2021 EMS Ltd. All rights reserved. TSD127-0001-99 (Issue 1) 05/05/2021 AJM...
-
Page 2: Product Description
Introduction The Intelligent Wireless Zone Monitor (WZM) allows for 16 wireless devices to be added to Conventional or Addressable fire systems. Typical addressable fire system connection Up to 16x SmartCell wireless devices SmartCell WZM DUAL INPUT/OUTPUT DEVICE Example addressable panel... -
Page 3: Pre-Installation
Pre installation The installation must conform to applicable local installation codes and should only be installed by a fully trained competent person. The procedures outlined in this installation guide must be carefully followed. The WZM includes components which are susceptible to damage from Electro Static Discharge (ESD). - Page 4 Open the WZM Unclip the side panels. Loosen the two screws. Open the door. START SLIDE TO STATUS REMOVE FAULT MAINS / CHARGER FAIL BATTERY LOW BATTERY FAIL SOUNDER A ZONE L1 L1 L2 ALARM L1 L1 L2 EN54-4 UNIVERSAL PSU IN OUT IN OUT SC-60-1000...
- Page 6 Optional cabling, required only when the following SmartCell devices are added to the WZM; detectors, call points and I/O units (I/O units when set to ‘Off When Reset’) - see the SmartCell WZM Programming Guide (MK067) for more details on this feature.
- Page 7 Wiring to a conventional fire system SKIP THIS STEP IF CONNECTING TO AN ADDRESSABLE FIRE SYSTEM. The WZM must be connected to dedicated zone and sounder output. The maximum cable length to connected devices is 10 m. SOUNDER ZONE L1 L1 L2 L1 L1 L2 ALARM AERIAL A...
- Page 8 Connection wiring (230 VAC version only) SKIP IF INSTALLING A 24 VDC VARIANT. Power EN54-4 UNIVERSAL PSU A 220 to 240 VAC supply is required. Supply SC-60-1000 INPUT: 220-240VAC, 50Hz, 0.3A Unit OUTPUT: 5.0-8.5VDC, 0.8A MAX Use cable with a minimum cross section of 1.5 mm 0905 (PSU) 0359-CPR-00267...
- Page 9 Refit the door Refit the door. Ensure the ribbon cable and the doors hinges are securely fitted. Warning AERIAL A ATTENTION AERIAL B ELECTROSTATIC SENSITIVE DEVICE RESET START Observe battery polarity! TAMPER SLIDE TO STATUS REMOVE FAULT MAINS / CHARGER FAIL BATTERY LOW SOUNDER A ZONE...
- Page 10 Remove 3 V battery tab The 3 V battery tab located on the back of the door must now be removed. AERIAL A ATTENTION AERIAL B ELECTROSTATIC SENSITIVE DEVICE RESET START TAMPER SLIDE TO STATUS REMOVE FAULT MAINS / CHARGER FAIL BATTERY LOW SOUNDER A ZONE...
-
Page 11: Apply Power
Configuration The system can now be programmed. Refer to the WZM programming Guide (MK067) for details of compatible SmartCell devices and full programming information. NOTE: This product contains relays which when subjected to mechanical shock may cause momentary transitions from the currently active state. The transitions will be less than 1 second and any equipment connected must not respond to such momentary changes of the relay. -
Page 12: Specification
Specification Operating temperature -5 °C to +45 °C Storage temperature 0 °C to 30 °C Humidity 95 % non-condensing max. Location Type A: for indoor use IP rating IP30 Power requirements 230 VAC version: 220 to 240 VAC 24 VDC version: 19.2 to 28.8 VDC Min/max electrical ratings 230 VAC version: 220 to 240 VAC, 50 Hz, 0.3 A 24 VDC version: N/A... -
Page 13: Regulatory Information
Regulatory Information Manufacturer EMS Ltd. Technology House, Herne Bay, Kent, CT6 8JZ United Kingdom Year of manufacture See devices serial number label Certification 0905 Certification body CPR Certificate DOP 0359-CPR-00427 Approved to EN54-13:2005. Fire detection and fire alarm systems. Part 13: Compatibility assessment of system components. - Page 14 www.mysmartcell.co.uk ©2021 EMS Ltd. All rights reserved. Page 14 of 14 TSD127-0001-99 (Issue 1) 05/05/2021 AJM...
