Summary of Contents for Snap-On CTBTSR9050

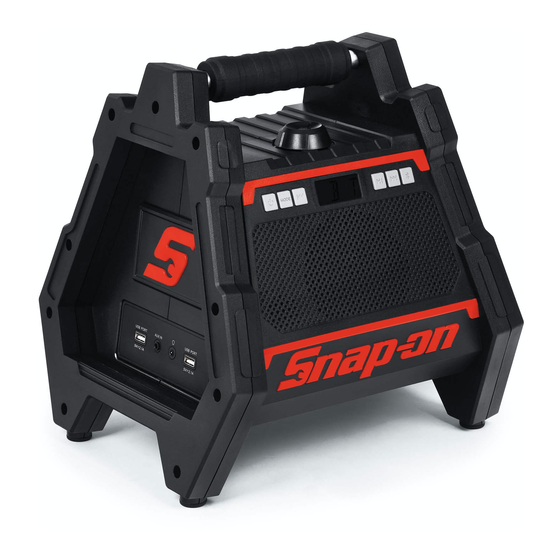

- Page 1 CTBTSR9050 18V Cordless Radio/BlueTooth Speaker E508280 ORIGINAL INSTRUCTIONS TRADUCTIONDES INSTRUCTIONS ORIGINALES TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES READ AND SAVE THESE INSTRUCTIONS LIRE ET SAUVEGARDER CES INSTRUCTIONS LEA Y CONSERVE ESTAS INSTRUCCIONES ZCTBTSR9050 (04/21)
- Page 2 • Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is Snap-on Tools Company provides safety messages to earthed or grounded. cover reasonable situations that may be encountered •...
- Page 3 • Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury or fire. • When battery pack is not in use, keep it away from other Power tools generate noise. metal objects, like paper clips, coins, keys, nails, Wear hearing protection, user and bystanders.
- Page 4 • Do not attempt to destroy or disassemble the battery Snap-on’s involvement in this program is part of its pack or remove any of its components. commitment to protecting our environment and •...
-
Page 5: Important Safety Instructions
INSTRUCTIONS. 1. This manual contains important safety and operating Risk of electric shock and fire. instructions for the Snap-on CTC720 Rev. B, CTC720 • Do not insert battery pack into charger if case is cracked Rev. C, CTC131,CTC123 Charger. or damaged. Electric shock and fire can cause injury. -
Page 6: Battery Charger Specifications
17. For the location of the nearest Snap-on repair center, Life please call Snap-on customer service at 1-877-762- CTB185/CTB8185 ......1000 cycles 7664. Note: 1 cycle=1 charge and 1 discharge 18. To reduce risk of battery explosion, follow these Capacity instructions and those marked on the battery. -
Page 7: Battery Charging
Battery Charging 1. Insert the power cord plug into the socket of the charger. 2. Plug the other end of cord plug into power source outlet. 3. Insert battery pack in the charger. Position the battery pack so that the battery sits flush with the top of the charger. -
Page 8: Battery Pack
Count number of flashes to figure out cycle count. Example 1: L1 - Flashes one (1) time L2 - Flashes three (3) times L3 - Flashes four (4) times L4 - Solid Light 100% Charge L4 - Flashes five (5) times It means battery was charged 1, 345 times Example 2:... -
Page 9: Maintenance
• Maintain tools. Keep tools dry, clean and free of oil and CANADIAN - UNITED STATES grease for better and safer performance. UNDERWRITERS LABORATORY • For the location of the nearest Snap-on repair center, call Snap-on customer service at 1-877-762-7664. • When charging or discharging a lithium-ion battery over FEDERAL COMMUNICATIONS... -
Page 10: Battery Charger Troubleshooting
Battery Charger Troubleshooting PROBLEM POSSIBLE CAUSES REASON/SOLUTION Replace battery with a fully Undervoltage charged battery. Let tool sit 5-10 minutes then Tool overtemperature resume work Let tool sit 5-10 minutes then Overcurrent resume work Motor wire break Return to dealer for repair ... -
Page 11: Functional Description
We, Snap-on Tools Company, cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure determined in an individual risk assessment in awork place situation over which we have no control. -
Page 12: Fcc Regulations
8. The BT indicator light on the unit will turn solid 2. Remove all protective packaging you are now connected 3. Install Snap-on 18V battery pack Note: If asked for a pass code, enter “0000” Battery Pack Installation Using the Headphone Jack: and Removal 1. -
Page 13: Adjusting The Volume
To exit “standby mode” press the Power ON/OFF(A) on the speaker Only two CTBTSR9050 speakers can be chained together Using the USB Charging 1. Make sure both CTBTSR9050 are powered on and in Bluetooth pairing mode Ports: 2. Connect your Bluetooth device to one of the speakers and wait for an audible confirmation. -
Page 14: Incoming Calls
Incoming Calls: This speaker is equipped with an incoming call feature, which pauses audio once a call is accepted This feature activates automatically and play will resume when call is ended ZCTBTSR9050 (02/21) - Page 15 Cordless Radio/Bluetooth Speaker - Parts List and drawing Key Number Part name Key Number Part name CTBTS9050-1 Replacement housing feet Loud speaker L. Power Board Front shell Decorative strip Snap on logo Battery compartment Decorative strip Layering Button Back shell Decorative strip B AC plug Volume knob...
- Page 16 18V Cordless Radio / Blue Tooth Speaker Symptom Cause Solution No Power AC plug not plugged into wall Plug into wall outlet properly outlet Charge the battery 18V Battery is not charged No battery connected to unit Insert charged battery No Sound Volume set too low Adjust volume to desired level...
-
Page 17: Warranty/Service And Repair
Snap-on Tools, Kenosha, Wisconsin 53141-1410 Technical Support and Service US: 877-762-7664 Canada: 866-824-0524 Made in China. Printed in China. Snap-on and Wrench “S” are trademarks of Snap-on Incorporated. © Snap-on Incorporated 2021. All Rights Reserved. Patents: See https://patents.snapon.com Snap-on 2801 80th St., Kenosha, WI 53143 www.snapon.com... - Page 18 FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
