- Page 1 Certification Exhibit FCC ID: R4N-AW900MR IC: 5303A-AW900MR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-2161 Manufacturer: AvaLAN Wireless Systems Model: AW900mTR User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587...

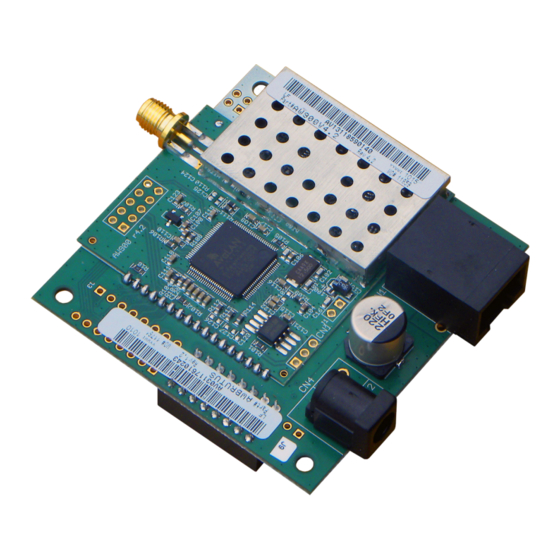

- Page 2 AW900mTR-EVAL USER’S MANUAL 900 MHz Wireless Ethernet Module Evaluation Kit AvaLAN Industrial-grade, long-range wireless Ethernet systems...
-
Page 3: Limited Warranty
This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product. -
Page 4: Operational Summary
Ethernet network with up to 16 subscriber units per access point. The configuration may include any combination of AW900mTR, AW900xTR, AW900iTR and AW900xTP radios. (Please note that older AvaLAN 900 MHz radios can exist on the same LAN but cannot be used to form wireless links with the AW900mTR because link encryp- tion protocols have changed.) -
Page 5: Evaluation Kit Contents
• AW-POE Power Over Ethernet Injectors • AW-12VPS 12 Volt Power Supplies Additional quantities of any of these components may be purchased from AvaLAN Wireless or our distributors. To power up a radio module, connect the antenna via the pigtail cable provided. -
Page 6: Physical Dimensions
User’s Manual AW900mTR Physical Dimensions Power: 5-48 VDC Ethernet: 10/100T Power: 9-48 VDC Mounting Holes 23 mm 66 mm 70 mm Antenna: Reverse polarity Mounting Holes 900 MHz Channels Channel Center Frequency Auto Mode 903.12500 MHz 905.20833 MHz 907.29167 MHz 909.37500 MHz 911.45833 MHz 913.54167 MHz... - Page 7 2. Download the AvaLAN IP Discovery Utility from our website and extract ipfinder.exe from the zip archive, placing it on your desktop or in a convenient folder.
- Page 8 User’s Manual AW900mTR 5. Make note of the chosen IP address and password, then click “Go to Device Web Page.” This will cause your default web browser to launch with the device IP address in the browser address bar. Or you may launch the browser on your own and enter the web page address manually: http://[the IP address you just set].
- Page 9 AW900mTR User’s Manual Despite the warning, you will need to click the “Advanced Admin” button in order to set the device type, ID and encryption key. You should then see a page similar to this: 8. On the Advanced Admin page, set the parameters as follows: •...
- Page 10 User’s Manual AW900mTR LED and Switch Behavior Reset Switch: Press momentarily for soft reset of processor. Hold for LEDs 10 seconds to reset module to factory defaults. DIP Switches CH16 CH32 LINK QUALITY Function Color Unit has power and has successfully booted Green Radio reception is occuring Green...
- Page 11 AW900mTR User’s Manual “Easy Key” Configuration In most cases, the browser interface is a better choice for configuring the modules. But they also can be configured as a point-to-point bridge or a point-to-multipoint group using the DIP switches. When this method is used, the module that will oper- ate as the access point provides a unique network ID calculated from its MAC ad- dress and a unique random encryption key programmed into it during manufacture.
-
Page 12: Technical Specifications
User’s Manual AW900mTR To add a new SU to the AP , disconnect the AP from the network and power off. Connect an Ethernet cable between the SU and AP . Power up the SU FIRST and then the AP . The SU will receive the key. Disconnect the Ethernet cable and cycle power on the SU to cause the new keys to take effect. -
Page 13: Fcc Certification
Fixed Base Station and Mobile Applications AvaLAN Modules are pre-FCC approved for use in fixed base station and mobile applications. When the antenna is mounted at least 23 cm (9.06”) from nearby persons, the application is considered a mobile application. -
Page 14: Ic (Industry Canada) Certification
User’s Manual AW900mTR IC (Industry Canada) Certification Labeling requirements for Industry Canada are similar to those of the FCC. A clearly visible label on the outside of the final product enclosure must display the following text: Contains Model AW900MR Radio, IC: 5303A-AW900MR Integrator is responsible for its product to comply with IC ICES-003 &...
