Issue 2017-03-30
Commissioning
GLT-D005-TFA4
Application

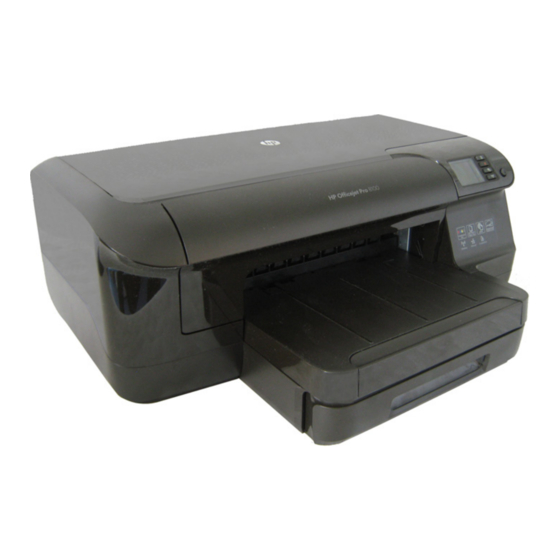

You can use the printer described in this document to
print documents (for example, plant images and trend
curves) from the Neutrino BMS. You can also use the
printer for consecutive log file printing.
The printer can be set up as a network printer or
connected locally via USB.
Content
Important Information Regarding Product Safety ..................................................................................................2
Commissioning ......................................................................................................................................................3
Requirements ......................................................................................................................................................3
Setting up the printer as a network printer...........................................................................................................3
Configuration of the IP Address...........................................................................................................................3
Retrieving Configuration Data..............................................................................................................................4
Configuring the printer on the Neutrino BMS.......................................................................................................5
Setting Up the Printer as a Local Printer .............................................................................................................6
Setting Up the Printer for Consecutive Log File Printing .....................................................................................7
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -
A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 4.65-30.013-11-EN
GLT-D005-TFA4
Page
A
Advertisement
Table of Contents
Summary of Contents for Kieback&Peter GLT-D005-TFA4
- Page 1 Issue 2017-03-30 Datasheet 4.65-30.013-11-EN GLT-D005-TFA4 Commissioning GLT-D005-TFA4 Application You can use the printer described in this document to print documents (for example, plant images and trend curves) from the Neutrino BMS. You can also use the printer for consecutive log file printing.
- Page 2 Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "GLT-D005-TFA4". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer.
- Page 3 Issue 2017-03-30 Datasheet 4.65-30.013-11-EN GLT-D005-TFA4 Commissioning Commissioning Requirements The printer can be used as a network printer via Ethernet (10, 100 Mbit/s) and TCP/IP or connected via USB. You must meet the following requirements in order to commission the printer: ■...
- Page 4 Datasheet 4.65-30.013-11-EN Issue 2017-03-30 GLT-D005-TFA4 Commissioning Manual configuration In addition to the automatic IP address configuration, you can also assign the printer IP address manually. To do so, you must know the printer IP address. Since the printer does not have a preset IP address and only the internal IP address “0.0.0.0” is set when it is in its initial state, an IP address must be assigned via DHCP beforehand and read from the printout of the network configuration page.
- Page 5 Issue 2017-03-30 Datasheet 4.65-30.013-11-EN GLT-D005-TFA4 Commissioning Configuring the printer on the Neutrino BMS requirement: Neutrino BMS software version 9.13 or later You must apply the following settings in the BMS menu "Tools" > "BMS configuration": ► Open the BMS function group and select “Printer” in the tree.
- Page 6 Datasheet 4.65-30.013-11-EN Issue 2017-03-30 GLT-D005-TFA4 Commissioning Setting Up the Printer as a Local Printer Prerequisite: Neutrino BMS software version 9.13 or higher and the printer is connected via USB cable To print documents from the Neutrino BMS, you must configure the following settings in the “Tools >...
- Page 7 Issue 2017-03-30 Datasheet 4.65-30.013-11-EN GLT-D005-TFA4 Commissioning Setting Up the Printer for Consecutive Log File Printing With the BMS program MALFUNCTION MESSAGE DISPLAY, malfunctions occurring in building services are displayed as malfunction and system error messages. You can print the event logs out if the printer is configured for consecutive log file printing.
- Page 8 Datasheet 4.65-30.013-11-EN Issue 2017-03-30 GLT-D005-TFA4 Commissioning Page 8 / 8...
