Eastern Times Technology DS-2038 Applications Manual

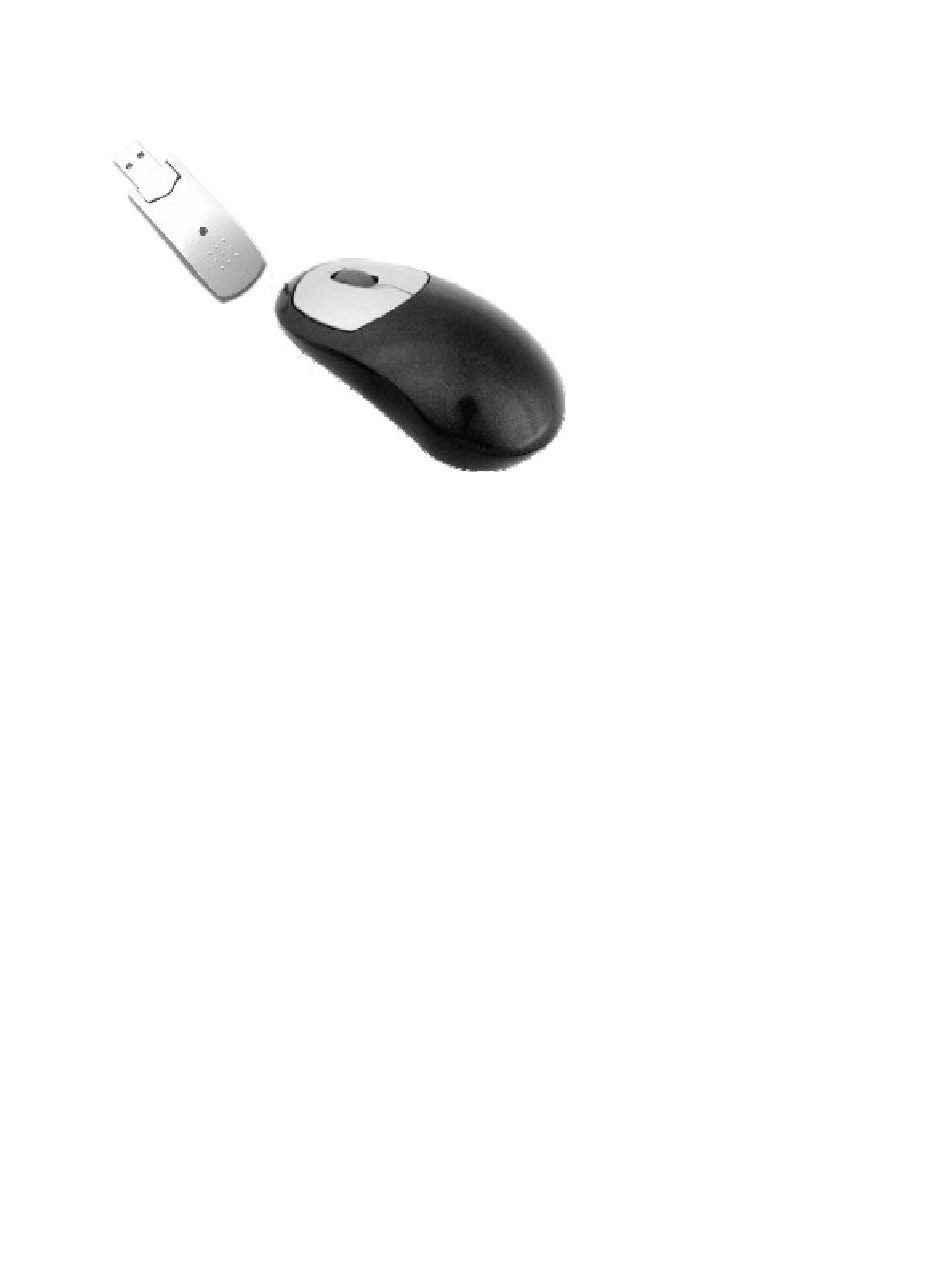

Optical Wireless Mouse
Application Manual
Item Number: DS-2038 Wireless & Optical Mouse

Features:

This product is adopting the very advanced RF and Optical technology. It lets you enjoy the freedom
of wireless and enjoyment of speed. This product is developed with the IC from Agilent ADNS-2030,
which is low-voltage, and low power deplete with optical-orientation. It has the highest resolution at
800DPI that allow you to have a fascinating speed and accuracy. No readjustment is necessary, thus. It
prolongs the working life.
This product uses 2 units of AA batteries and the current is below 30 mA (white desktop).
The IC has an environment adjustment function in the circuit integration; It can automatically adjust
different kind of desktop surface or color. (The power-usage will be double while desktop is black)

Compatibility:

Can be compatible with IBM PC and all kinds of branded notebook.
Can be used under DOS, Win95/98/2000/Me/XP and Windows NT(except for USB).

Features of Emitter:

27MHz RF Emitting.
+3VDC (2 pcs of AA batteries)
Uni-Channel 256 ID Code, setting instruction: please refer to the No.3 of Assembly Instructions.

Power Saving:

The circuit is embedded with an automatic sleeping power-saving function. If the mouse is not moved
or touched for 4 minutes, the brightness from LED will be lowered and after another 30 seconds, all other
current except for waking-up feature will be off automatically. After 8 minutes more, it will enter into full-
sleeping state and the power-usage is almost near zero.

Voltage-Protection:

When the current voltage is decreased to a minimum level, the mouse will be powered off
automatically and the new batteries must be replaced.
