Summary of Contents for Costway HW65716

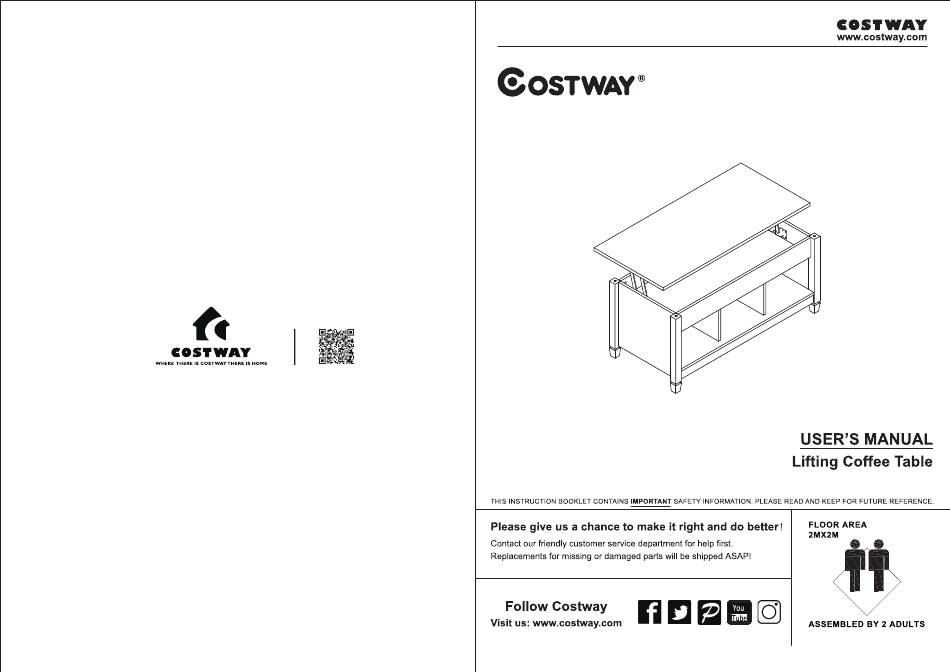

- Page 1 HW65716...
- Page 3 Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (2) Install 4 pcs dowels (A) and 4 pcs cam pins (B) to End panel (3) Install 4 pcs dowels (A) to 2 Solid Panels (8) Install 10 pcs cam pins (B) to 2 Legs (9) Part A x 4 Part B x 4...
- Page 4 Stick 40 pcs Cam covers (P) on Cam locks (C) and stick 6 pcs (M1) to the corresponding places shown in the figure. Attach 2 Brace panels (5) to Middle panel (6) and lock with Part M1 x 6 Install lever (12) to End panel (3) with 8 pcs Screws (E4) 4 pcs Cam locks (C) Part P x 40 Part E4 x 8...
