HECKLER H720 Manual

Av cart for google meet series one room kits, supports displays with a vesa 400 horizontal mounting pattern, and up to 300 pounds of total display weight, recommended for use with 50-inch to 75-inch displays
Hide thumbs

Advertisement

Quick Links

Download this manual

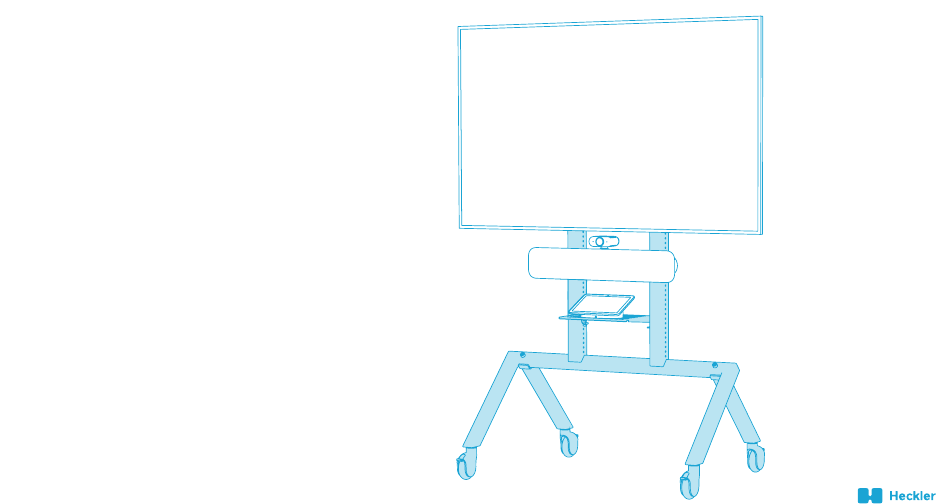

H720 - Heckler AV Cart for
Google Meet Series One Room Kits
Supports displays with a VESA 400 (horizontal) mounting pattern,
and up to 300 pounds of total display weight. Recommended for
use with 50-inch to 75-inch displays.
Designed & made in Arizona
Patented

Advertisement

loading
Need help?

Need help?

Do you have a question about the H720 and is the answer not in the manual?

Questions and answers

Summary of Contents for HECKLER H720

  • Page 1 H720 - Heckler AV Cart for Google Meet Series One Room Kits Supports displays with a VESA 400 (horizontal) mounting pattern, and up to 300 pounds of total display weight. Recommended for use with 50-inch to 75-inch displays. Designed & made in Arizona...
  • Page 2 Do not exceed 300 pounds of total display weight. Whenever rolling the cart with a large display installed, two people should guide the cart to prevent wall and doorframe collisions, and tripping on sidewalk expansion joints. If you have any questions, please contact Heckler. service@hecklerdesign.com 844-432-5930...

  • Page 3: Quick Start

    QUICK START Configure Meet Compute System In the box Set up the Base Cart Install the display and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Touch Controller Organize the cables...
  • Page 4 Heckler AV Cart Base In the box Front Base Rear Leg Set up the Base Cart Display Rail Caster Install the display Socket Head Screw, 1/2"-13, 2.75" Long Assembly Key, Hex, 3/8” Set Screw, M8, 70mm Long Configure Meet Wingnut, M8...
  • Page 5 H708 Device Panel XL In the box Device Panel XL for Heckler AV Cart Camera Adapter Set up the Base Cart Cart-mounting screws Cart-mounting thumb screws Install the display Device-mounting thumb screws Device-mounting thumb nuts Camera-mounting screw Configure Meet Meet compute-mounting screws...
  • Page 6 H709 Control Shelf In the box Control Shelf for Heckler AV Cart Cart-mounting wingnuts Set up the Base Cart Cart-mounting screws Cart-mounting assembly key Install the display Velcro for strapping devices. 12 inches Configure Meet Compute System and Smart Audio Bar...
  • Page 7 H707 Soundbar Mount In the box Soundbar Mounting Bracket Set up the Base Cart Hex Key, 5mm Screw, M6, 10mm Wingnut, M6 Install the display M4 Soundbar-mounting Hardware Configure Meet Set Screw, M4, 20mm Compute System and Wingnut, M4 Smart Audio Bar M5 Soundbar-mounting Hardware Install Meet Compute Set Screw, M5, 20mm...
  • Page 8 STEP 1 Remove the wheels from all four casters. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display...
  • Page 9 STEP 2 Install all casters. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller Organize the cables...
  • Page 10 STEP 3 Reinstall caster wheels. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller Organize the cables...
  • Page 11 STEP 4 Engage all caster brakes. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller...
  • Page 12 STEP 5 Fasten Rear Legs to Front Base. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller...
  • Page 13 STEP 6 Fasten Display Rails to Front Base. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller...
  • Page 14 STEP 7 Determine whether your display has M8 or M6 mounting holes. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display...
  • Page 15 STEP 8 Prepare the display-mounting hardware. In the box Insert the M6 or M8 set screws through the rubber spacers. Position the set screw relative to the spacer as shown. Set up the Base Cart Install the display Important Notes: The set screws are a tight fit.
  • Page 16 STEP 9 Fasten the mounting hardware to the display. In the box Set up the Base Cart Important notes: Fasten the set screw into Install the display the display at the depth recommended by the display manufacturer. Do Configure Meet not overtighten these Compute System and mounting screws.
  • Page 17 If so, use the display manufacturer's mounting spacers rather than the spacers Set up the Base Cart included with Heckler AV Cart Prime. Install the display Configure Meet Compute System and Smart Audio Bar...
  • Page 18 STEP 10 Ensure all caster brakes are engaged. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display Install Touch Controller...
  • Page 19 STEP 11 Install the display to In the box Display Rails by fastening wingnuts. Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display...
  • Page 20 STEP 12 Pre-configure Meet Compute System and wiring Important Note: In the box to Device Panel XL. Keep about 2.5 inches of clearance for mounting Smart Audio Bar above the display. Set up the Base Cart 2.5 inches Install the display Configure Meet Compute System and Smart Audio Bar...
  • Page 21 Pre-configure Meet Compute System to Device Panel XL using VESA mounting screws and thumbnuts supplied. In the box Set up the Base Cart From H708 From H708 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar...
  • Page 22 Pre-configure devices and wiring to Device Panel XL using Velcro supplied. In the box Set up the Base Cart From H708 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar...
  • Page 23 STEP 13 Fasten set screws to the Audio Bar. In the box Set up the Base Cart From H707 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display...
  • Page 24 STEP 14 Determine Smart Audio Bar position. In the box If mounting Smart Audio Bar below the display, If mounting Smart Audio Bar above the display, go to Page 22. go to Page 26. Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar...
  • Page 25 STEP 15 Install Device Panel XL to Display Rails. In the box Set up the Base Cart From H708 From H708 From H708 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display...
  • Page 26 Remove the top two thumbscrews In the box and rotate the Device Panel XL to access devices and wires inside. Set up the Base Cart Install the display From H708 Warning: Configure Meet Do not leave the cart unattended Compute System and while the Device Panel is open to ensure stability and to avoid Smart Audio Bar...
  • Page 27 STEP 16 Install Soundbar Mount to Display Rails. In the box Set up the Base Cart From H707 From H707 From H707 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar...
  • Page 28 STEP 17 (Go to Page 30 after this step) Install Smart Audio Bar to Soundbar Mount In the box by fastening wingnuts. Set up the Base Cart From H707 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar...
  • Page 29 STEP 15 In the box Install Soundbar Mount to Device Panel XL Set up the Base Cart From H707 From H707 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar...
  • Page 30 STEP 16 Fasten Audio Bar to Soundbar Mount as shown. In the box Set up the Base Cart From H707 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar above the display...
  • Page 31 STEP 17 Install Device Panel XL to Display Rails. In the box Set up the Base Cart From H708 From H708 From H708 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display...
  • Page 32 Remove the top two thumbscrews In the box and rotate the Device Panel XL to access devices and wires inside. Set up the Base Cart Install the display From H708 Warning: Configure Meet Do not leave the cart unattended Compute System and while the Device Panel is open to ensure stability and to avoid Smart Audio Bar...
  • Page 33 STEP 18 Install Control Shelf to Display Rails and In the box place the Touch Controller. Set up the Base Cart From H709 From H709 From H709 Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar...
  • Page 34 STEP 19 Route power and data cables inside each Display Rail as shown. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar...
  • Page 35 STEP 20 Route power and data cables along the Rear Leg as shown. In the box Set up the Base Cart Install the display Configure Meet Compute System and Smart Audio Bar Install Meet Compute System and Smart Audio Bar Install Smart Audio Bar below the display Install Smart Audio Bar...
