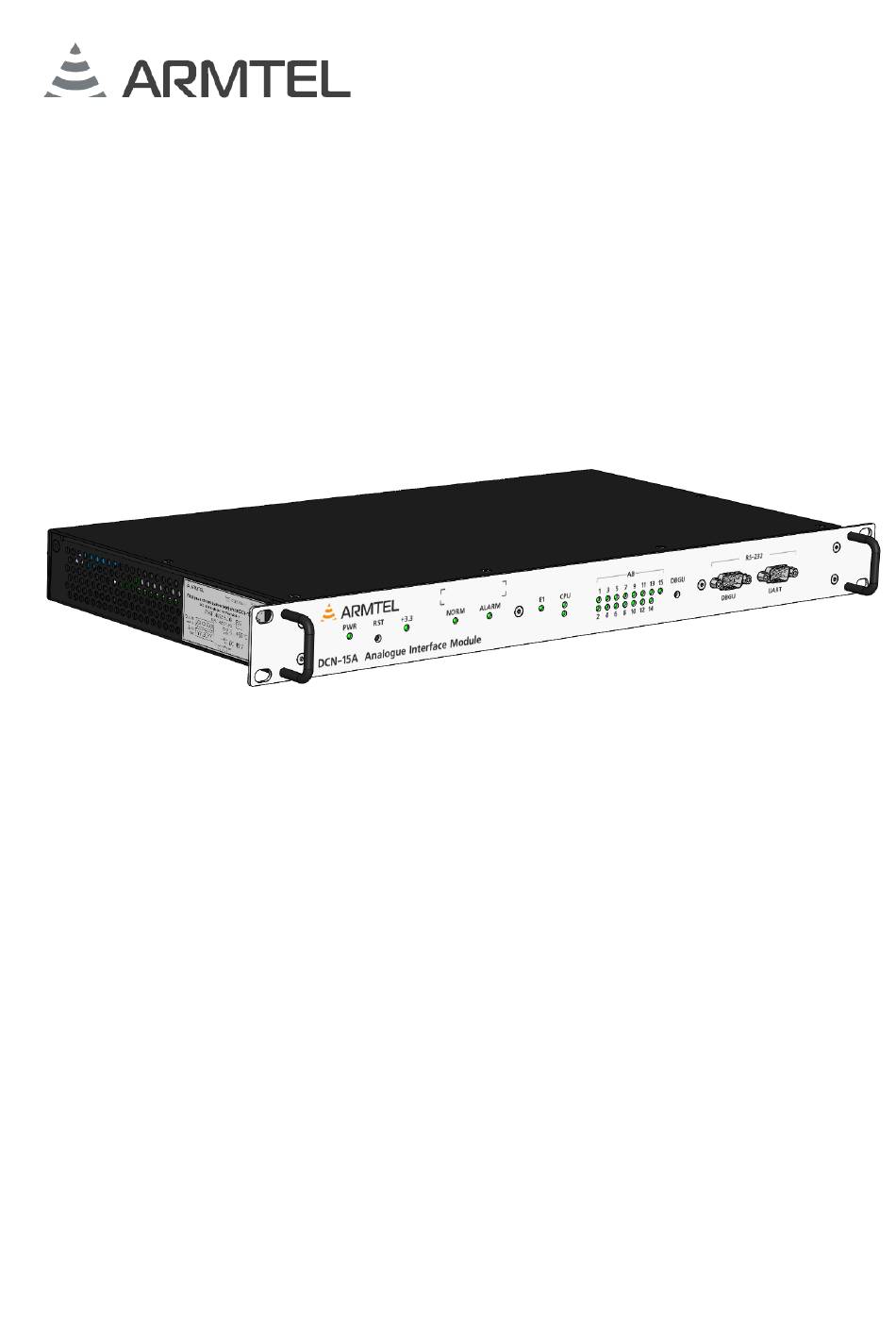

- Page 1 DCN-15А Analogue Interface Module RMLT.465275.001UM User Manual Version 13 26.30.11.110 2021...
- Page 2 © Armtel info@armtel.com...
-
Page 3: Introduction
RMLT.465275.001 manufactured by Armtel LLC, and is intended to familiarize the User with the device and the procedure for its operation at the installation site. The DCN-15A module is a compact 15-channel converter of the E1 digital interface into analog low-frequency communication lines and discrete control lines, for providing communication with analog communication and signaling equipment as part of a distrib- uted operational and technological communication system and DCN public addressing. -
Page 4: Safety Provisions
During installation and operation of DCN-15A, observe the safety measures specified by local regulations on electrical safety. When using DCN-15A for its intended purpose, it is necessary to comply with the safety requirements determined by the "Labor Protection Rules for the Operation of Elec- trical Installations"... -
Page 5: Table Of Contents
DCN-15A ANALOGUE INTERFACE MODULE User Manual CONTENTS INTRODUCTION ............................1 SAFETY PROVISIONS ..........................2 1 DEVICE DESCRIPTION AND OPERATION ..................4 Purpose of the product ......................4 Specifications ..........................6 Scope of supply ..........................8 Design .............................. 9 Labeling ............................12 Package ............................ -
Page 6: Device Description And Operation
Note - The manufacturer reserves the right to change the appearance of the product, which does not affect the installation dimensions and operation of the product. DCN-15A can be used in public address systems in metallurgical, chemical, oil refin- ing, nuclear (including nuclear power plants), oil and gas industries and similar ones in terms of application, as well as in transport. - Page 7 - from 0.3 to 6.8 kHz. DCN-15A is connected to the central exchange of DCN system via the E1 line, for voice data and signaling transfer between the central exchange and the subscriber equip- ment.
-
Page 8: Specifications
(connection of addi- tional call stations, amplifiers, etc.). The central exchange of DCN system, connected to DCN-15A via E1 line, controls the operation of DCN-15A module and subscriber units or discrete lines connected to it. - Page 9 To connect analog and digital lines and the E1 line to DCN-15A, DCN-15A is equipped with 1 to 4 connection cables. The appearance of DCN-15A connection cable is illustrated in appendix A.
-
Page 10: Scope Of Supply
DCN-15A ANALOGUE INTERFACE MODULE User Manual 1.3 Scope of supply The scope of supply is given in Table 2. Table 2 – Scope of supply Identification Name Quantity, Note RMLT.465275.001* DCN-15А Analogue interface module Additional information RMLT.469413.001 DCN-15А Connection cable... -
Page 11: Design

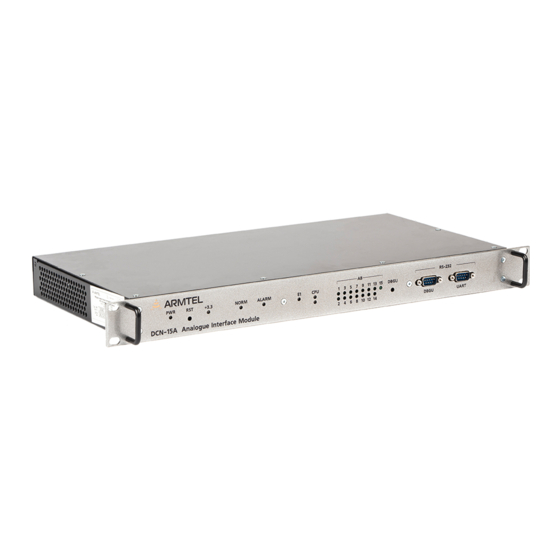

Figure 2 – External appearance and dimensions of DCN-15А DCN-15А is manufactured in four versions depending on number of connection ca- bles. Hardware versions are given in Table 3. Table 3 – Versions of DCN-15A Identification Number of connection cables RMLT.465275.001... - Page 12 DCN-15A ANALOGUE INTERFACE MODULE User Manual Figure 3 shows front panel of DCN-15A with connection sockets and LED indicators. Figure 3 – Front panel of DCN-15А The front panel of DCN-15А includes: − RST – reset key; − PWR – indicator of primary power supply source 48 V (fuse);...
- Page 13 − «Line AB 1 - 8» – 36-contact sockets for connection of analogue lines 1…8 of DCN-15A subscribers; − «Line AB 9 – 15 + Е1» – 36-contact sockets for connection of analogue lines 9…15 of DCN-15A subscribers and Е1 line for connection to DCN system central exchange. armtel.com page 11/28 info@armtel.com...
-
Page 14: Labeling
DCN-15A ANALOGUE INTERFACE MODULE User Manual 1.5 Labeling On the left side of the DCN-15А housing is placed bilingual nameplate. The nameplate contains the following information: name, trademark and reference information of the manufacturer; − product name and description; −... -
Page 15: Package
DCN-15A ANALOGUE INTERFACE MODULE User Manual 1.6 Package DCN-15А with the documents, which come with the supply package, is packed in consumer package (cardboard box). A label in Russian language and English language is glued onto the consumer pack- age, said label containing the following inscriptions and symbols: −... -
Page 16: Intended Use
− Remove the DCN-15A and the connection cables from the shipping container. − Remove the DCN-15A and the connection cables from the individual container. − Check the completeness of the DCN-15A in accordance with the product pass- port. − Visual inspection of unit for damages (cracks, dents, etc.). -
Page 17: Safety Precautions
UTP cable, which is connected from one side to terminals 29 ... 32 of XS8 terminal block on DCN-15A connection cable No. 2, and from the other side can be crimped with RJ-45 plug for connection to RJ-45 socket located on DCN-2 central exchange. -
Page 18: Operation
Details of the duties of officials when using the DCN-15A are given in the document RMTL.465275.002UM "DCN Communication System. User Manual. Part 1”. 2.5.2 Turning the product ON and OFF The product is switched ON by connecting the power supply source to DCN-15A power socket. -
Page 19: Monitoring Of The Product Operation In General
DCN-15A ANALOGUE INTERFACE MODULE User Manual 2.5.3 Monitoring of the product operation in general Possible states of DCN-15A indicators depending of its operation modes are given in Table 4. Table 4 - Possible states of DCN-15A indicators depending of its operation modes... -
Page 20: Trouble Shooting
Possible problems and their solutions are given in Table 5. Table 5 - Possible problems and their solutions Problem Possible causes Solutions When DCN-15A is turned on, the DCN-15A is not connected to the Connect it to the power indicators are OFF power supply source... -
Page 21: Maintenance
− Checking the product mounting in the cabinet (rack) and fixing of outside sockets. − Visual inspection of cables to DCN-15A module (they should not be squeezed and have damage to the outer shell). − Checking reliability of the cables connection – cables should not be tensioned. -
Page 22: Checking The Functionality Of The Product
User Manual 3.4 Checking the functionality of the product The operability of the DCN-15A is checked automatically when it is turned on and the LED indication is checked in accordance with the instructions given in Tables 4 and 5. If necessary, it is allowed to change the configuration of the product, which is made in accordance with the document «DCN Communication System. -
Page 23: Repair
User Manual 4 REPAIR No scheduled repair work is provided for DCN-15A. Unscheduled repair shall be performed by manufacturer at the request of the User. The place, time, procedure and cost of the work shall be agreed with the manufactur- er in advance. -
Page 24: Storage
DCN-15A ANALOGUE INTERFACE MODULE User Manual 5 STORAGE The product should be stored in the manufacturer's individual packaging in heated and ventilated warehouses or air-conditioned storage facilities with a temperature range from +5° to +40 °C. No aggressive impurities (vapour of acids, alkalis) are allowed in the air of the prod- uct storage room. -
Page 25: Transportation
DCN-15A ANALOGUE INTERFACE MODULE User Manual 6 TRANSPORTATION The product shall be transported in customer package as a packaging unit by road, river, railway and air transport (expect unsealed compartments), with compliance with the following conditions: − absence of direct ingress of atmospheric precipitation, water splashes, solar UV radiation, dust, sand, aerosols;... -
Page 26: Disposal
DCN-15A ANALOGUE INTERFACE MODULE User Manual 7 DISPOSAL The product is not to be disposed together with household waste and should be de- livered to a specialized center for the disposal of electronic products. The operating organ- ization must take full responsibility for disposing of the product. -
Page 27: Appendix A (Reference) Product Connection
Weight of the cable is (0,50 ± 0,05) kg. Figure A.1 – DCN-15A connection cable Cables are connected to the sockets on the rear wall of DCN-15A by means of XR1 plugs of CENC-36M type, and from the other side the printed circuit board of the cables with terminal blocks, which has guides for fixing to the DIN-rail 35 / 7.5, is mounted to the... - Page 28 DCN-15A ANALOGUE INTERFACE MODULE User Manual Table A.1 – Purpose of the contacts of the cable terminal blocks Terminal Contact Identification of circuits block number Line AB 1-8 Line AB 9-15 + E1 CTRL Line 1-30 CTRL Line 31-60 А1 А9...
- Page 29 DIP-switches SW1…SW8 are designed for closing lines Li and CTi. When DISi lines are used, the corresponding DIP-switches should be in position «OFF2». A.2 An example of connection to DCN-15A of analogue call station type WFA manu- factured by «Neumann Elektronik» is illustrated at Figure A.2.
- Page 30 A.3 An example of a circuit construction for a single-channel zonal alarm system with up to eight zones using DCN-15A is illustrated at Figure A.3. Figure A.3 – Construction of zonal alarm system Note – This diagram is an example of the zonal alarm system construction, but other switching alternatives are possible –...
- Page 31 © Armtel...
- Page 32 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: Russia, 192012, Saint Petersburg, Zaporozhskaya str., 12 building 1, office 1/2 TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
